Coxreels PC10L-3016 Compact Efficient Heavy Duty Power Cord Reel | PC10 Series | 300 Volts | 30' Cord Length | 25 Amps | Less Cord

When an installation calls for a compact retractable reel but the electrical cord and cord-end device need to be supplied separately, the Coxreels PC10L-3016 provides the PC10 Series reel platform in a less-cord configuration. This PC10 Series spring rewind power cord reel is built for 30 ft cord capacity with 16/3 AWG cord size compatibility and a 25 amp rating, giving installers a space-saving reel body for custom indoor electrical cord management.

The PC10L-3016 is supplied less cord and less accessory, meaning the buyer or installer must provide the compatible electrical cord, plug, receptacle, and final cord-end termination. Its spring rewind mechanism retracts the cord after use, while the CoxComposite ratchet hub secures the cord at the desired working length. A continuous-radius CoxComposite grommet helps guide the cord during payout and rewind, and the external CPC powder coated steel component cover allows access for routine slip ring maintenance.

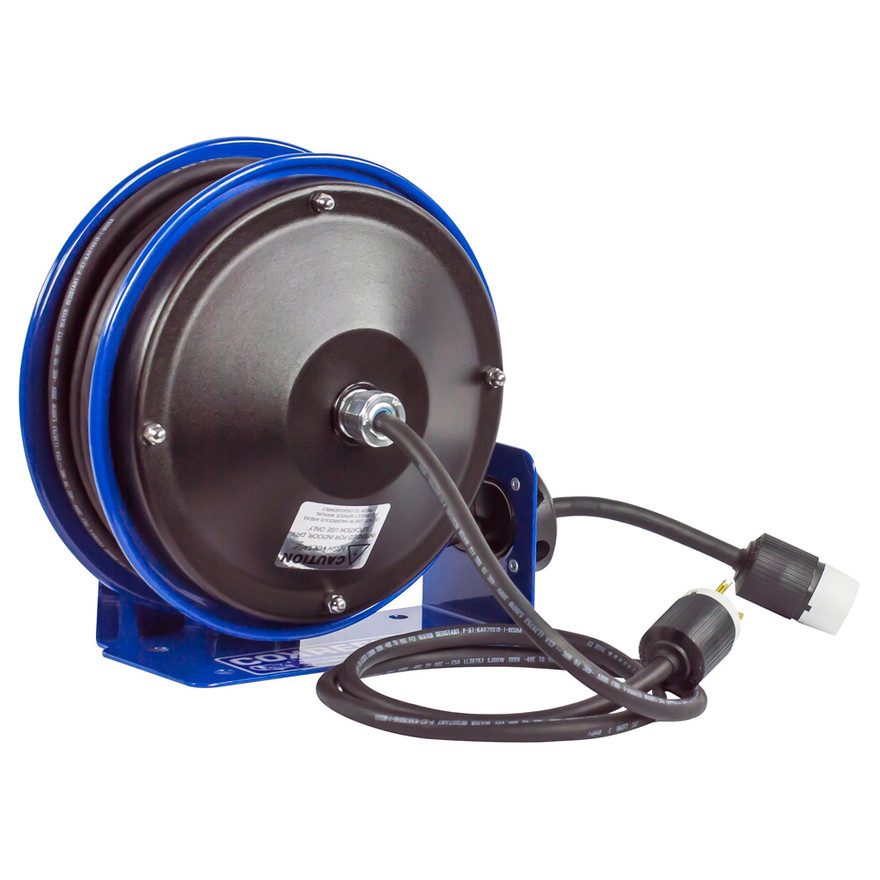

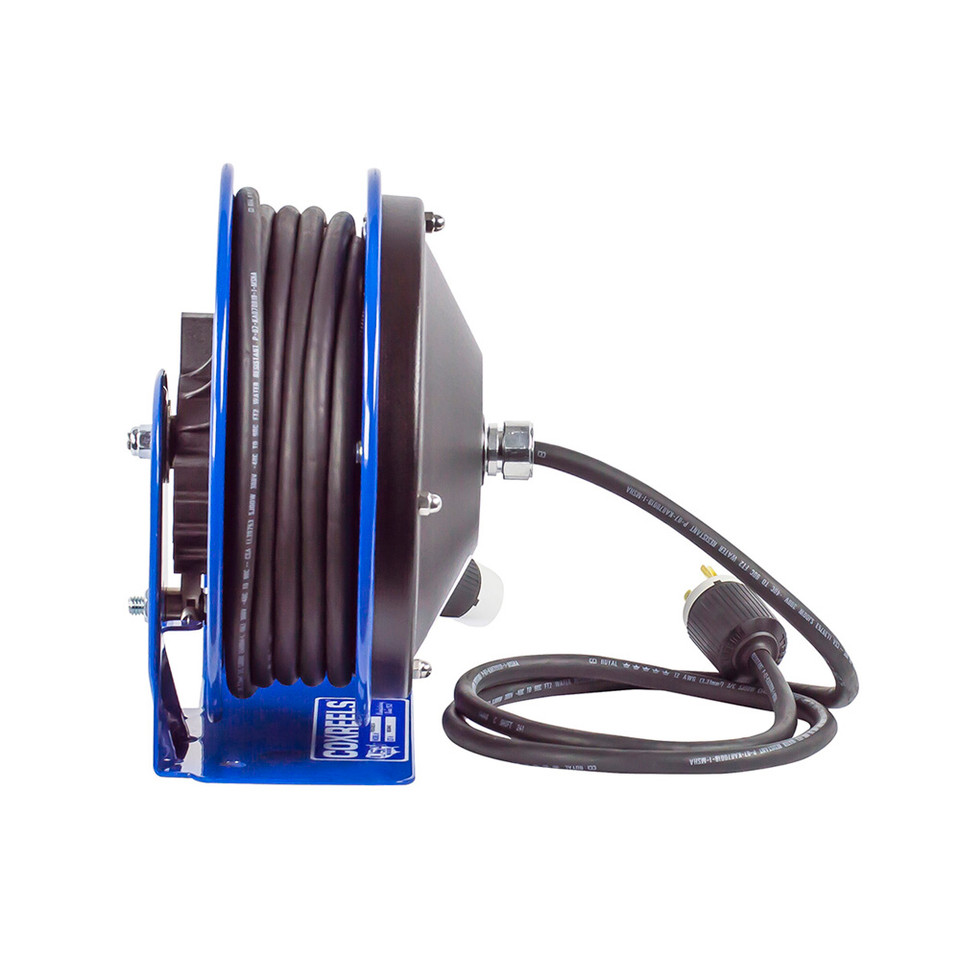

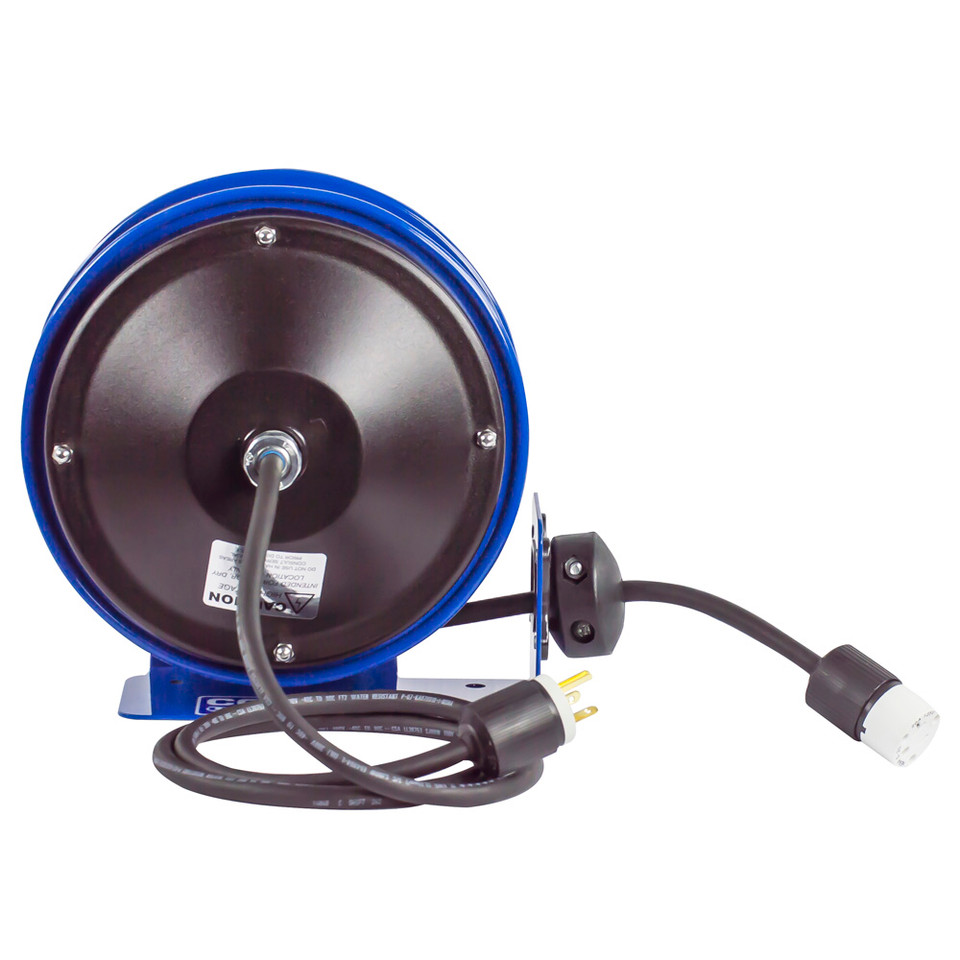

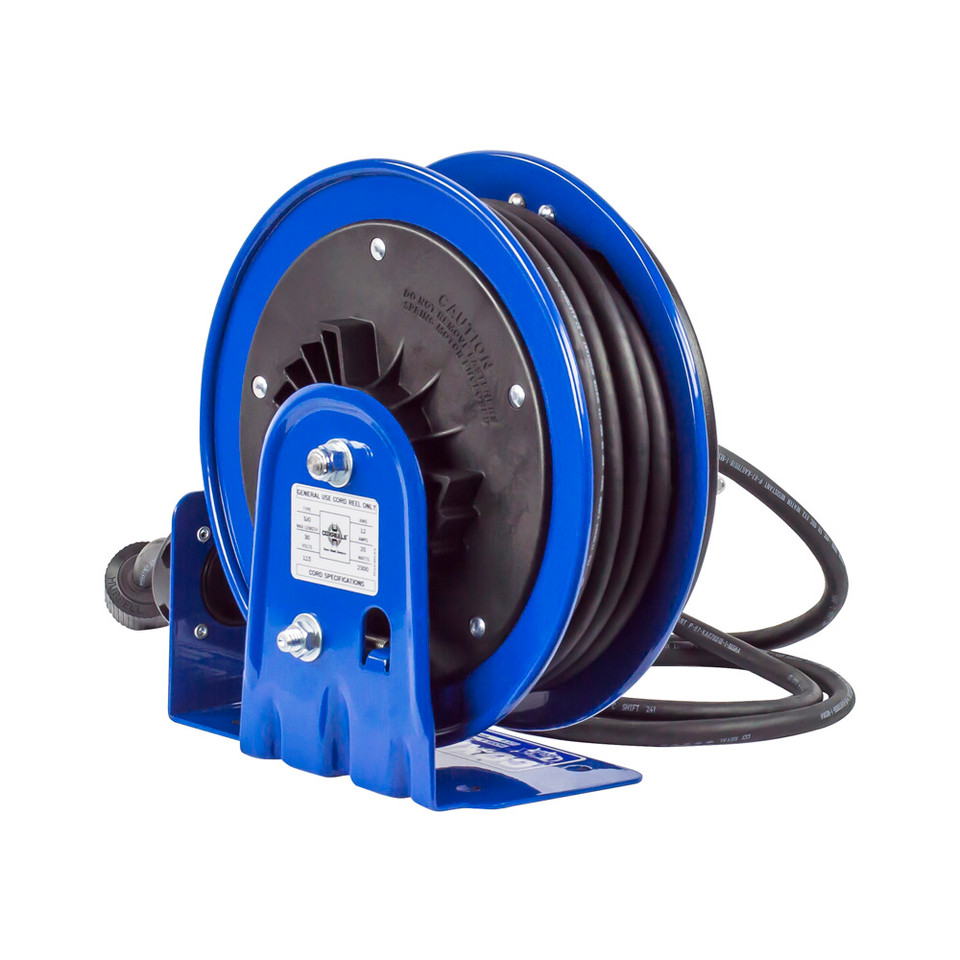

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any electrical cord, receptacle, plug, or cord-end accessory. Please note this before ordering.

Type: Spring Rewind Power Cord Reel | Series: PC10 Series | Model: PC10L-3016 | Configuration: Less Cord, Less Accessory | Cord Included: No | Accessory Included: No | Cord Capacity: 30 ft | Cord Size: 16/3 AWG | Voltage: 300 V | Amperage: 25 A | Approx. Weight: 11 lbs | Use: Indoor Use Only

Features:

• Less-cord, less-accessory configuration lets the installer choose the proper electrical cord, plug, receptacle, or cord-end termination for the job.
• Compact spring driven reel body helps manage electrical cord storage in indoor areas where bench, wall, floor, or vehicle space is limited.
• Built for 30 ft of 16/3 AWG cord capacity when fitted with a compatible cord supplied separately.
• Electrical current runs through a 25 amp / 600 volt rated slip ring for power transfer through the rotating reel assembly.
• External heavy gauge CPC powder coated steel component cover allows simple access for routine slip ring maintenance.
• CoxComposite grommet with continuous radius design helps prevent compatible cord from pinching or catching during payout and rewind.
• Solid one-piece 12 gauge steel base and support post provide stable mounting support.
• 1/2" solid steel axle and lubricated precision bearings support smooth reel rotation.
• Enclosed factory tuned and matched cartridge-style spring motor supports controlled cord retraction.
• Non-corrosive CoxComposite ratchet hub with self-lubricating bronze bearings secures cord at the selected working length.
• CNC robotically spun ribbed discs with rolled edges add strength and safer handling around the reel body.
• Durable proprietary CPC powder coat finish supports corrosion resistance in indoor shop and facility environments.

Made in USA:

2 Year Warranty

Applications:

• Custom indoor electrical installations where the cord, plug, and receptacle configuration must be selected separately.
• Maintenance benches and shop workstations that need compact retractable cord storage without a factory-installed cord end.
• Manufacturing plants and facility shops where electrical cord specifications must match site standards or equipment requirements.
• Automotive and fleet service areas where a compact reel body is needed for a field-finished cord reel setup.
• Workshops, MRO rooms, and utility spaces where installers prefer to supply their own compatible electrical components.
• Service, mechanic, and utility vehicles requiring a compact reel frame for onboard cord storage with a custom termination.

FAQs:

• Q: Does the Coxreels PC10L-3016 include an electrical cord?
  A: No. The PC10L-3016 is a less-cord model. The compatible cord, plug, receptacle, and cord-end accessory must be supplied separately.
• Q: What does "less accessory" mean?
  A: It means this reel does not include a factory-installed cord-end device such as a single receptacle, quad receptacle, G.F.C.I. outlet, or hand lamp. The installer selects the final termination based on the application.
• Q: How is PC10L-3016 different from PC10-3016-X?
  A: The PC10L-3016 is supplied less cord and less accessory. The PC10-3016-X is supplied with a 30 ft 16/3 cord but without a cord-end accessory.
• Q: How is PC10L-3016 different from PC10L-3012?
  A: Both are less-cord PC10 Series reels. The PC10L-3016 is built for 16/3 AWG cord capacity and is rated at 25 amps, while the PC10L-3012 is built for 12/3 AWG cord capacity and is rated at 20 amps.
• Q: Can this reel be used outdoors?
  A: The PC10 Series is specified for indoor use only. Use this reel in indoor shop, facility, service bay, bench, or vehicle applications that match the installed cord and electrical rating.
