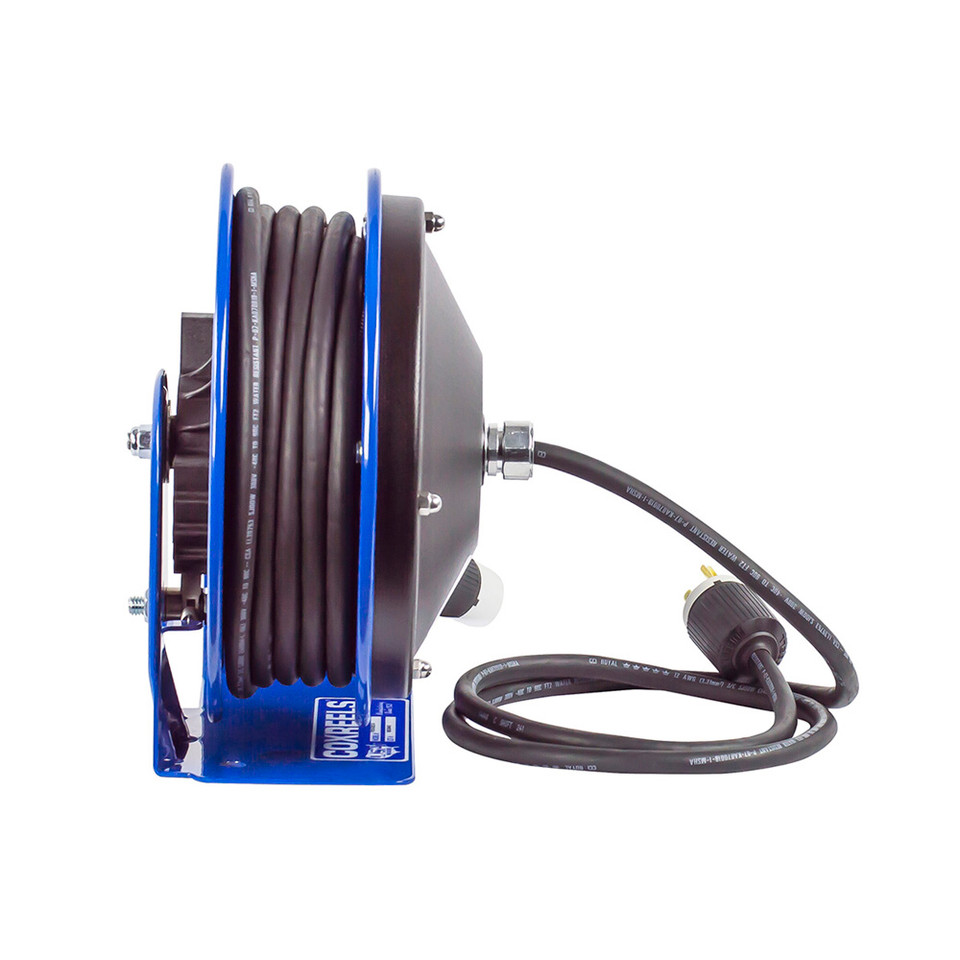

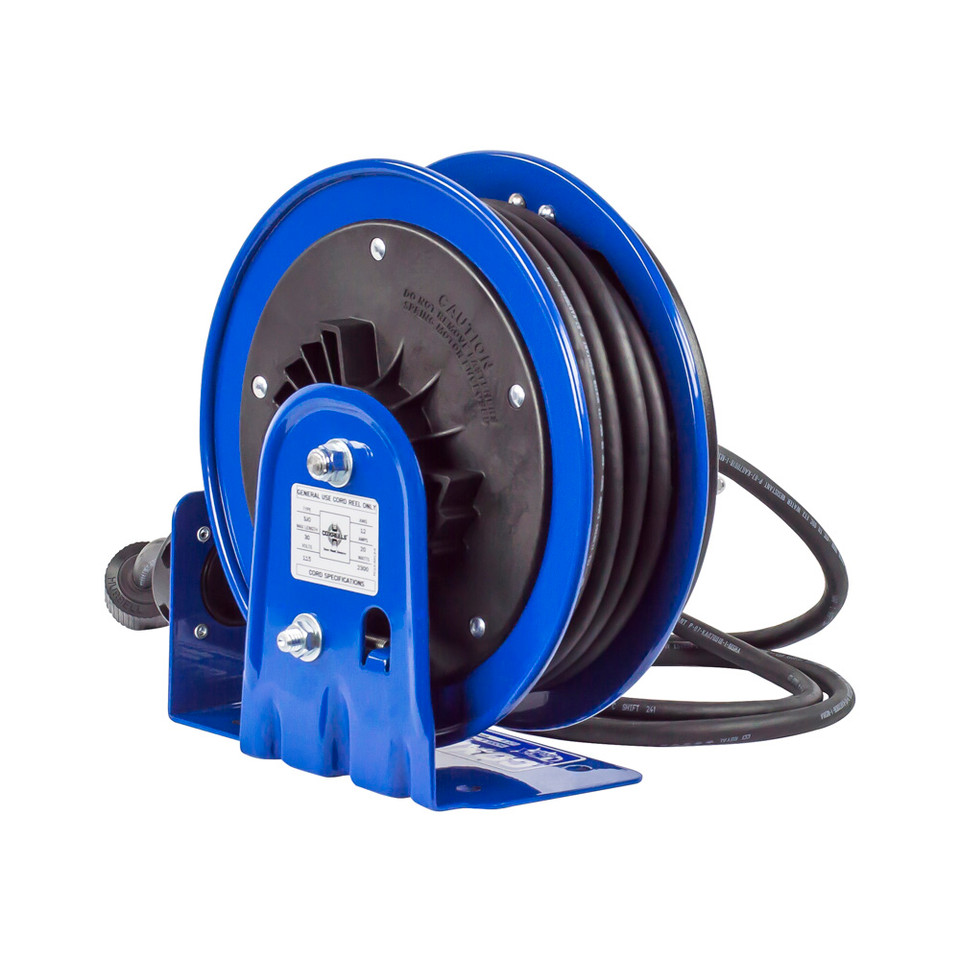

Coxreels PC10-3012-F Compact Efficient Heavy Duty Power Cord Reel | PC10 Series | 115 Volts | 30' Cord Length | 20 Amps

Where indoor work areas need retractable power with ground-fault receptacle protection at the cord end, the Coxreels PC10-3012-F compact spring rewind power cord reel keeps electrical access organized and within reach. This PC10 Series model includes a 30 ft 12/3 SJO cord and a duplex G.F.C.I. metal industrial receptacle, giving users two protected outlet points for compatible shop, service, and facility equipment. Rated for 115 volts and 20 amps, it fits indoor benches, maintenance rooms, service bays, and compact workstations where cord storage, power access, and electrical safety features are all part of the installation decision.

The PC10-3012-F uses a spring driven rewind system, meaning the cord retracts back onto the reel after use without a hand crank. The G.F.C.I. accessory, short for Ground Fault Circuit Interrupter, is intended to interrupt power when a ground-fault condition is detected. A continuous-radius CoxComposite grommet helps prevent cord pinching or snagging during payout and rewind, while the CoxComposite ratchet hub locks the cord at the selected working length. Electrical current runs through a 25 amp / 600 volt rated slip ring inside the rotating reel assembly, with an external CPC powder coated steel component cover for routine slip ring access.

Type: Spring Rewind Power Cord Reel | Series: PC10 Series | Model: PC10-3012-F | Accessory: Duplex G.F.C.I. Metal Industrial Receptacle | Cord Included: Yes | Cord Size: 12/3 AWG | Cord Length: 30 ft | Cord Type: SJO | Voltage: 115 V | Phase: 60 Hz Single Phase | Amperage: 20 A | Approx. Weight: 19 lbs | Use: Indoor Use Only

Features:

• Compact spring driven cord reel helps organize electrical cords in indoor work areas where floor, wall, bench, or vehicle space is limited.
• 30 ft 12/3 SJO cord supports compatible 115 volt, 20 amp electrical applications in shops, facilities, and service environments.
• Duplex G.F.C.I. metal industrial receptacle provides two protected cord-end outlet points for compatible plug-in equipment.
• External heavy gauge CPC powder coated steel component cover allows simple access for routine slip ring maintenance.
• Electrical current runs through a 25 amp / 600 volt rated slip ring for power transfer through the rotating reel assembly.
• Includes 5 ft lead cable and grounding plug for connection to the power source.
• CoxComposite grommet with continuous radius design helps prevent the cord from pinching or catching during operation.
• Solid one-piece 12 gauge steel base and support post provide stable mounting support.
• 1/2" solid steel axle and lubricated precision bearings support smooth reel rotation during payout and rewind.
• Enclosed factory tuned and matched cartridge-style spring motor supports controlled cord retraction.
• Non-corrosive CoxComposite ratchet hub with self-lubricating bronze bearings secures the cord at the desired working length.
• Rolled edges and ribbed discs provide added strength and safer handling around the reel body.

Made in USA:

2 Year Warranty

Applications:

• Maintenance benches and repair stations where a retractable G.F.C.I. receptacle keeps protected power access close to the task.
• Automotive and fleet service bays powering compatible inspection lights, chargers, corded tools, and diagnostic equipment.
• Manufacturing plants and facilities needing localized 115 volt cord access near assembly, test, inspection, or repair areas.
• Workshops and MRO rooms where retractable cord storage helps reduce loose cord clutter between jobs.
• Bench mount, wall mount, and compact floor mount installations where a smaller reel body is easier to position than a larger cord reel.
• Service, mechanic, and utility vehicles requiring onboard storage for a 30 ft retractable electrical cord in indoor-use applications.

FAQs:

• Q: What accessory comes on the Coxreels PC10-3012-F?
  A: The PC10-3012-F is supplied with a duplex G.F.C.I. metal industrial receptacle. This gives the reel two cord-end outlet points with ground-fault circuit interrupter functionality.
• Q: Does this model include the 30 ft cord?
  A: Yes. This model includes a 30 ft 12/3 SJO cord, plus a 5 ft lead cable and grounding plug. It is not a less-cord reel.
• Q: What is the difference between PC10-3012-F and PC10-3012-A?
  A: Both models use a 30 ft 12/3 SJO cord and are rated for 115 volts and 20 amps. The PC10-3012-F includes a duplex G.F.C.I. metal industrial receptacle, while the PC10-3012-A includes a single industrial receptacle.
• Q: Can the PC10-3012-F be used outdoors?
  A: The PC10 Series is specified for indoor use only. Use this reel in indoor shop, service bay, facility, bench, or vehicle applications that match the reel's electrical rating and installation requirements.
• Q: What does the ratchet hub do on this cord reel?
  A: The ratchet hub locks the cord at the working length selected by the user. When released, the spring rewind mechanism retracts the cord back onto the reel for storage.
