Coxreels PC10L-3012 Compact Efficient Heavy Duty Power Cord Reel | PC10 Series | 300 Volts | 30' Cord Length | 25 Amps | Less Cord

When you need a compact reel body for a field-supplied electrical cord, the Coxreels PC10L-3012 gives installers the PC10 Series spring rewind platform without a factory-installed cord or cord-end accessory. This PC10 Series reel is built for a 30 ft cord capacity with 12/3 AWG cord size compatibility and a 25 amp rating, making it a practical choice for custom indoor cord reel installations where the cord, plug, and outlet configuration must be selected separately.

The PC10L-3012 is a less-cord, less-accessory configuration, meaning it is supplied as the reel assembly only for applications where the buyer or installer will provide the compatible electrical cord and cord-end termination. Its spring rewind mechanism retracts the cord after use, while the CoxComposite ratchet hub locks the cord at the desired working length. A continuous-radius CoxComposite grommet helps guide the cord smoothly during payout and rewind, and the external CPC powder coated steel component cover allows access for routine slip ring maintenance.

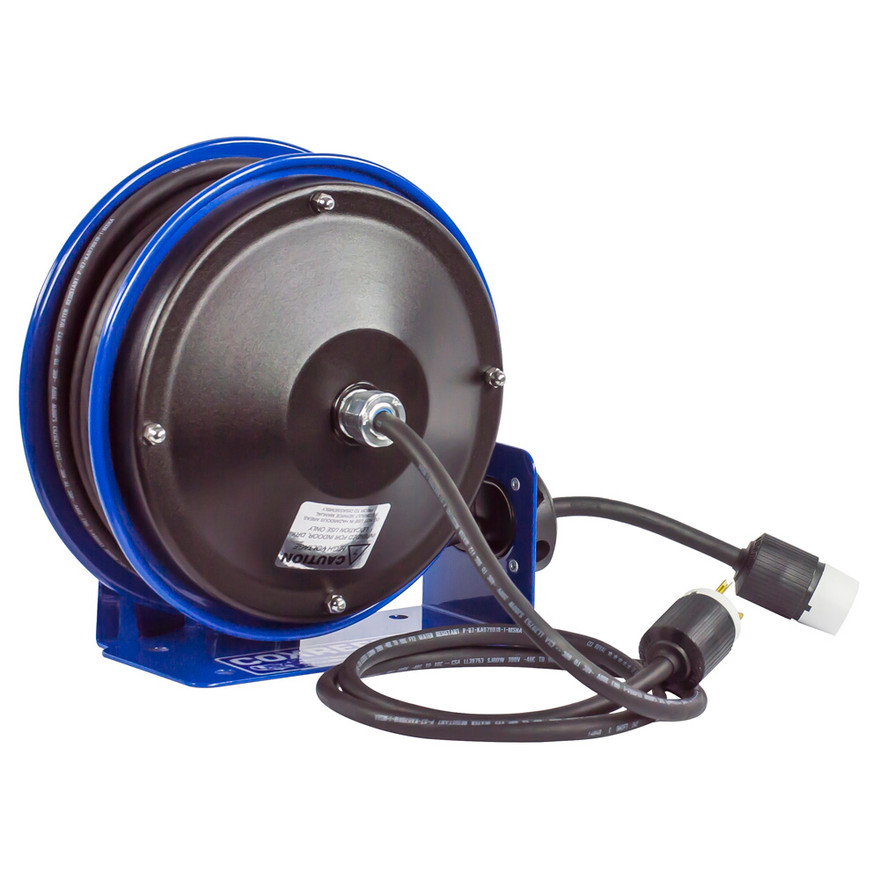

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any electrical cord, receptacle, plug, or cord-end accessory. Please note this before ordering.

Type: Spring Rewind Power Cord Reel | Series: PC10 Series | Model: PC10L-3012 | Configuration: Less Cord, Less Accessory | Cord Included: No | Accessory Included: No | Cord Capacity: 30 ft | Cord Size: 12/3 AWG | Voltage: 300 V | Amperage: 25 A | Approx. Weight: 11 lbs | Use: Indoor Use Only

Features:

• Less-cord, less-accessory configuration lets the installer choose the proper electrical cord and cord-end termination for the application.
• Compact spring driven reel body supports organized cord storage in indoor areas where wall, bench, floor, or vehicle space is limited.
• Built for 30 ft of 12/3 AWG cord capacity when fitted with a compatible cord supplied separately.
• Electrical current runs through a 25 amp / 600 volt rated slip ring for power transfer through the rotating reel assembly.
• External heavy gauge CPC powder coated steel component cover allows simple access for routine slip ring maintenance.
• CoxComposite grommet with continuous radius design helps prevent compatible cord from pinching or catching during payout and rewind.
• Solid one-piece 12 gauge steel base and support post provide stable mounting support.
• 1/2" solid steel axle and lubricated precision bearings support smooth reel rotation.
• Enclosed factory tuned and matched cartridge-style spring motor supports controlled cord retraction.
• Non-corrosive CoxComposite ratchet hub with self-lubricating bronze bearings secures the cord at the selected working length.
• CNC robotically spun ribbed discs with rolled edges add strength and safer handling around the reel body.

Made in USA:

2 Year Warranty

Applications:

• Custom indoor electrical installations where the installer supplies the cord, plug, and outlet configuration separately.
• Maintenance benches and workstations that need compact retractable cord storage without a factory-installed receptacle.
• Manufacturing plants and facility shops where electrical cord specifications must match site requirements or existing standards.
• Automotive and fleet service areas where a compact reel body is needed for a custom cord reel setup.
• Workshops, MRO rooms, and utility spaces where installers prefer to finish the reel with their own compatible electrical components.
• Service, mechanic, and utility vehicles requiring a compact reel frame for onboard cord storage with field-selected cord and termination.

FAQs:

• Q: Does the Coxreels PC10L-3012 include the electrical cord?
  A: No. The PC10L-3012 is a less-cord model. The compatible electrical cord, plug, receptacle, and cord-end accessory must be supplied separately.
• Q: What does "less accessory" mean?
  A: It means the reel is not supplied with a factory-installed cord-end device such as a single receptacle, quad receptacle, G.F.C.I. outlet, or hand lamp. This allows the installer to select the correct termination for the application.
• Q: How is PC10L-3012 different from PC10-3012-X?
  A: The PC10L-3012 is supplied less cord and less accessory. The PC10-3012-X is supplied with a 30 ft 12/3 cord but without a cord-end accessory.
• Q: Can this reel be used outdoors?
  A: The PC10 Series is specified for indoor use only. Use this reel in indoor shop, facility, service bay, bench, or vehicle applications that match the installed cord and electrical rating.
• Q: Why choose a less-cord reel instead of a cord-included model?
  A: Choose a less-cord reel when the installation requires a specific cord type, plug style, receptacle, or termination that is not supplied as a standard factory configuration. It gives the installer more control over the final electrical setup.
