Coxreels PC10-3012-B Compact Efficient Heavy Duty Power Cord Reel | PC10 Series | 115 Volts | 30' Cord Length | 20 Amps

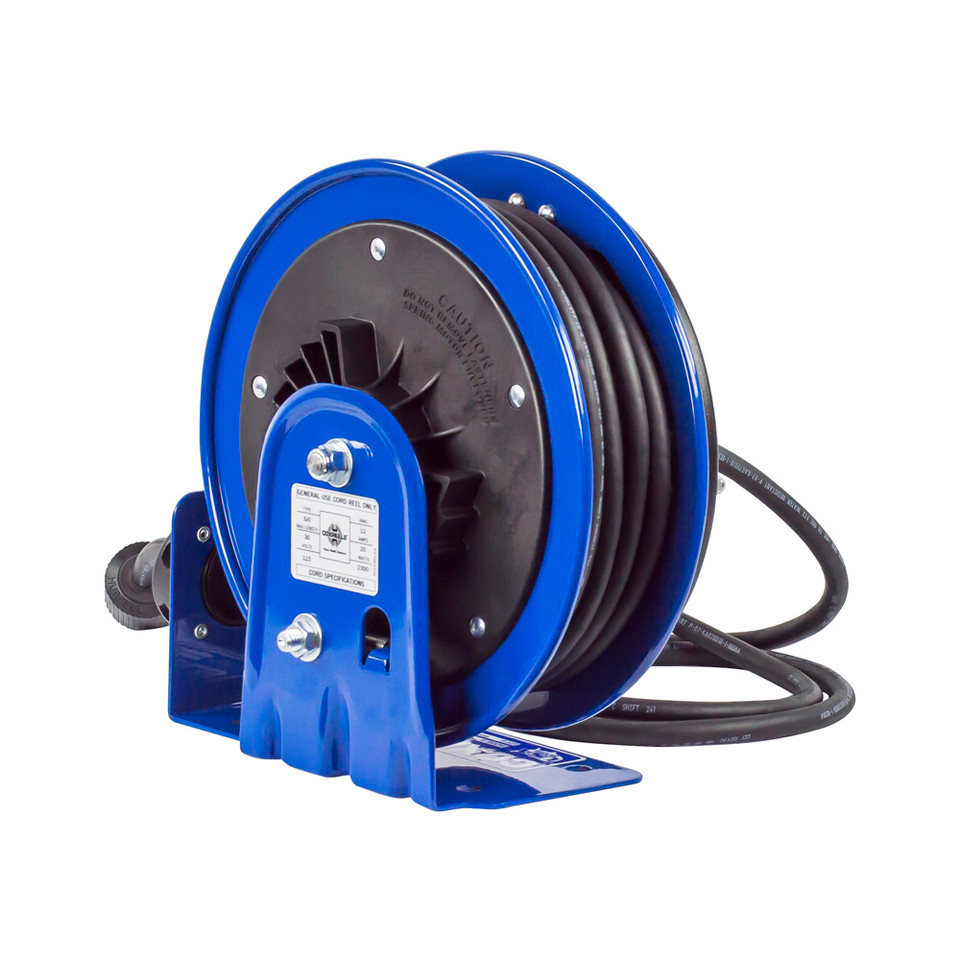

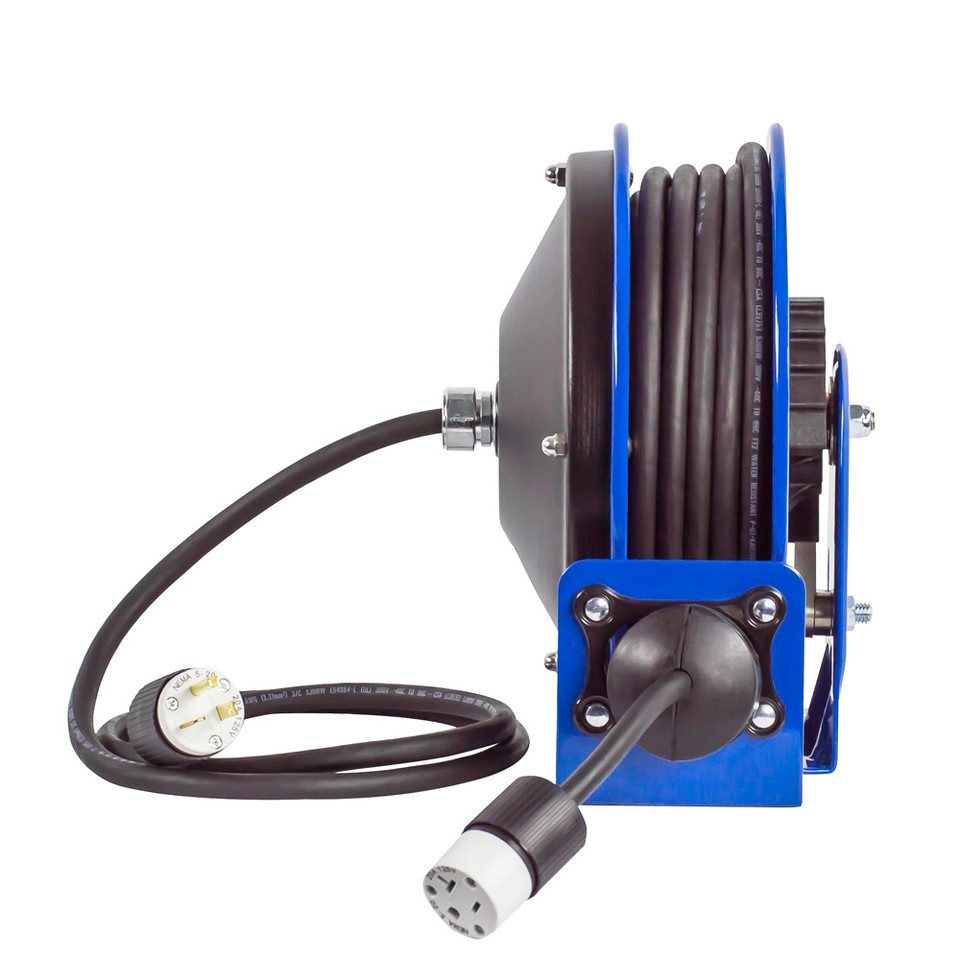

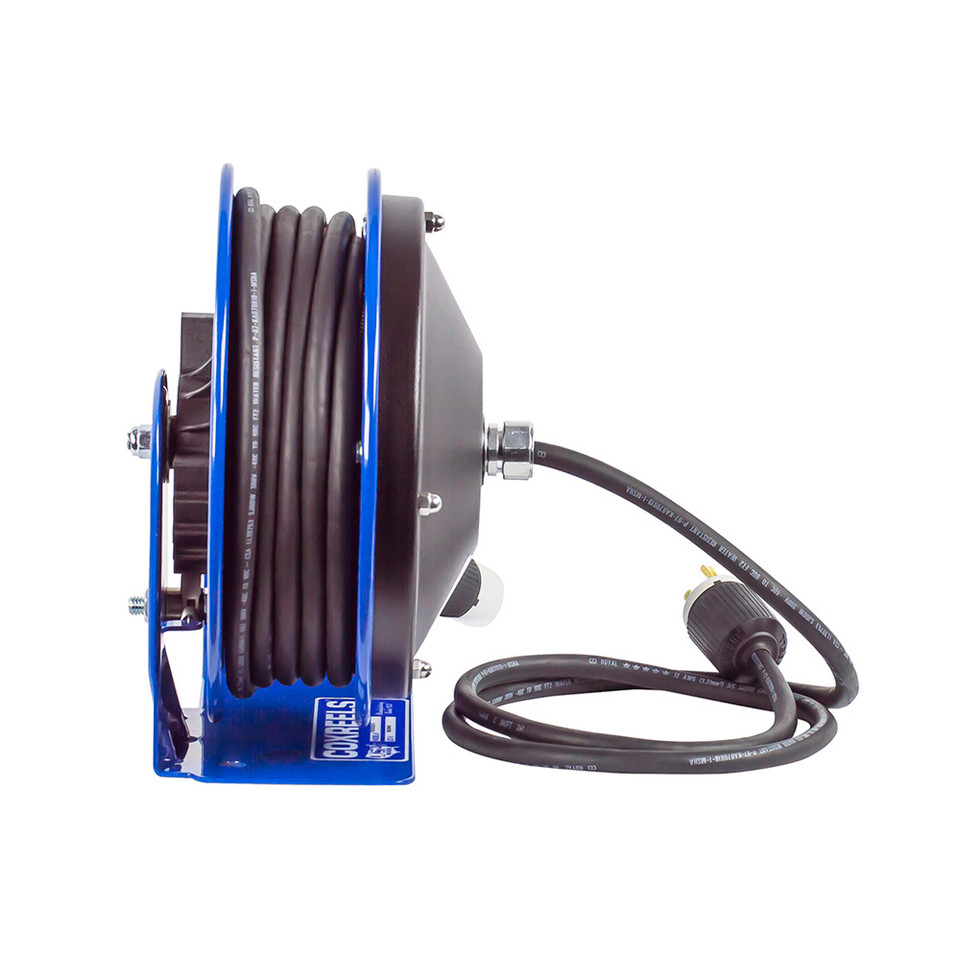

When floor space and cord control matter, the Coxreels PC10-3012-B compact spring rewind power cord reel keeps electrical service within reach while helping reduce loose cord clutter around benches, workstations, service bays, and mobile equipment. This PC10 Series reel includes a 30 ft 12/3 SJO cord and a quad 4-plug industrial receptacle, giving users multiple outlet points from one retractable reel. Rated for 115 volts and 20 amps, it is suited for indoor power-tool and workstation use where a compact footprint is more practical than a larger cord reel.

The PC10-3012-B uses a spring driven rewind system, meaning the cord retracts back onto the reel after use without a hand crank. A CoxComposite grommet with a continuous radius guide helps prevent cord pinching or catching during extension and retraction, while the CoxComposite™ ratchet hub secures the cord at the desired working length. Its 25 amp / 600 volt rated slip ring transfers electrical current through the rotating reel assembly, while the heavy gauge CPC powder coated steel cover allows access for routine slip ring maintenance.

Type: Spring Rewind Power Cord Reel | Series: PC10 Series | Model: PC10-3012-B | Cord Included: Yes | Cord Size: 12/3 AWG | Cord Length: 30 ft | Cord Type: SJO | Accessory: Quad 4 Plug Industrial Receptacle | Voltage: 115 V | Phase: 60 Hz Single Phase | Amperage: 20 A | Approx. Weight: 18 lbs | Use: Indoor Use Only

Features:

• Compact spring driven cord reel helps keep power cords organized in areas where floor, wall, or bench space is limited.
• 30 ft 12/3 SJO cord provides hard-service electrical cord construction with an oil-resistant jacket for shop and facility environments.
• Quad 4 plug industrial receptacle gives users multiple plug-in points at the end of the retractable cord.
• Electrical current runs through a 25 amp / 600 volt rated slip ring for power transfer through the reel assembly.
• External heavy gauge CPC powder coated steel component cover supports simple routine slip ring maintenance.
• CoxComposite grommet with continuous radius design helps prevent cord pinching or snagging during operation.
• Solid one-piece 12 gauge steel base and support post provide stable reel mounting.
• 1/2" solid steel axle and lubricated precision bearings support smooth reel rotation.
• Enclosed factory tuned and matched cartridge-style spring motor supports controlled cord rewind.
• Non-corrosive CoxComposite ratchet hub with self-lubricating bronze bearings secures the cord at the selected length.
• CNC robotically spun, ribbed discs with rolled edges add strength, safety, and durability.

Made in USA:

2 Year Warranty

Applications:

• Power tool workstations where retractable cord storage keeps commonly used tools closer to the job.
• Manufacturing plants and facilities needing compact indoor cord management around benches, machines, and assembly areas.
• Automotive and fleet service centers powering corded tools, chargers, lights, and inspection equipment in service bays.
• Workshops and maintenance rooms where a spring rewind reel helps reduce cord tangles between uses.
• Bench mount installations for localized power access without leaving extension cords stretched across the floor.
• Service, mechanic, and utility vehicles requiring compact reel storage for onboard electrical cord organization.

FAQs:

• Q: Does the Coxreels PC10-3012-B include the cord?
  A: Yes. This model includes a 30 ft 12/3 SJO cord, a 5 ft lead cable, and a grounding plug. It is not a less-cord reel.
• Q: What type of receptacle is included on this model?
  A: The PC10-3012-B includes a quad 4 plug industrial receptacle, giving the user four plug-in points at the cord end.
• Q: Can this power cord reel be used outdoors?
  A: The PC10 Series catalog specifies indoor use only. Use this reel in indoor shop, bench, service bay, facility, or vehicle applications where the electrical rating and environment match the reel.
• Q: What does SJO cord mean?
  A: SJO refers to a hard-service cord type with thermoset insulated conductors and an oil-resistant jacket. It is commonly used for shop and industrial cord applications where flexibility and durability are important.
• Q: How does the ratchet hub help during use?
  A: The ratchet hub lets the user pull out the cord and lock it at the desired working length. This helps keep the cord positioned where it is needed rather than constantly pulling it back toward the reel.
