Coxreels PC10-3012-A Compact Efficient Heavy Duty Power Cord Reel | PC10 Series | 115 Volts | 30' Cord Length | 20 Amps

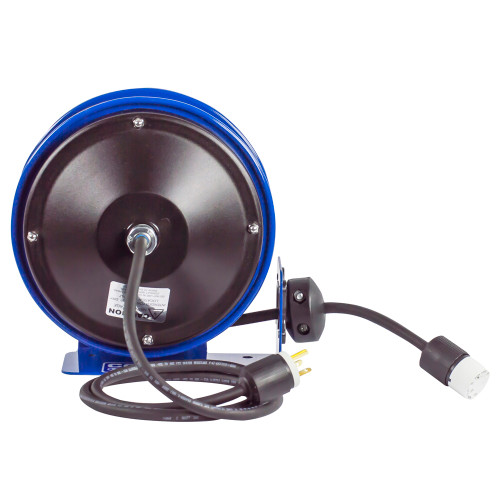

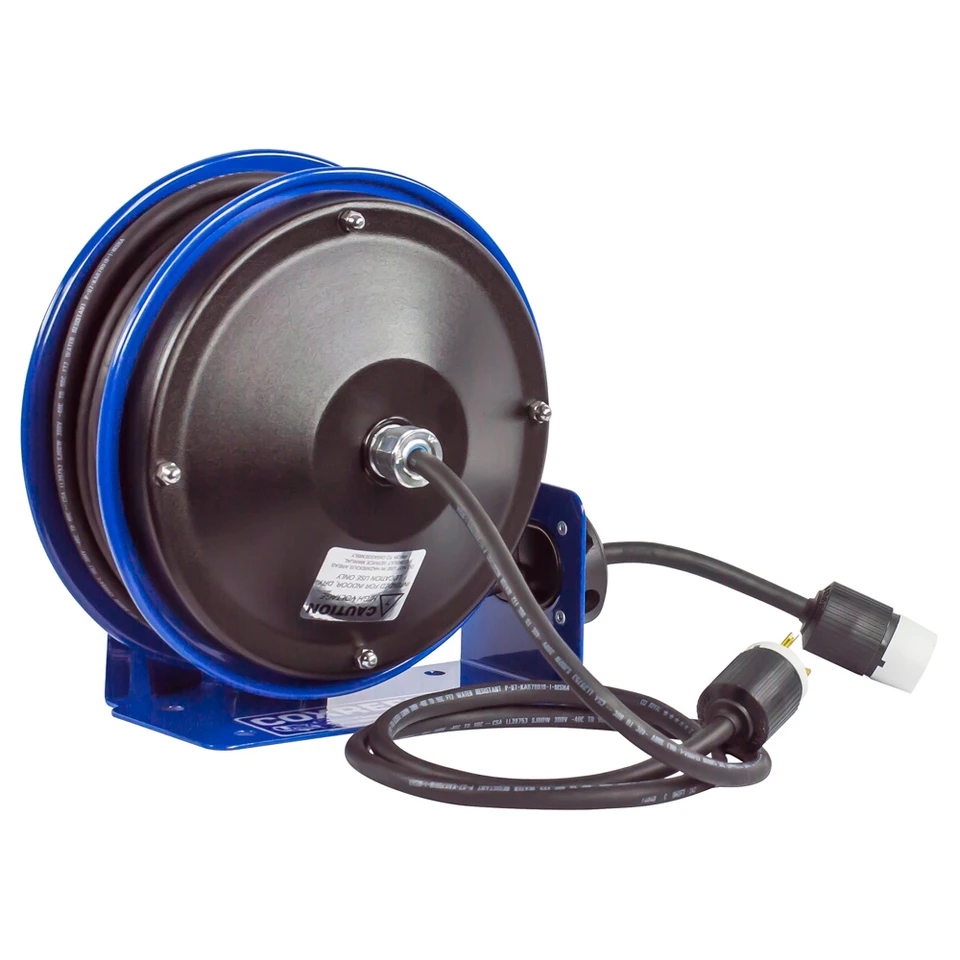

When a workstation needs retractable power without the clutter of loose extension cords, the Coxreels PC10-3012-A compact spring rewind power cord reel keeps electrical access organized and close to the job. This PC10 Series reel includes a 30 ft 12/3 SJO cord and a single industrial receptacle, giving users one durable plug-in point for compatible 115 volt equipment. Rated for 115 volts and 20 amps, it is well suited for indoor benches, service bays, maintenance areas, and compact workspaces where cord storage and fast access both matter.

The PC10-3012-A uses a spring driven rewind system, meaning the cord retracts back onto the reel after use without a hand crank. A CoxComposite grommet with a continuous radius guide helps prevent cord pinching or catching during payout and rewind, while the CoxComposite ratchet hub secures the cord at the selected working length. The 25 amp / 600 volt rated slip ring transfers electrical current through the rotating reel assembly, and the external heavy gauge CPC powder coated steel component cover supports routine slip ring access.

Type: Spring Rewind Power Cord Reel | Series: PC10 Series | Model: PC10-3012-A | Accessory: Single Industrial Receptacle | Cord Included: Yes | Cord Size: 12/3 AWG | Cord Length: 30 ft | Cord Type: SJO | Voltage: 115 V | Phase: 60 Hz Single Phase | Amperage: 20 A | Approx. Weight: 17 lbs | Use: Indoor Use Only

Features:

• Compact spring driven cord reel helps keep electrical cords organized in indoor work areas where floor, bench, wall, or vehicle space is limited.
• 30 ft 12/3 SJO cord supports 20 amp, 115 volt service for compatible shop, facility, and commercial power applications.
• Single industrial receptacle provides one durable cord-end outlet for plug-in tools, lights, chargers, and equipment within the reel's electrical rating.
• Electrical current runs through a 25 amp / 600 volt rated slip ring for power transfer through the rotating reel assembly.
• External heavy gauge CPC powder coated steel component cover allows simple access for routine slip ring maintenance.
• CoxComposite grommet with continuous radius design helps prevent the cord from pinching or catching during operation.
• Solid one-piece 12 gauge steel base and support post provide stable mounting support.
• 1/2" solid steel axle and lubricated precision bearings support smooth reel rotation.
• Enclosed factory tuned and matched cartridge-style spring motor supports controlled cord rewind.
• Non-corrosive CoxComposite ratchet hub with self-lubricating bronze bearings secures the cord at the desired length.
• Robotically spun ribbed discs with rolled edges add strength and safer handling around the reel edges.

Made in USA:

2 Year Warranty

Applications:

• Maintenance benches and tool stations where a retractable cord keeps power close without leaving excess cord on the work surface.
• Automotive and fleet service bays powering corded tools, inspection lights, battery chargers, and diagnostic equipment within the reel's rating.
• Manufacturing plants and facilities where localized 115 volt cord access is needed near assembly, repair, or inspection areas.
• Workshops and MRO rooms where organized cord storage helps reduce tangles between jobs.
• Bench mount and wall mount installations where a compact reel body is easier to place than a larger power cord reel.
• Service, mechanic, and utility vehicles requiring compact onboard storage for a 30 ft retractable electrical cord.

FAQs:

• Q: Does the Coxreels PC10-3012-A include the cord?
  A: Yes. This model includes a 30 ft 12/3 SJO cord, along with a 5 ft lead cable and grounding plug. It is not a less-cord reel.
• Q: What accessory is supplied on the PC10-3012-A?
  A: The PC10-3012-A is supplied with a single industrial receptacle. Choose this model when one cord-end outlet is preferred instead of a quad receptacle, GFCI receptacle, hand lamp, or no-accessory configuration.
• Q: Can this cord reel be used outdoors?
  A: The PC10 Series is specified for indoor use only. Use this reel in indoor shop, service bay, facility, bench, or vehicle applications that match the reel's electrical rating and installation requirements.
• Q: What does the ratchet hub do?
  A: The ratchet hub allows the cord to lock at the desired working length after it is pulled out. When released, the spring rewind mechanism retracts the cord back onto the reel.
• Q: What is the difference between PC10-3012-A and PC10-3012-B?
  A: Both models use a 30 ft 12/3 SJO cord with a 115 volt, 20 amp rating. The PC10-3012-A includes a single industrial receptacle, while the PC10-3012-B includes a quad "4 plug" industrial receptacle.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
