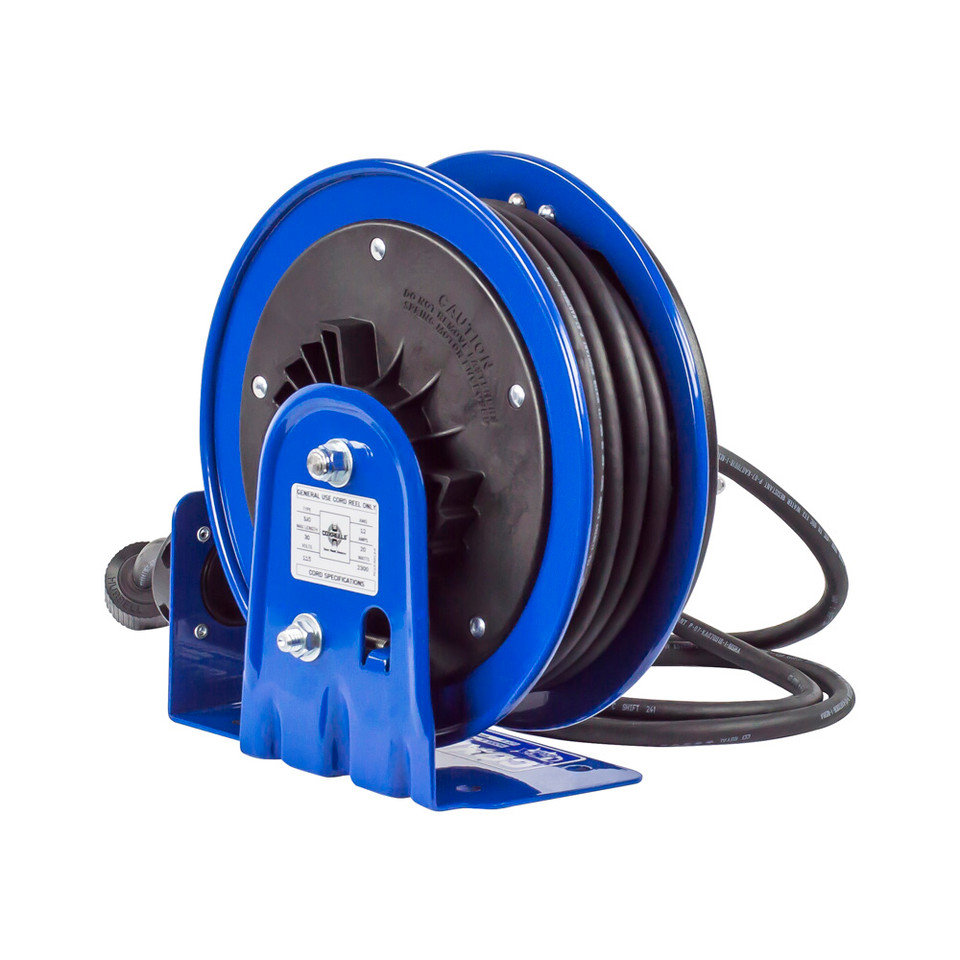

Coxreels PC10-3016-M Compact Efficient Heavy Duty Power Cord Reel | PC10 Series | 30' Cord Length | 115 Volts

The Coxreels PC10-3016-M is a compact spring rewind power cord reel from the PC10 Series, designed to provide retractable LED task-light cord storage in work areas where a smaller reel footprint is preferred. This model includes a 30 ft cord length with 16/3 SJTO cord and operates at 115 volts, making it a practical option for compatible shop, garage, service, inspection, maintenance, and workstation lighting applications.

The PC10-3016-M is supplied with a compact super-bright LED light, giving users localized illumination while keeping the light cord organized between tasks. Its compact frame helps reduce loose cable across floors, benches, and work areas, while the spring rewind mechanism retracts the cord after use for cleaner storage. The power source, installation environment, and connected light configuration must match the reel’s electrical rating before use.

Type: Compact Spring Rewind Power Cord Reel | Series: PC10 Series | Model: PC10-3016-M | Cord Included: Yes | Cord Length: 30 ft | Cord Size: 16/3 AWG | Cord Type: SJTO | Accessory: Compact Super-Bright LED Light | Volts: 115 | Electrical Rating: 60 Hz Single Phase | Rewind Type: Spring Rewind | Overall Dimensions: 7.38" W x 10.63" H x 10.5" L | Mounting Pattern: 2.5" x 6" | Base: 4.63" x 8.38"

Features:

• Compact spring rewind power cord reel helps manage task-light cord storage in work areas where mounting space is limited.
• 30 ft cord length provides convenient reach for nearby benches, service bays, inspection areas, garages, and maintenance tasks.
• 16/3 SJTO cord provides flexible retractable cord handling for the supplied LED light configuration.
• Compact super-bright LED light provides localized task illumination for inspection, repair, maintenance, and service work.
• 115 volt electrical configuration supports compatible power sources when the reel and light are used within their listed rating.
• Spring rewind mechanism retracts the cord after use, helping reduce loose electrical cable across floors, benches, and walk paths.
• Compact PC10 frame helps conserve mounting space in shops, garages, service vehicles, maintenance areas, and production workstations.
• Multi-position lock ratchet mechanism secures the cord at the selected working length during use.
• Steel component cover helps protect internal reel components during normal shop and service use.
• CPC powder coat finish helps protect the reel structure in commercial, service, and industrial work environments.

Made in USA:

2 Year Warranty

Applications:

• Maintenance shops and MRO departments where compact retractable LED task lighting is needed close to the work area.
• Automotive, fleet, and equipment service bays where 30 ft of light cord reach supports nearby inspection, repair, and service work.
• Garages and small workstations where a compact LED work light helps keep electrical cord off the floor between tasks.
• Manufacturing, assembly, and repair benches that need localized lighting with controlled retractable cord storage.
• Service vehicles and mobile repair setups where compact reel size helps keep the light cord organized during transport and field work.

FAQs:

• Q: Does the Coxreels PC10-3016-M include cord?
  A: Yes. This model includes 30 ft of 16/3 SJO cord.
• Q: What accessory is included with this model?
  A: The PC10-3016-M is supplied with a compact super-bright LED light.
• Q: What does 16/3 SJO cord mean?
  A: 16/3 identifies the cord gauge and conductor count, while SJO identifies the flexible service cord type used on this power cord reel.
• Q: What does the spring rewind mechanism do?
  A: The spring rewind mechanism retracts the cord back onto the reel after use, helping keep the LED light cord stored neatly and reducing loose cable around the work area.
• Q: How is the PC10-3016-M different from the PC10-3016-H?
  A: Both models use a 30 ft cord and LED lighting. The PC10-3016-M is configured with a compact super-bright LED light, while the PC10-3016-H is configured with an industrial duty LED light.
• Q: How is the PC10-3016-M different from the PC10-3016-K?
  A: The PC10-3016-M includes a compact super-bright LED light. The PC10-3016-K includes a super-bright LED light with tool tap on handle and is rated for 13 amps.
• Q: When should I choose a 30 ft compact cord reel?
  A: Choose a 30 ft compact reel when the mounting location is close to the work area and a smaller reel body is preferred over a larger 50 ft, 75 ft, or 100 ft model.
• Q: Is this reel suitable for every 115 volt application?
  A: No. The power source, installation environment, and supplied LED light configuration must be compatible with the reel’s listed electrical rating.
