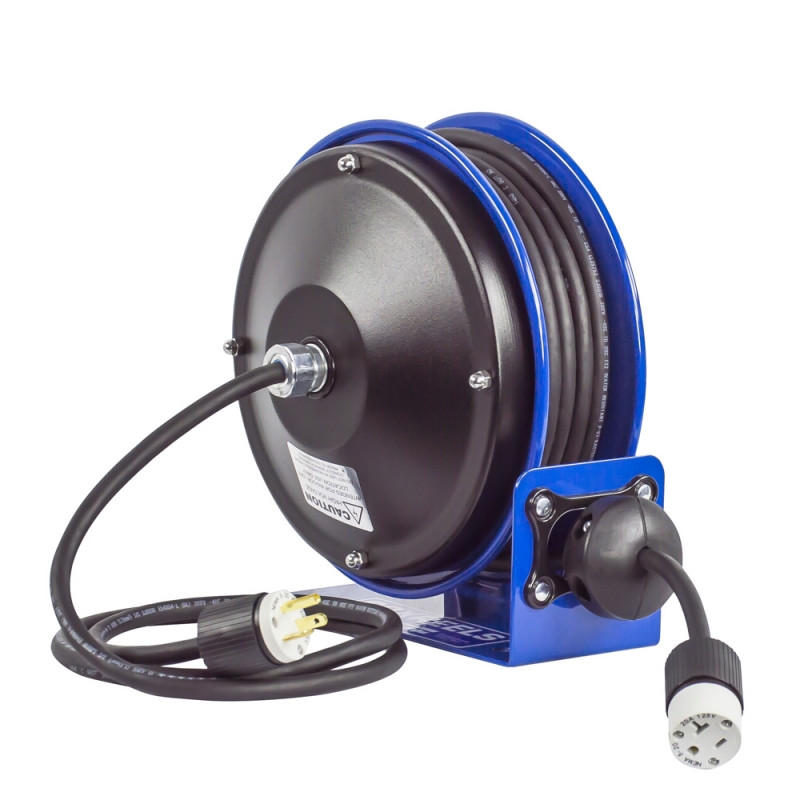

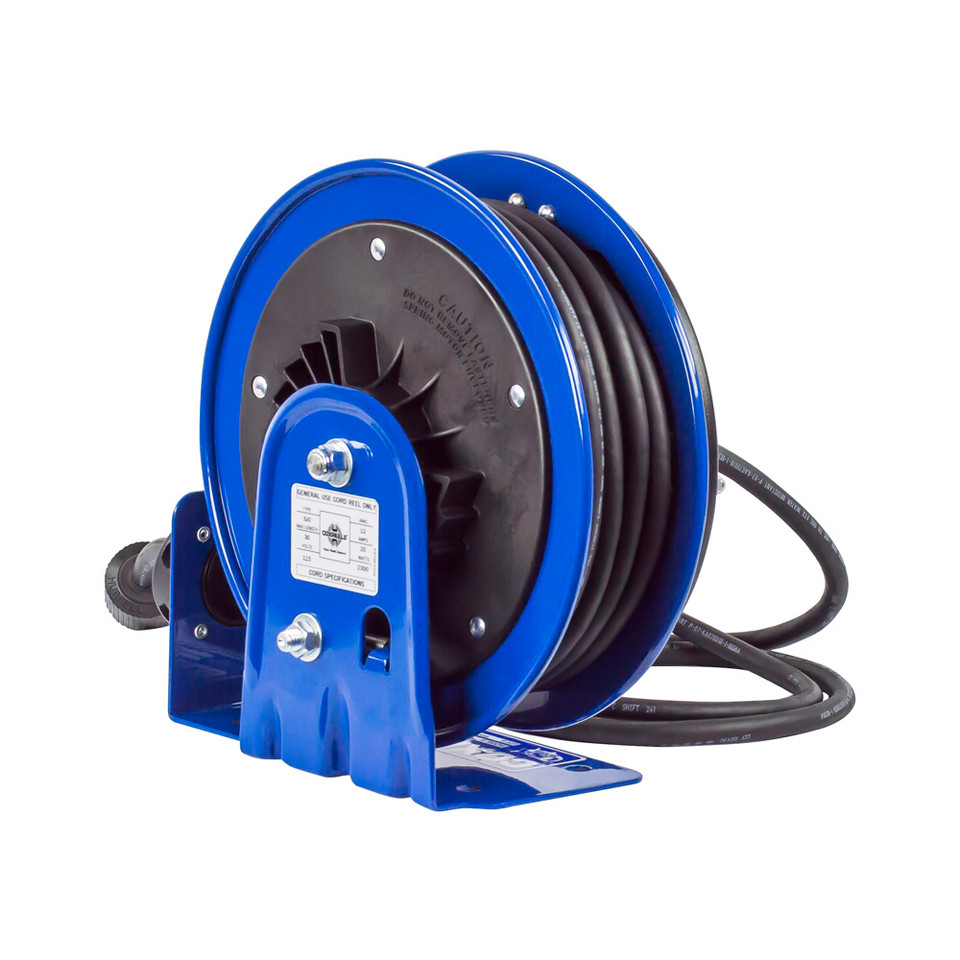

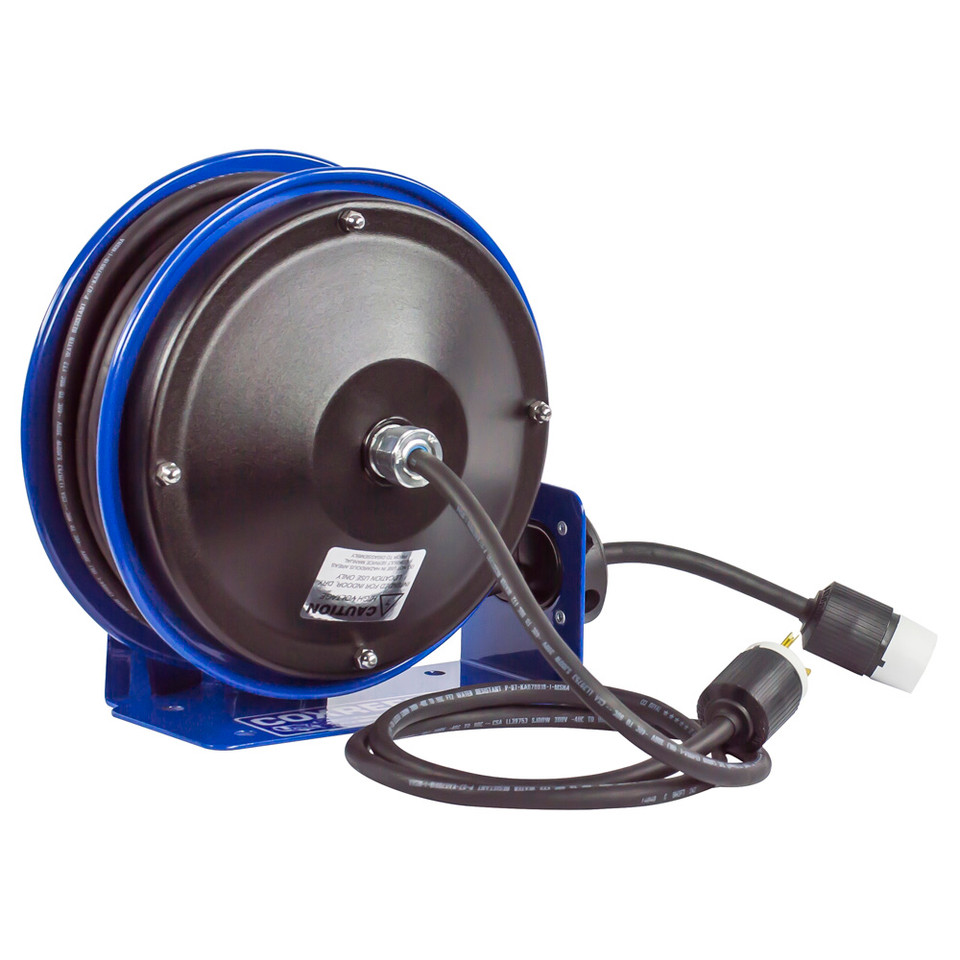

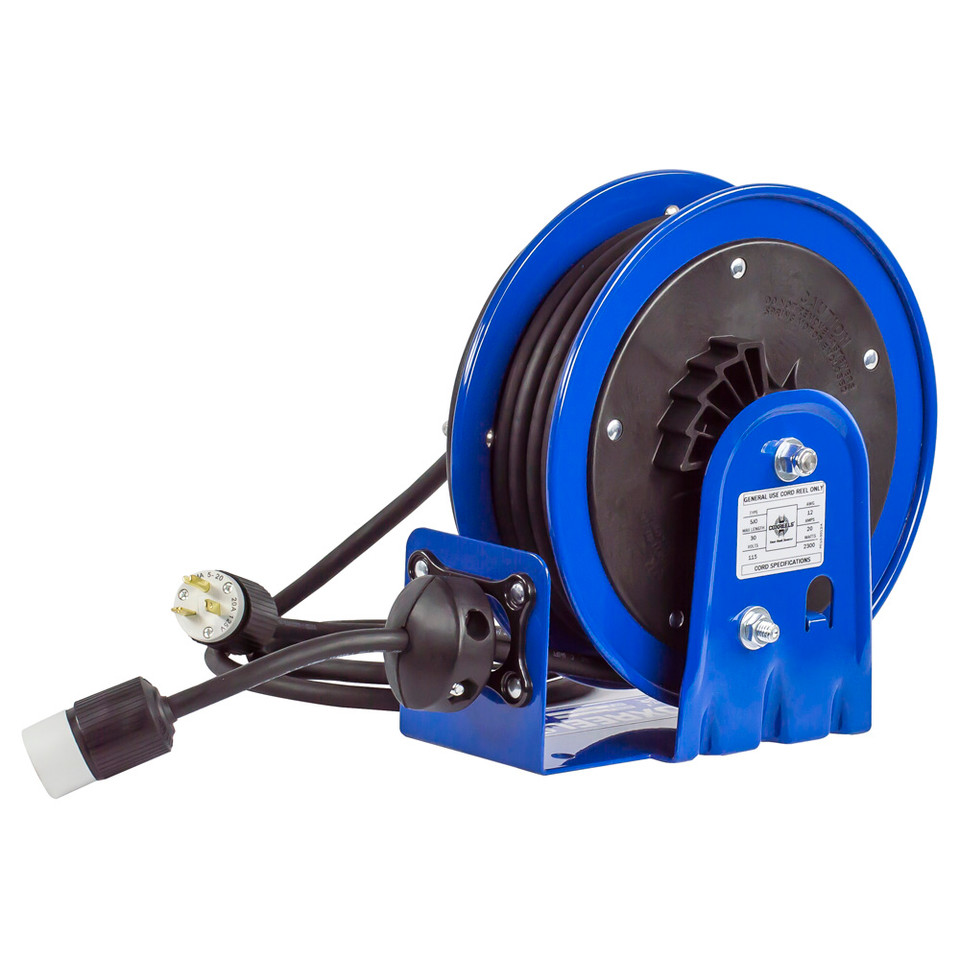

Coxreels PC10-3016-H Compact Efficient Heavy Duty Power Cord Reel | PC10 Series | 30' Cord Length | Gauge | 115 Volts

Coxreels PC10-3016-H is a compact spring rewind power cord reel from the PC10 Series, designed to provide retractable task-light cord storage in areas where mounting space is limited. This model includes a 30 ft cord length with 16/3 SJO cord and operates at 115 volts, making it a practical cord reel option for compatible indoor maintenance, service, repair, garage, bench, and workstation lighting applications.

The PC10-3016-H is supplied with an industrial duty LED light, giving users localized illumination while keeping the light cord organized between tasks. Its compact frame helps reduce loose electrical cable across floors and benches, while the spring rewind mechanism retracts the cord after use. The electrical setup, power source, work environment, and connected load must match the reel and light configuration before use.

Type: Compact Spring Rewind Power Cord Reel | Series: PC10 Series | Model: PC10-3016-H | Cord Included: Yes | Cord Length: 30 ft | Cord Size: 16/3 AWG | Cord Type: SJO | Accessory: Industrial Duty LED Light | Volts: 115 | Electrical Rating: 60 Hz Single Phase | Rewind Type: Spring Rewind | Overall Dimensions: 7.38" W x 10.63" H x 10.5" L | Mounting Pattern: 2.5" x 6" | Base: 4.63" x 8.38"

Features:

• Compact spring rewind power cord reel helps manage task-light cord storage where mounting space is limited.
• 30 ft cord length provides convenient reach for nearby benches, service bays, inspection areas, garages, and maintenance tasks.
• 16/3 SJO cord provides flexible retractable cord handling for the supplied LED light configuration.
• Industrial duty LED light provides localized illumination at the point of work while keeping the cord retractable between tasks.
• 115 volt electrical configuration supports compatible power sources when the reel and light are used within their listed rating.
• Spring rewind mechanism retracts the cord after use, helping reduce loose electrical cable across floors, benches, and walk paths.
• Compact PC10 frame helps conserve mounting space in shops, garages, service vehicles, workstations, and maintenance areas.
• Multi-position lock ratchet mechanism secures the cord at the selected working length during use.
• Steel component cover helps protect internal reel components during normal shop and service use.
• CPC powder coat finish helps protect the reel structure in commercial, service, and industrial work environments.

Made in USA:

2 Year Warranty

Applications:

• Maintenance shops and MRO departments where compact retractable LED task lighting is needed close to the work area.
• Automotive, fleet, and equipment service bays where 30 ft of light cord reach supports nearby inspection, repair, and service work.
• Garages and small workstations where an organized LED work light helps reduce loose cord on the floor.
• Manufacturing, assembly, and repair benches that need localized lighting with controlled cord storage.
• Service vehicles and mobile repair setups where compact reel size helps keep the light cord organized between jobs.

FAQs:

• Q: Does the Coxreels PC10-3016-H include cord?
  A: Yes. This model includes 30 ft of 16/3 SJO cord.
• Q: What accessory is included with this model?
  A: The PC10-3016-H is supplied with an industrial duty LED light.
• Q: What does 16/3 SJO cord mean?
  A: 16/3 identifies the cord gauge and conductor count, while SJO identifies the flexible service cord type used on this power cord reel.
• Q: What does the spring rewind mechanism do?
  A: The spring rewind mechanism retracts the cord back onto the reel after use, helping keep the work light cord stored neatly and reducing loose cable around the work area.
• Q: How is the PC10-3016-H different from the PC10-3016-E?
  A: Both models are compact PC10 Series reels with 30 ft of 16/3 cord. The PC10-3016-H includes an industrial duty LED light, while the PC10-3016-E includes an incandescent caged drop light with tool tap plug.
• Q: How is the PC10-3016-H different from the PC10-3016-F?
  A: The PC10-3016-H is configured with an industrial duty LED light for task illumination. The PC10-3016-F is configured with a duplex G.F.C.I. metal industrial receptacle for compatible power access.
• Q: When should I choose a 30 ft compact cord reel?
  A: Choose a 30 ft compact reel when the mounting location is close to the work area and a smaller reel body is preferred over a larger 50 ft, 75 ft, or 100 ft model.
• Q: Is this reel suitable for every 115 volt application?
  A: No. The power source, installation environment, and connected load must be compatible with the reel and supplied LED light configuration.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
