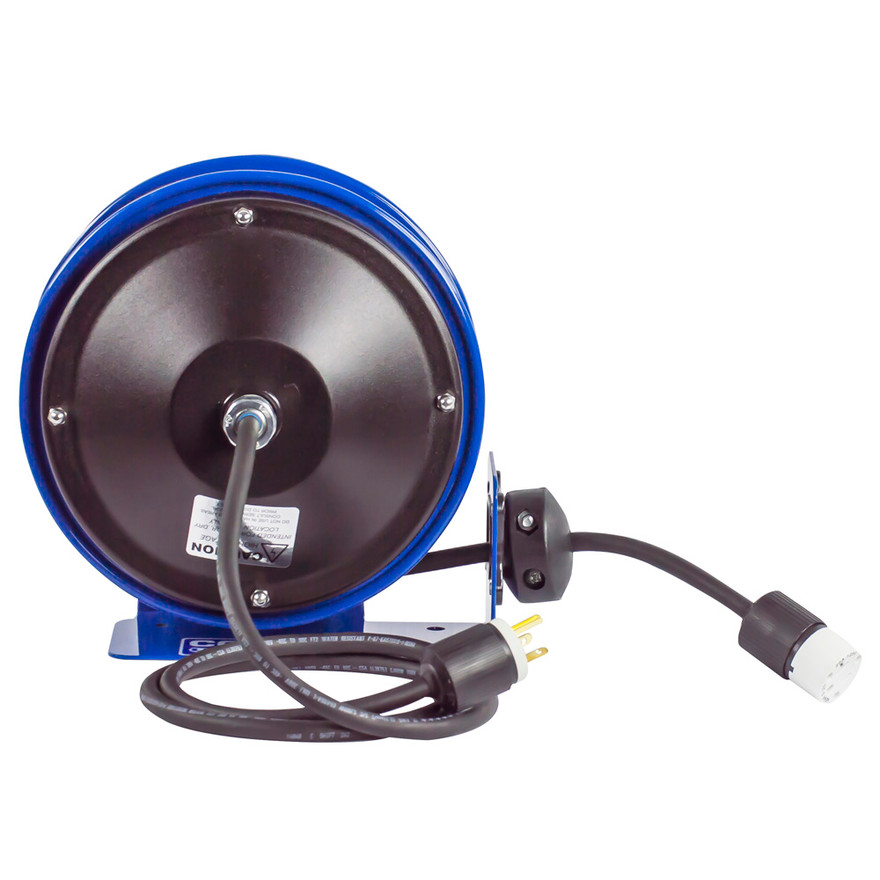

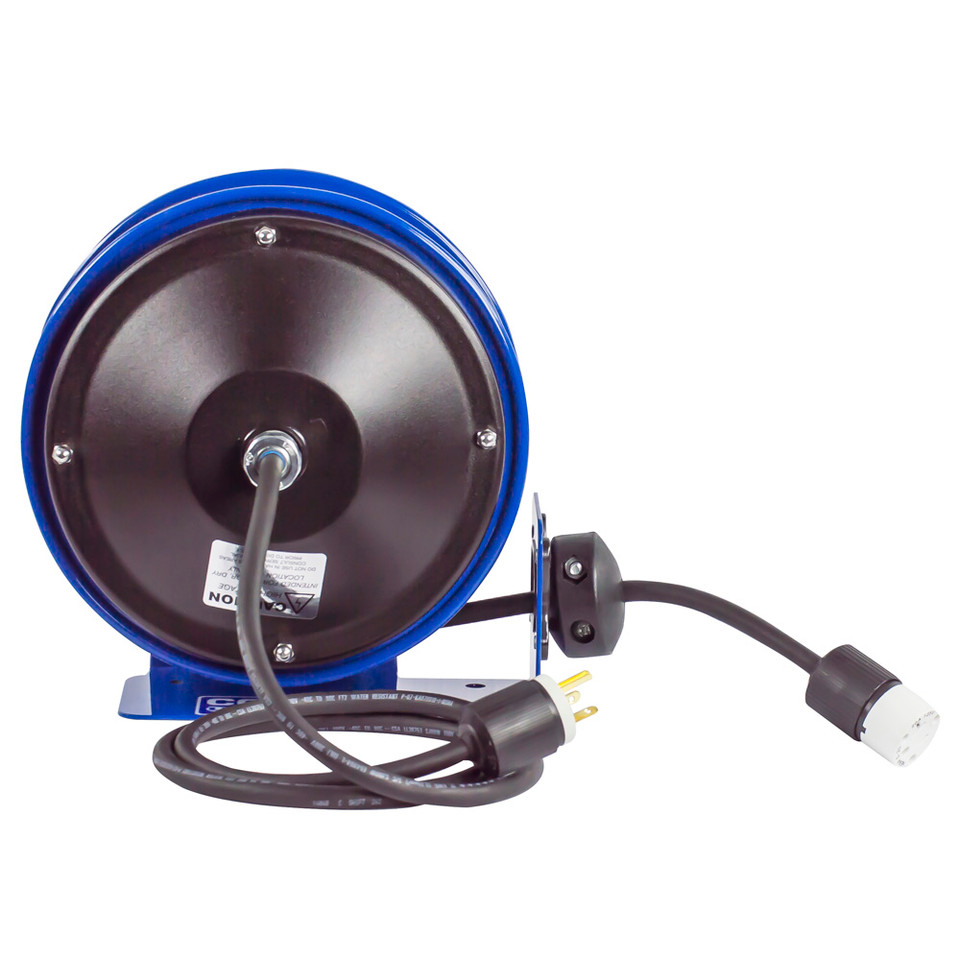

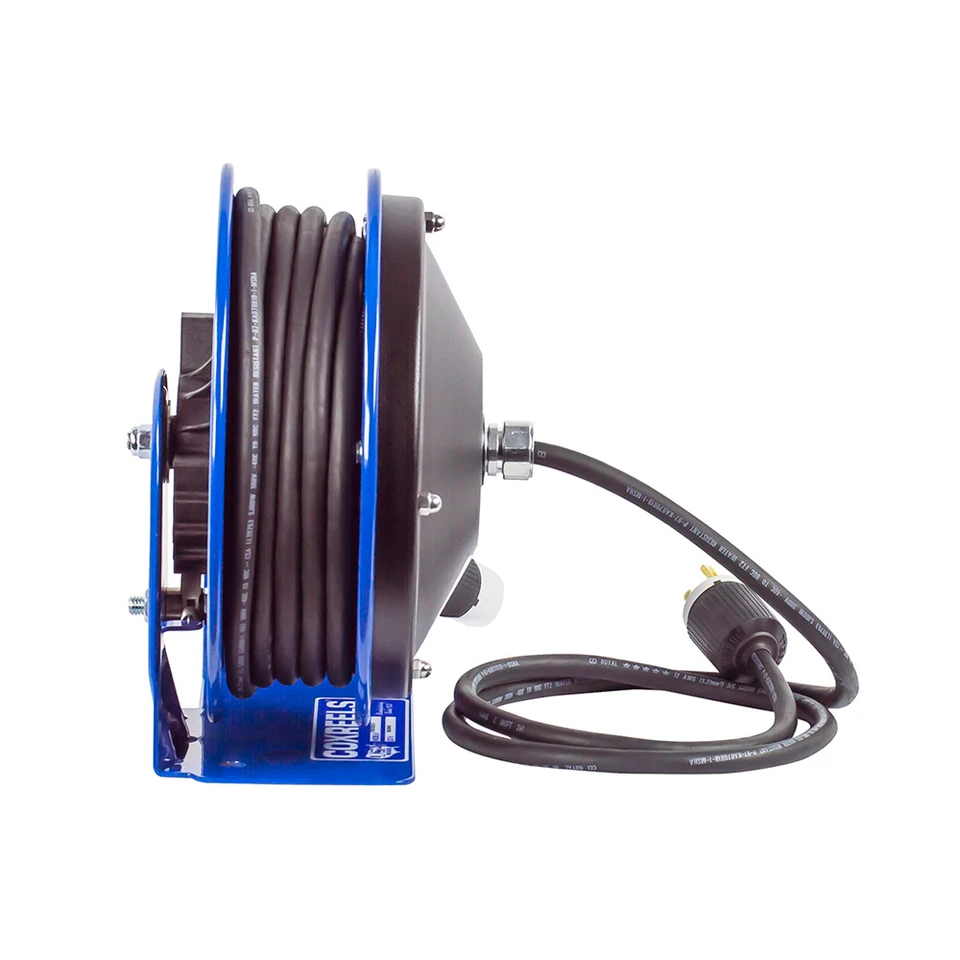

Coxreels PC10-3012-X Compact Efficient Heavy Duty Power Cord Reel | PC10 Series | 300 Volts | 30' Cord Length | 20 Amps

When compact electrical access is needed without leaving loose cords across the floor, the Coxreels PC10-3012-X spring rewind power cord reel provides a practical cord management solution for indoor workstations, benches, service bays, and facility maintenance areas. This PC10 Series reel includes a 30 ft 12/3 SJO cord rated for 300 volts and 20 amps, giving buyers a compact retractable cord reel for shop and commercial electrical service where space is limited.

The PC10-3012-X is the no-accessory version of the 30 ft, 12/3 cord model, meaning it is supplied without a receptacle, outlet box, hand lamp, or other cord-end accessory installed. The spring rewind mechanism retracts the cord after use, while the CoxComposite ratchet hub locks the cord at the desired working length. A continuous radius CoxComposite grommet helps prevent cord pinching or snagging during payout and rewind, and the external CPC powder coated steel component cover allows routine slip ring access without removing the reel from its mounting location.

Type: Spring Rewind Power Cord Reel | Series: PC10 Series | Model: PC10-3012-X | Configuration: No Accessory | Cord Included: Yes | Cord Size: 12/3 AWG | Cord Length: 30 ft | Cord Type: SJO | Voltage: 300 V | Phase: 60 Hz Single Phase | Amperage: 20 A | Approx. Weight: 18 lbs | Use: Indoor Use Only

Features:

• Compact spring driven reel helps organize electrical cords in work areas where wall, bench, vehicle, or floor space is limited.
• 30 ft 12/3 SJO cord supports 20 amp, 300 volt service for compatible indoor electrical applications.
• No-accessory configuration lets the buyer select the appropriate cord-end accessory or termination for the application.
• External heavy gauge CPC powder coated steel component cover allows quick access for routine slip ring maintenance.
• Electrical current runs through a 25 amp / 600 volt rated slip ring for power transfer through the rotating reel assembly.
• CoxComposite grommet with continuous radius design helps prevent the cord from pinching or catching during operation.
• Non-corrosive CoxComposite ratchet hub with self-lubricating bronze bearings secures the cord at the selected working length.
• Solid one-piece 12 gauge steel base and support post provide stable mounting support.
• 1/2" solid steel axle and permanently lubricated precision bearings support smooth reel rotation.
• Enclosed factory tuned and matched cartridge-style spring motor supports controlled cord rewind.
• CNC robotically spun ribbed discs with rolled edges add strength, cord protection, and safer handling around the reel edges.

Made in USA:

2 Year Warranty

Applications:

• Maintenance benches and plant workstations where retractable power access helps keep cords organized between tasks.
• Automotive and fleet service bays requiring compact indoor cord storage near lifts, diagnostic stations, and repair areas.
• Manufacturing and assembly areas where 300 volt cord access is needed close to tools, chargers, lights, or test equipment.
• Facility maintenance rooms, workshops, and MRO areas where loose extension cords can create clutter or trip points.
• Service trucks and utility vehicles that need a compact reel body for onboard electrical cord storage.
• Custom electrical setups where the no-accessory cord end allows the installer to choose the proper termination.

FAQs:

• Q: What does "no accessory" mean on the PC10-3012-X?
  A: It means this model is supplied without a cord-end accessory such as a single receptacle, quad receptacle, GFCI box, or hand lamp. The buyer or installer must select and install the appropriate compatible accessory or termination for the application.
• Q: Does this model include the 30 ft cord?
  A: Yes. The PC10-3012-X includes a 30 ft 12/3 SJO cord. It is not the less-cord PC10L model.
• Q: Can the Coxreels PC10-3012-X be used outdoors?
  A: The PC10 Series is specified for indoor use only. Use it in indoor shop, plant, service bay, vehicle, or workstation environments that match the reel's electrical rating and installation requirements.
• Q: What does spring rewind mean?
  A: Spring rewind means the reel uses an internal spring motor to retract the cord after use. The ratchet hub locks the cord at the desired length until the user releases it for rewind.
• Q: Why choose the X version instead of a receptacle model?
  A: Choose the X version when the job calls for a custom cord-end accessory or termination rather than a factory-installed receptacle. If a plug-in outlet is required out of the box, compare the PC10 models supplied with single, quad, or GFCI receptacle options.
