Coxreels EZ-SHL-3100 EZ Coil Spring Rewind Hose Reel | EZ-SH Series | 3/8" Hose Diameter | 100' Hose Length | 300 Max PSI | Less Hose

When a work area needs longer hose reach without stepping up to a larger hose diameter, the Coxreels EZ-SHL-3100 EZ Coil spring rewind hose reel provides a bare-reel setup for 3/8" I.D. hose with up to 100 ft of capacity. Its 300 PSI low-pressure rating supports compatible air, water, and oil service when paired with the correct hose, fittings, and media requirements. The EZ-Coil controlled-rewind system retracts up to 80% slower than conventional spring driven reels, helping reduce hose whip and giving technicians more controlled hose return after use.

Part of the Coxreels EZ-SH Series, this reel uses the Super Hub dual axle support system to improve stability during pull-out and rewind while reinforcing the reel structure. The larger EZ-SH chassis accommodates the longer 100 ft hose capacity, making this model useful for service bays, maintenance areas, and vehicle-mounted installations where workers need extended reach from a fixed air, water, or oil supply point.

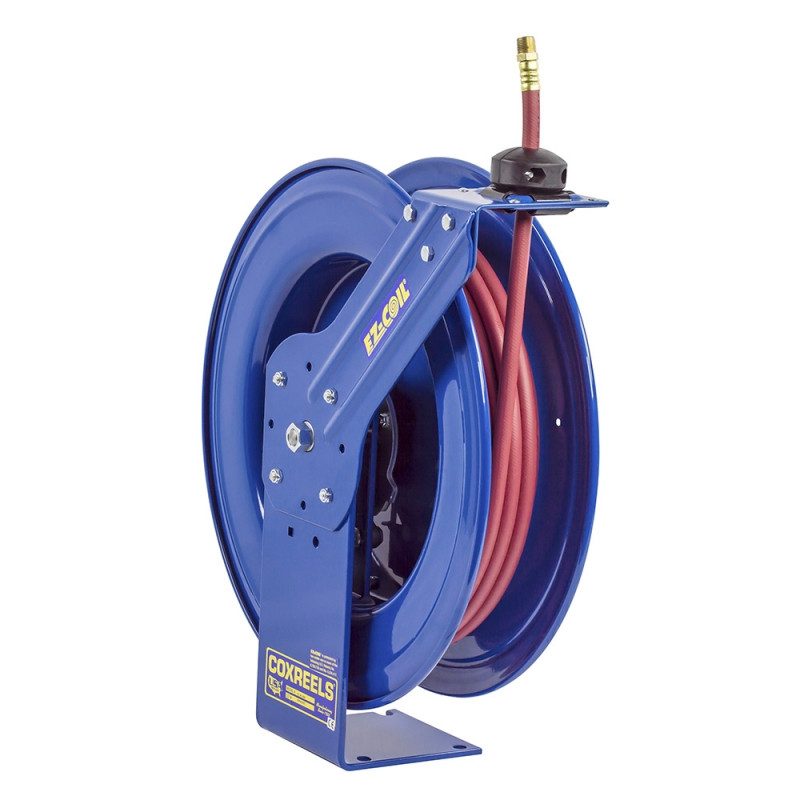

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: EZ Coil Spring Rewind Hose Reel | Series: EZ-SH Series | Configuration: Less Hose | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Capacity: 100 ft | Max Pressure: 300 PSI | Service: Air, Water, Oil | Swivel: Machined solid brass 90° full-flow NPT swivel inlet | Seal Material: Nitrile | Overall Dimensions: 8.25" W x 21.25" H x 24" L | Mounting Pattern: 4" M x 5" N | Base: 6" X x 6" Y | Approx. Ship Weight: 60 lbs

Features:

• EZ-Coil controlled retraction system returns hose up to 80% slower than conventional spring driven hose reels.
• Super Hub dual axle support system increases reel stability during operation and strengthens the structural integrity of the reel.
• Larger EZ-SH chassis accommodates longer hose lengths while maintaining a compact 8.25" wide mounting footprint.
• Single pedestal frame with a solid one-piece 1/4" steel base and support post provides a rigid foundation for shop, truck, or overhead mounting.
• Machined from solid brass 90° full-flow NPT swivel inlet helps maintain a clean external fluid path through the reel.
• Nitrile swivel seals are matched to compatible low-pressure air, water, and oil applications.
• Adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions for flexible hose pull direction.
• Multi-position lock ratchet mechanism holds the hose at the selected working length during use.

Made in USA:

2 Year Warranty

Applications:

• Service bays and repair shops needing 100 ft of 3/8" hose reach from a fixed air, water, or oil supply point.
• Fleet maintenance trucks and mobile mechanics using a bare reel with a separately selected hose assembly.
• Manufacturing and MRO work cells where controlled rewind helps keep hose organized after repeated tool or fluid-service tasks.
• Automotive, equipment, and garage environments where longer hose reach reduces the need to move the supply source.
• Facility maintenance areas standardizing on a preferred hose material, fitting style, or color-coded hose program.

FAQs:

• Q: What does 'less hose' mean for the EZ-SHL-3100?
  A: It means the reel is supplied without hose installed. The buyer must add a compatible hose separately, using the listed 3/8" I.D., 5/8" O.D., 100 ft capacity, and 300 PSI rating as selection limits.
• Q: Why choose the 100 ft version instead of a 75 ft reel?
  A: The 100 ft capacity provides extra reach for larger bays, longer vehicle service areas, or mobile setups where the supply point cannot be positioned close to the work. Choose the shorter reel when the extra reach is not needed and a smaller hose load is preferred.
• Q: Can this reel be mounted overhead?
  A: Yes, the adjustable guide arm allows wall, floor, vehicle, and overhead mounting. The reel should be mounted to a structure capable of supporting the reel, hose, fittings, and pull forces during operation.
• Q: What is EZ-Coil controlled rewind?
  A: EZ-Coil is Coxreels controlled-retraction system. It slows hose return compared with a conventional spring rewind reel, helping reduce sudden hose snap-back during rewind.
• Q: Can this reel be used with oil?
  A: Coxreels lists this low-pressure less-hose EZ-SH model for air, water, and oil service. Final compatibility depends on the hose, fittings, seal requirements, media temperature, and the fluid being transferred.
