Coxreels 1275WL-3-350-C Dual Hose Hand Crank Welding Reel | 1275W Series | 3/8" Hose Diameter | 350' Hose Length | 200 Max PSI | Less Hose

Built for extended twin-line welding hose runs, the Coxreels 1275WL-3-350-C provides a reel-only hand crank solution for keeping welding gas hose organized around fabrication bays, welding stations, repair trucks, and maintenance areas. This 1275W Series dual hose welding reel is configured for 3/8" I.D. hose with up to 350 ft hose capacity and a 200 PSI maximum pressure rating, giving buyers room to install long oxy-acetylene or 'T' grade welding hose while maintaining controlled storage between jobs.

The hand crank design uses a direct bevel gear drive, which helps operators rewind long hose lengths with steady mechanical control rather than relying on spring tension. Dual machined solid brass 90° full-flow swivel inlets, one on each side of the reel, provide separate gas paths for twin-line welding hose. Coxreels also incorporates VITON swivel seals, an adjustable tension brake, and an open drum slot with low profile outlet risers to help the hose wrap flatter on the drum and reduce crimping during storage.

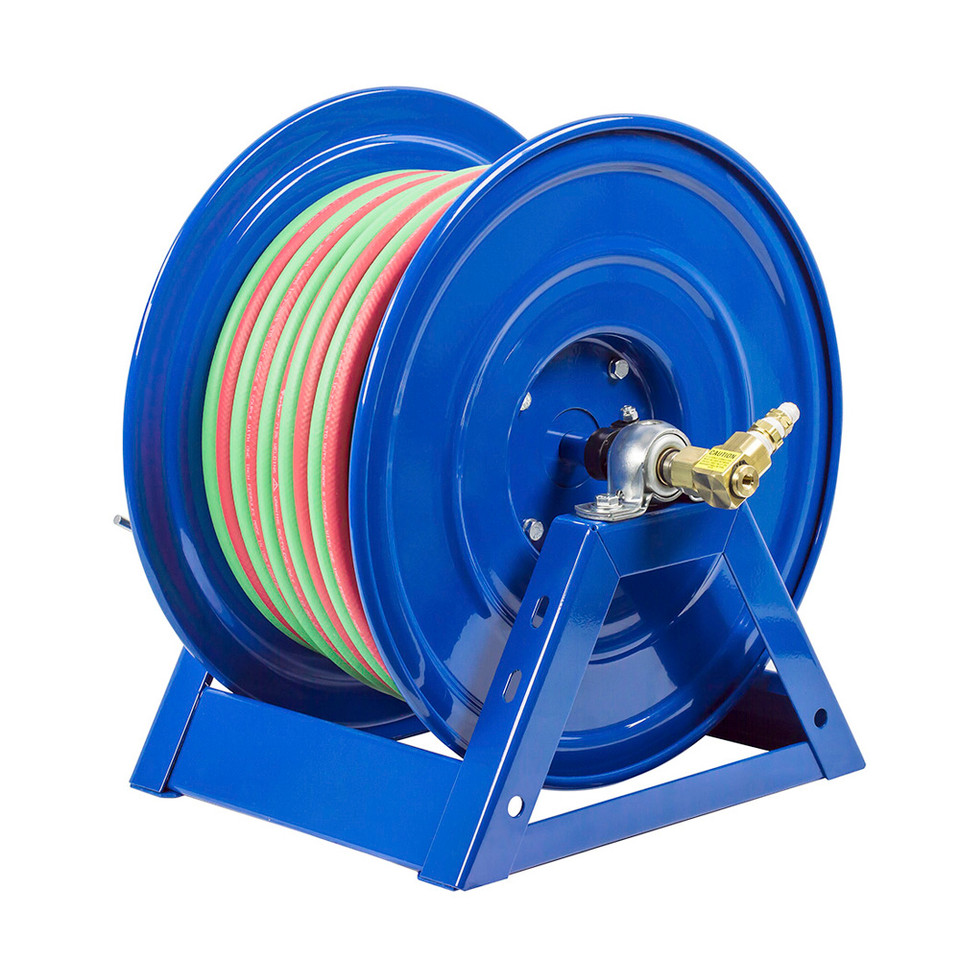

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Dual Hose Hand Crank Welding Reel | Series: 1275W Series | Model: 1275WL-3-350-C | Configuration: Less Hose | Hose I.D.: 3/8" | Hose Capacity: 350 ft | Max Pressure: 200 PSI | Hose Included: No | Rewind: Hand Crank | Drive: Direct Bevel Gear Drive | Swivel Inlets: Dual 3/8" NPT solid brass 90° full-flow | Swivel Seal: VITON

Features:

• Direct bevel gear drive helps retract long twin-line welding hose with controlled hand crank operation.
• Dual machined solid brass 90° full-flow 3/8" NPT swivel inlets provide two external fluid paths, one on each side of the reel.
• VITON swivel seals support welding gas reel service and allow straightforward seal maintenance.
• Adjustable tension brake helps reduce free wheeling during payout and rewind.
• Exclusive low profile outlet risers and open drum slot design help create a flat, smooth hose wrap with reduced crimping.
• Permanently lubricated, self-aligning pillow block bearings support smooth reel rotation during hose payout and retrieval.
• One-piece CNC robotically welded 12-gauge steel 'A' frame base provides a rigid structure for shop, truck, or equipment mounting.
• CNC robotically spun and ribbed discs with rolled edges add reel strength while helping protect the hose during storage.

Made in USA:

2 Year Warranty

Applications:

• Welding and fabrication shops using extended oxy-acetylene or 'T' grade twin-line welding hose for cutting, heating, brazing, and repair work.
• Industrial maintenance departments organizing welding hose around repair cells, plant service areas, and equipment rebuild stations.
• Mobile welding trucks and service trailers where a reel-only configuration lets the buyer install the hose type required for the job.
• Fleet, farm, and heavy equipment repair operations managing long hose reach around trucks, implements, and machinery.
• Vocational welding labs and maintenance training areas where controlled hose storage helps reduce floor clutter around workstations.

FAQs:

• Q: Does the 1275WL-3-350-C include welding hose?
  A: No. The 'L' less-hose configuration means the reel is supplied without hose installed. Compatible 3/8" twin-line welding hose must be purchased separately.
• Q: Why choose a hand crank welding reel for a 350 ft hose capacity?
  A: A hand crank reel gives the operator controlled manual rewind without relying on spring tension. It is a practical choice when powered rewind is not required or when a simpler mechanical reel is preferred.
• Q: What welding hose types is the 1275W Series intended to handle?
  A: Coxreels lists the 1275W Series for long lengths of bulky twin-line welding hose, including oxy-acetylene and 'T' grade welding hose applications.
• Q: What is the purpose of the adjustable tension brake?
  A: The tension brake helps control drum movement and reduce free wheeling during hose payout and rewind, especially useful when managing longer hose runs.
• Q: What should be checked before installation?
  A: Verify that the mounting surface can support the reel, hose, and operating loads. Also confirm the available mounting space against the 34.88" W x 18.63" H x 17.63" L overall dimensions and the 29.38" X x 16" Y base dimensions.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
