Coxreels 1275WL-3-100-A Dual Hose Air Motor Welding Reel | 1275W Series | 3/8" Hose Diameter | 100' Hose Length | 200 Max PSI | Less Hose

Built for welding shops, service trucks, fleet maintenance bays, and fabrication areas that need organized twin-line hose storage, the Coxreels 1275WL-3-100-A is a 1275W Series dual hose welding reel configured for 3/8" I.D. hose with a 100 ft hose capacity and 200 PSI maximum pressure rating. This model is supplied less hose, giving buyers the flexibility to install compatible oxy-acetylene welding hose that matches their shop standards or replacement needs. The air motor rewind configuration uses an air-powered drive to help retract long, bulky welding hose with less manual effort than a hand-crank reel.

The 1275W Series is built around an all-welded steel 'A' frame, open drum slot design, and low-profile outlet risers to support smoother hose wrapping during storage. Dual brass swivel inlets, VITON swivel seals, and permanently lubricated self-aligning pillow block bearings help the reel rotate smoothly while maintaining full-flow performance for welding service.

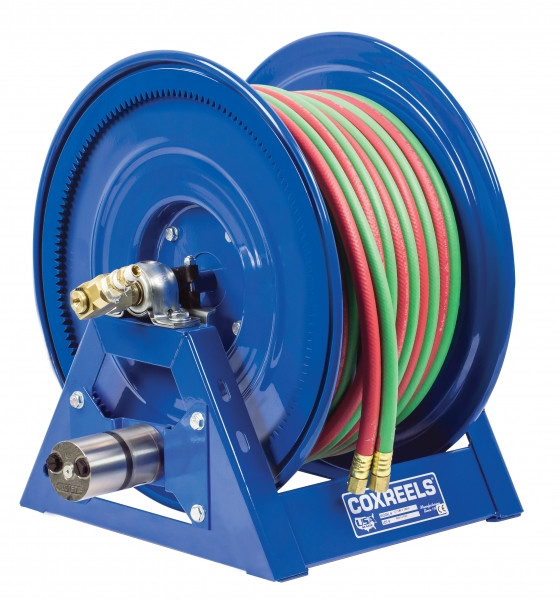

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Dual Hose Air Motor Welding Reel | Series: 1275W Series | Model: 1275WL-3-100-A | Configuration: Less Hose | Retraction: Air Motor Rewind | Hose I.D.: 3/8" | Hose Capacity: 100 ft | Max Pressure: 200 PSI | Service: Oxy-Acetylene Welding Hose | Swivel Inlets: Two 90° Full-Flow 3/8" NPT Brass Swivel Inlets | Swivel Seal: VITON

Features:

• Air motor rewind helps retrieve long welding hose runs without the repetitive effort of manual cranking.
• Two machined-from-solid-brass 90° full-flow 3/8" NPT swivel inlets, with one inlet on each side of the reel for dual hose routing.
• VITON swivel seals support welding service compatibility and help maintain reliable sealing performance.
• All-welded steel 'A' frame construction provides a rigid reel structure for shop, truck, and plant installations.
• Exclusive low-profile outlet risers and open drum slot design help promote a flatter, smoother hose wrap on the drum.
• Permanently lubricated self-aligning pillow block bearings support smooth rotation during payout and rewind.
• Durable proprietary CPC powder coat process helps protect the reel finish in working environments.
• Rolled edges and ribbed discs add strength and help improve handling safety around the reel body.

Made in USA:

2 Year Warranty

Applications:

• Welding shops and fabrication cells managing oxy-acetylene twin-line welding hose near benches, cutting tables, and workstations.
• Welding and service trucks where hose must be stored securely between jobs and rewound without manual cranking.
• Maintenance, repair, and operations departments supporting cutting, heating, and welding tasks around plant equipment.
• Automotive and fleet maintenance facilities using welding hose for repair work, metal cutting, and shop fabrication support.
• Construction, pipeline, railroad, and mobile field service crews that need organized hose storage in rugged work areas.
• Garage and small shop settings where a fixed reel helps keep welding hose off the floor and ready for repeated use.

FAQs:

• Q: What does 'less hose' mean on the 1275WL-3-100-A?
  A: It means the reel is supplied without hose installed. The buyer must provide compatible 3/8" I.D. oxy-acetylene welding hose separately.
• Q: What does the 'A' suffix mean on this Coxreels model?
  A: The 'A' suffix identifies the air motor rewind option. This version uses a 4-vane aluminum body air motor to power reel rewind instead of relying on a front hand crank.
• Q: Can this reel be used with 100 ft of 3/8" twin-line welding hose?
  A: Yes. This model is sized for 100 ft of 3/8" I.D. welding hose at a 200 PSI maximum pressure rating, provided the hose and fittings are compatible with the intended welding gas service.
• Q: Does this reel have the welding hose fittings already installed?
  A: No. Because this is the less-hose version, the reel does not include hose or hose-end fittings. The matching hose version uses oxy-acetylene welding hose with 9/16"-18 UNF welding hose fittings, so confirm hose and fitting compatibility before installation.
• Q: Where can this air motor welding reel be mounted?
  A: The 1275W Series is commonly used on walls, floors, benches, service trucks, and fixed shop locations when the mounting surface can safely support the reel, hose load, and pulling forces during use.
