Coxreels 1275WL-3-350-A Dual Hose Air Motor Welding Reel | 1275W Series | 3/8" Hose Diameter | 350' Hose Length | 200 Max PSI | Less Hose

When long twin-line welding hose needs powered rewind instead of manual cranking, the Coxreels 1275WL-3-350-A provides a motorized reel platform for keeping welding gas hose organized, protected, and ready for use. This 1275W Series dual hose air motor welding reel is configured for 3/8" I.D. hose with up to 350 ft hose capacity and a 200 PSI maximum pressure rating, making it a practical fit for extended hose runs in fabrication shops, welding service trucks, maintenance areas, and industrial repair stations.

The air motor rewind system uses a reliable direct gear drive with no chain, helping deliver smooth powered retraction where long hose lengths can be slow or difficult to rewind by hand. Dual machined solid brass 90° full-flow swivel inlets, one on each side of the reel, provide separate external gas paths for twin-line welding hose. Coxreels pairs this with VITON swivel seals, a low profile outlet riser, and an open drum slot design to help the hose wrap flat while reducing crimp points during storage.

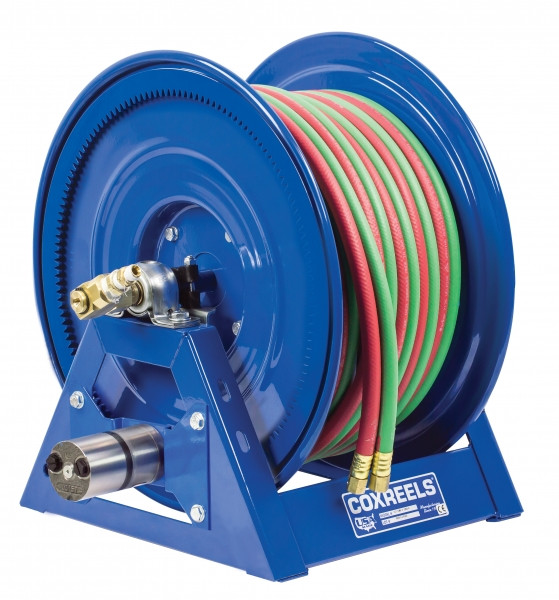

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Dual Hose Air Motor Welding Reel | Series: 1275W Series | Model: 1275WL-3-350-A | Configuration: Less Hose | Hose I.D.: 3/8" | Hose Capacity: 350 ft | Max Pressure: 200 PSI | Hose Included: No | Rewind: Air Motor | Drive: Direct Gear Drive | Swivel Inlets: Dual 3/8" NPT solid brass 90° full-flow | Swivel Seal: VITON

Features:

• Air motor rewind supports powered retraction for long welding hose lengths where hand cranking may be inefficient.
• Reliable direct gear drive on motor driven models eliminates chain drive components for smooth reel rotation.
• Dual machined solid brass 90° full-flow 3/8" NPT swivel inlets provide two external fluid paths, one on each side of the reel.
• VITON swivel seals support welding gas reel service and allow straightforward seal maintenance.
• Exclusive low profile outlet risers and open drum slot design help produce a flat, smooth hose wrap with reduced crimping.
• All welded steel 'A' frame construction provides a rigid reel base for mounting in shops, trucks, and equipment areas.
• Permanently lubricated, self-aligning pillow block bearings promote smooth rotation during payout and rewind.
• CNC spun, ribbed discs with rolled edges help add reel strength while helping protect hose during storage.

Made in USA:

2 Year Warranty

Applications:

• Welding and fabrication shops using long oxy-acetylene or 'T' grade twin-line welding hose for cutting, heating, brazing, and repair work.
• Welding service trucks and mobile repair rigs where powered rewind helps retrieve hose after field service jobs.
• Industrial maintenance and MRO departments that need cleaner hose storage around welding stations and equipment repair areas.
• Fleet, agricultural, and heavy equipment service operations managing extended hose reach around vehicles, implements, and machinery.
• Construction, railroad, pipeline, and marine repair settings where long welding gas hose runs need controlled storage between tasks.

FAQs:

• Q: What does 'less hose' mean for this Coxreels welding reel?
  A: It means the reel is supplied without hose installed. The buyer must provide compatible 3/8" twin-line welding hose separately.
• Q: What is the advantage of the air motor rewind on the 1275WL-3-350-A?
  A: Air motor rewind powers the reel during hose retrieval, which is useful when managing up to 350 ft of welding hose. It reduces the manual effort required compared with a hand crank model.
• Q: Does this reel use a chain drive?
  A: No. Coxreels lists the motor driven 1275W Series with a reliable direct gear drive and no chain, helping keep rewind operation smooth and mechanically straightforward.
• Q: What welding hose types is the 1275W Series intended for?
  A: Coxreels lists the 1275W Series for bulky twin-line welding hose, including oxy-acetylene and 'T' grade welding hose applications.
• Q: What should be checked before mounting this reel?
  A: Confirm the mounting surface can support the reel, hose, and operating loads. Also verify the available space against the 35.88" W x 19.13" H x 17.63" L overall dimensions and the 29.38" X x 16" Y base dimensions.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
