Coxreels 1275WL-3-250-A Dual Hose Air Motor Welding Reel | 1275W Series | 3/8" Hose Diameter | 250' Hose Length | 200 Max PSI | Less Hose

Built for welding shops, service trucks, fabrication bays, and field repair crews that need controlled storage for long twin-line welding hose, the Coxreels 1275WL-3-250-A is a 1275W Series dual hose welding reel supplied less hose with an air motor rewind. This configuration provides 250 ft of 3/8" hose capacity at a 200 PSI maximum pressure rating, giving buyers a large-capacity reel platform for organizing oxy-acetylene welding hose while selecting the hose separately to match shop standards and gas-service requirements.

The 1275W Series uses an all-welded steel 'A' frame, low-profile outlet risers, and an open drum slot design to help promote a flatter, smoother hose wrap. The A suffix identifies the air-powered motor option, which is useful when manual crank rewind is not preferred for long hose runs or repeated reel use during welding, maintenance, and mobile service work.

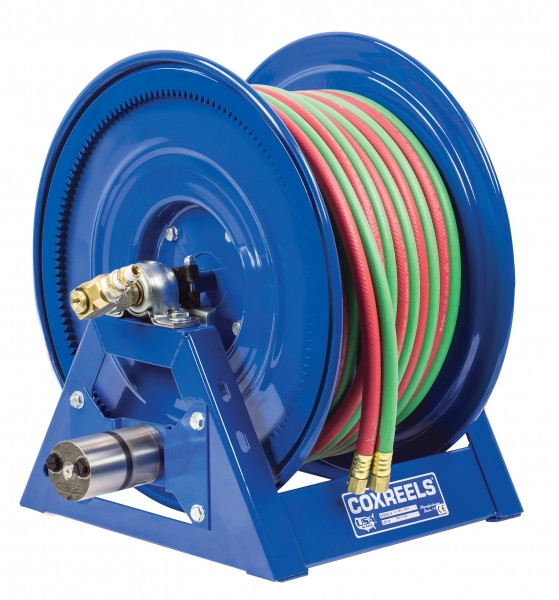

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Dual Hose Air Motor Welding Reel | Series: 1275W Series | Model: 1275WL-3-250-A | Configuration: Less Hose | Rewind: Air Motor | Hose I.D.: 3/8" | Hose Capacity: 250 ft | Max Pressure: 200 PSI | Service: Oxy-Acetylene Welding Hose | Fitting Reference: 9/16"-18 UNF welding hose fittings | Swivel Inlets: Two machined solid brass 90° full-flow 3/8" NPT swivel inlets | Swivel Seal: VITON

Features:

• Air motor rewind helps retrieve long hose runs with less manual effort than a hand crank configuration.
• Built for 3/8" twin-line oxy-acetylene welding hose applications where hose must be selected and installed separately.
• Two machined from solid brass 90° full-flow 3/8" NPT swivel inlets, one on each side of the reel, support organized dual-hose routing.
• VITON swivel seals are used in the swivel assembly for welding reel service compatibility.
• All welded steel 'A' frame construction provides a rigid reel structure for shop, truck, and plant mounting environments.
• Exclusive low profile outlet risers and open drum slot design help create a flatter, smoother hose wrap on the drum.
• Permanently lubricated self-aligning pillow block bearings support smooth reel rotation.
• Durable proprietary CPC' powder coat process and rolled edges with ribbed discs help protect the reel structure during regular handling and use.

Made in USA:

2 Year Warranty

Applications:

• Welding shops and fabrication bays managing long oxy-acetylene twin-line hose runs between workstations.
• Maintenance, repair, and operations crews that need organized hose storage near repair areas, welding benches, or equipment service zones.
• Welding and service trucks where compact hose management helps reduce loose hose on mobile repair platforms.
• Automotive and fleet maintenance facilities using gas welding or cutting setups for repair, fabrication, and shop support work.
• Pipeline, construction, mining, railroad, marine, shipbuilding, and offshore work areas where welding hose organization supports safer, cleaner workspaces.

FAQs:

• Q: What does 'less hose' mean on this Coxreels welding reel?
  A: It means the reel is supplied without hose installed. The buyer must provide compatible 3/8" twin-line welding hose separately before the reel can be used in service.
• Q: Is this reel for oxy-acetylene or other fuel gases?
  A: The 1275W model family shown here is listed for oxy-acetylene welding hose. Coxreels lists separate 1275WT models for T Grade welding hose used with other fuel gases.
• Q: What does the 'A' suffix indicate?
  A: The 'A' suffix identifies the air motor option. In the Coxreels suffix table, A is listed as an air, 4 vane aluminum body air motor add-on.
• Q: Can this reel be mounted on a welding truck?
  A: Yes, welding and service trucks are among the listed fields of application for this reel series. Confirm available mounting space, hose routing, and air supply for the motor before installation.
• Q: Does the 250 ft hose length in the title mean hose is included?
  A: No. For this 1275WL model, 250 ft refers to hose capacity. This SKU is a less-hose reel and requires separate hose selection.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
