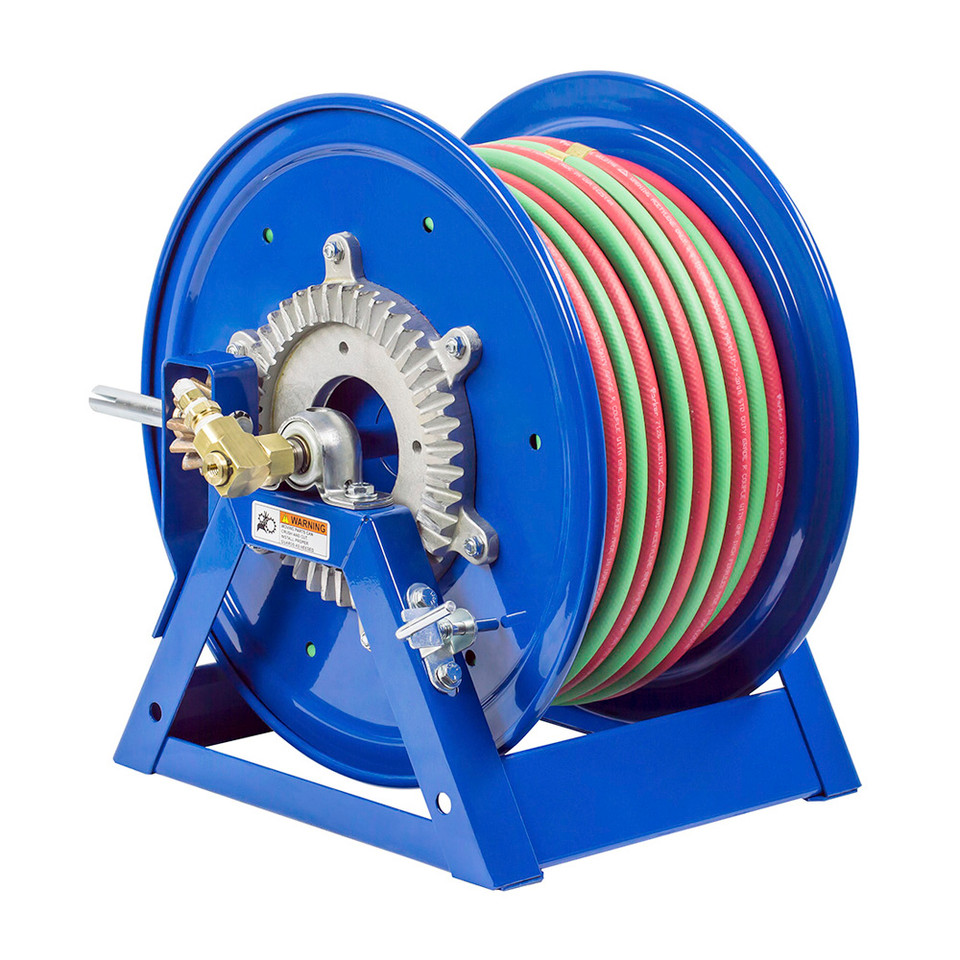

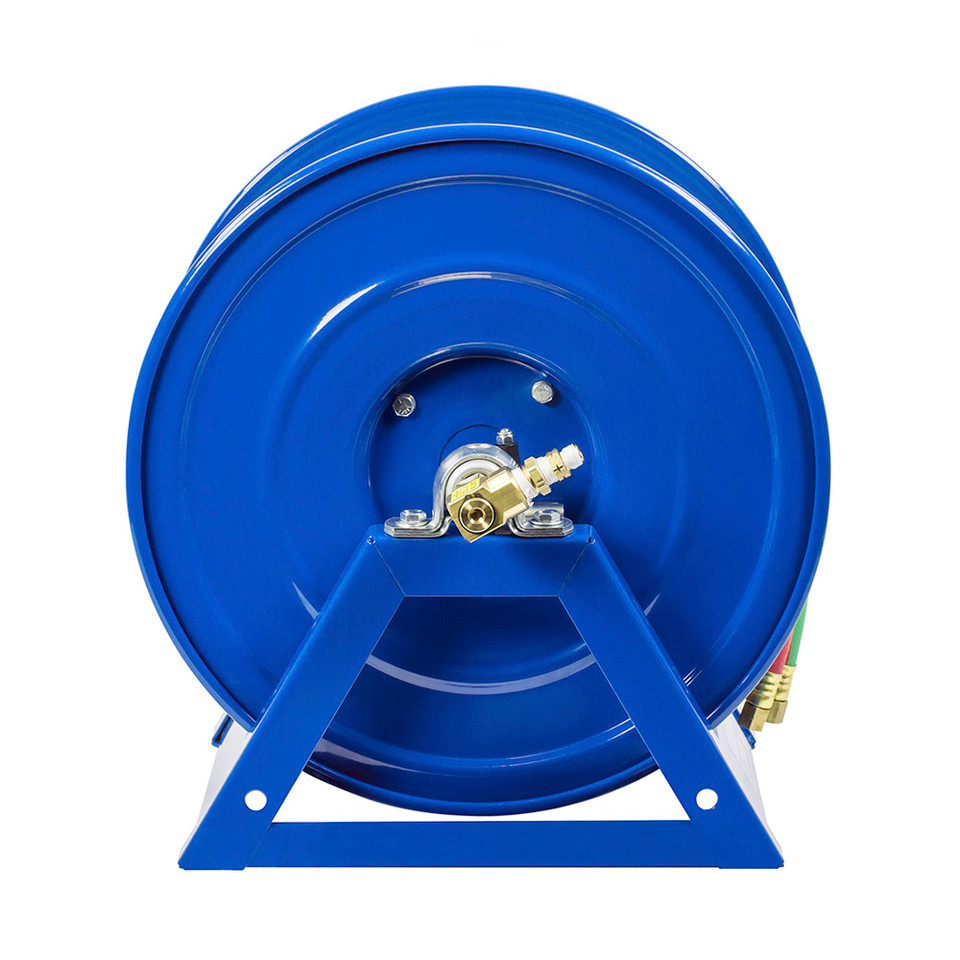

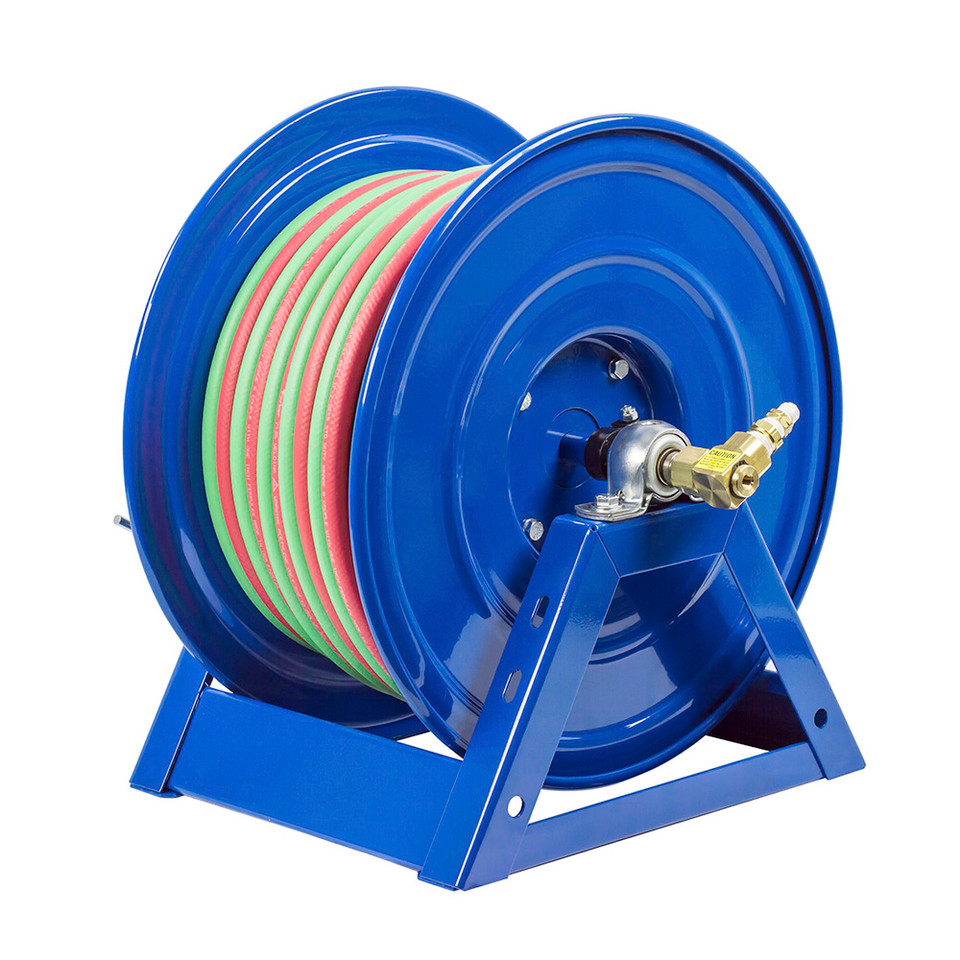

Coxreels 1275WL-3-250-C Dual Hose Hand Crank Welding Reel | 1275W Series | 3/8" Hose Diameter | 250' Hose Length | 200 Max PSI | Less Hose

Built for welding gas hose management in fabrication shops, service bays, and mobile welding rigs, the Coxreels 1275WL-3-250-C gives operators a manual reel platform for organizing bulky twin-line welding hose without relying on spring rewind. This 1275W Series dual hose hand crank reel is configured for 3/8" I.D. hose with up to 250 ft hose capacity and a 200 PSI maximum pressure rating, making it suited for long oxy-acetylene and 'T' grade welding hose runs where controlled manual retraction and clean storage matter.

The front bevel geared crank provides mechanical retraction for long hose lengths, while the low profile outlet riser and open drum slot design help the hose wrap flatter on the drum. Dual machined solid brass 90° full-flow swivel inlets, one on each side of the reel, support separate gas paths for twin-line welding service, and VITON swivel seals support compatibility with welding gas reel applications specified by Coxreels.

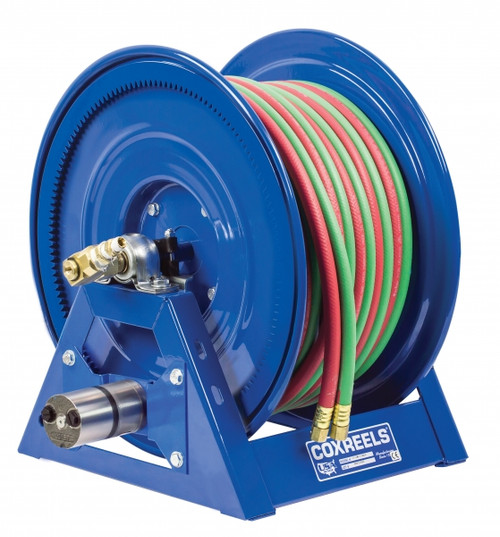

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Dual Hose Hand Crank Welding Reel | Series: 1275W Series | Model: 1275WL-3-250-C | Configuration: Less Hose | Hose I.D.: 3/8" | Hose Capacity: 250 ft | Max Pressure: 200 PSI | Hose Included: No | Swivel Inlets: Dual 3/8" NPT solid brass 90° full-flow | Swivel Seal: VITON

Features:

• Direct bevel gear drive helps retract long twin-line welding hose with controlled hand crank operation.
• Dual machined solid brass 90° full-flow 3/8" NPT swivel inlets provide separate external fluid paths, one on each side of the reel.
• VITON swivel seals support welding gas reel service and simplify seal maintenance.
• Exclusive low profile outlet riser and open drum slot design help create a flat, smooth hose wrap with reduced crimping.
• Permanently lubricated, self-aligning pillow block bearings support smooth reel rotation during payout and rewind.
• One-piece CNC robotically welded 12-gauge steel 'A' frame base provides a rigid reel structure for shop or equipment mounting.
• CNC robotically spun and ribbed discs with rolled edges add strength while helping protect the hose during storage.
• Adjustable tension brake helps prevent free wheeling during payout and rewind.

Made in USA:

2 Year Warranty

Applications:

• Welding and fabrication shops managing long oxy-acetylene or 'T' grade twin-line welding hose runs.
• Maintenance departments that need organized welding gas hose storage near repair stations, work cells, or service areas.
• Mobile welding trucks, trailers, and skid-mounted service setups where manual rewind and compact hose control are preferred.
• Fleet, farm, and equipment repair operations using welding hose for cutting, brazing, heating, and field repair tasks.
• Training labs and vocational welding areas where keeping hose off the floor can improve organization around welding stations.

FAQs:

• Q: What does 'less hose' mean on the 1275WL-3-250-C?
  A: It means the reel is supplied without hose installed. The buyer must provide compatible 3/8" twin-line welding hose separately.
• Q: What type of hose is this reel built to manage?
  A: Coxreels lists the 1275W Series for long lengths of bulky twin-line welding hose, including oxy-acetylene and 'T' grade welding hose applications.
• Q: Is this a spring rewind reel?
  A: No. This model uses hand crank retraction with a direct bevel gear drive, which gives the operator manual control when rewinding long hose lengths.
• Q: What is the benefit of the open drum slot and low profile outlet riser?
  A: These features help the hose wrap flatter and smoother on the drum, reducing crimping compared with less guided hose storage.
• Q: Can this reel be mounted on a welding truck or trailer?
  A: Yes, when the mounting surface can support the reel, hose, and working loads. Verify mounting space using the 28.88" W x 18.63" H x 17.63" L overall dimensions and the listed base dimensions before installation.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
