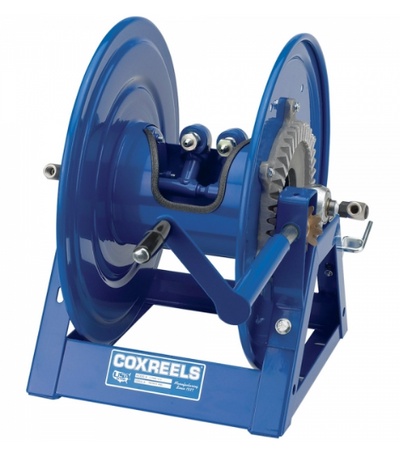

When high-pressure hydraulic lines need organized storage without spring rewind, the Coxreels 1275HPL-D-8 provides a manual rim rewind solution for dual hydraulic hose applications. This 1275HP Series reel is built to handle 1/4" I.D. hose with 135 ft hose capacity and a 10,000 PSI maximum pressure rating, making it suited for rescue equipment, high-pressure hydraulic tools, and service setups where controlled hose payout and retrieval matter. The rim rewind configuration lets the operator manually wrap hose onto the drum, while the open drum slot and low-profile riser layout help support a flatter, smoother hose wrap.
The 1275HPL-D-8 uses two high-pressure 90° full-flow melanized steel 1/4" swivel inlets with VITON swivel seals. VITON is a fluoroelastomer seal material commonly used where hydraulic fluid resistance and pressure capability are important. Its one-piece welded steel "A" frame, CNC-spun ribbed discs, rolled edges, and permanently lubricated pillow block bearings help the reel hold up in shop, vehicle, and equipment-mounted environments where hydraulic hose management is part of daily work.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hand Crank Rim Rewind Hose Reel | Series: 1275HP Series | Configuration: Less Hose | Application: Dual Hydraulics | Hose I.D.: 1/4" | Hose O.D.: 1/2" | Hose Capacity: 135 ft | Max Pressure: 10,000 PSI | Hose Included: No | Ship Weight: 37 lbs
Features:
- Dual hydraulic reel layout is intended for emergency rescue systems and other high-pressure hydraulic tools that require two hose paths.
- Two high-pressure 90° full-flow melanized steel 1/4" swivel inlets help route hydraulic flow into the reel while supporting high-pressure service.
- VITON swivel seals provide fluid-resistant sealing performance for hydraulic applications.
- Two low-profile outlet risers and an open drum slot help create a flat, smooth hose wrap and reduce crimping during storage.
- Rim rewind operation gives the user direct manual control over hose retrieval without relying on a spring or motor drive.
- CNC-spun ribbed discs with rolled edges add strength, protect the hose, and improve handling safety around the reel edges.
- One-piece CNC robotically welded 12-gauge steel "A" frame base provides a rigid mounting platform with a built-in mounting pattern.
- Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation during payout and rewind.
Made in USA:
Applications:
- Emergency rescue equipment: Managing twin hydraulic hoses used with rescue tools where high-pressure storage and controlled payout are required.
- Hydraulic tool service: Organizing supply and return lines for high-pressure hydraulic tools in shop, field service, or mobile support setups.
- Utility and fleet vehicles: Mounting hydraulic hose storage on service trucks, rescue vehicles, or maintenance units where space and hose control matter.
- Industrial maintenance: Keeping dual hydraulic hoses stored off the floor to reduce clutter, trip hazards, and hose damage around work areas.
- Equipment repair bays: Supporting hydraulic test, repair, and service workflows that need repeatable hose handling without a powered rewind system.
FAQs:
- Q: What does less hose mean on the 1275HPL-D-8?
A: It means this model is supplied as the reel only and does not include hose installed on the drum. The buyer must supply compatible 1/4" I.D., 1/2" O.D. hydraulic hose separately. - Q: Is this a spring rewind reel?
A: No. The 1275HPL-D-8 is a rim rewind hand crank model. The operator manually winds the hose back onto the reel instead of using a spring-driven or motorized rewind system. - Q: What type of application is this reel built for?
A: Coxreels lists the 1275HP Series for dual hydraulic emergency rescue systems and other high-pressure hydraulic tools. The two-hose layout supports applications where paired hydraulic lines need to be stored and managed together. - Q: Can this reel be used at 10,000 PSI?
A: Yes, the manufacturer lists this model with a 10,000 PSI maximum pressure rating. The hose, fittings, and hydraulic system used with the reel must also be rated appropriately for the operating pressure. - Q: What hose size should be used with this model?
A: The listed capacity is for 1/4" inside diameter hose with a 1/2" outside diameter and 135 ft hose length. Do not exceed the listed hose O.D. if the full rated hose capacity is required.
| LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|
| LESS HOSE SKU | DESCRIPTION | INLET | OUTLET | CAPACITY 1/4" I.D. |
CAPACITY 3/8" I.D. |
PSI | APRX. LBS |
|
|
1125HP SERIES 10,000 psi - two 1/4" 90° inlets. These reels are an essential component to operate hydraulic tools requiring 10,000 psi can be easily managed safely for efficient use in emergency situations.
|
||||||||
| 1275HPL-D-8 | Rim Rewind | 1/4" | 1/2" | 135' | 85' | 10,000* | 37 | 3 |
| 1275HPL-D-8-C | Geared Crank | 1/4" | 1/2" | 135' | 85' | 10,000* | 43 | 3 |
| 1275HPL-D-8-A | Air Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 50 | 3 |
| 1275HPL-D-8-E | Electric Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 68 | 3 |
| 1275HPL-D-12 | Rim Rewind | 1/4" | 1/2" | 200' | 125' | 10,000* | 39 | 4 |
| 1275HPL-D-12-C | Geared Crank | 1/4" | 1/2" | 200' | 125' | 10,000* | 45 | 4 |
| 1275HPL-D-12-A | Air Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 52 | 4 |
| 1275HPL-D-12-E | Electric Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 70 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
