Built for dual hydraulic emergency rescue systems and other high-pressure hydraulic tools, the Coxreels 1275HPL-D-12 1275HP Series hose reel provides manual rim rewind storage for paired hydraulic hose runs. With 1/4" hose I.D., 200 ft hose capacity, and a 10,000 PSI maximum pressure rating, this reel is suited for applications where long hydraulic lines must be deployed, retrieved, and stored without sacrificing high-pressure capability.
This less-hose model allows buyers to install hose assemblies that match their hydraulic tool system, fitting requirements, and fluid compatibility. The D outlet configuration provides M14 x 1.5 female outlets, while the dual 90° full-flow swivel inlets, low-profile outlet risers, and open drum slot help support a flatter hose wrap for cleaner storage in rescue vehicles, service trucks, and fixed hydraulic tool stations.

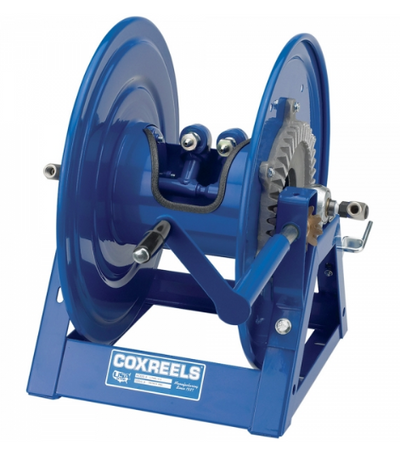

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Dual Hydraulic Hose Reel | Series: 1275HP Series | Model: 1275HPL-D-12 | Configuration: Less Hose | Rewind Type: Rim Rewind | Hose I.D.: 1/4" | Hose O.D.: 1/2" | Hose Capacity: 200 ft | Max Pressure: 10,000 PSI | Outlet: M14 x 1.5 Female | Ship Weight: 52 lbs | Overall Dimensions: 23.25" W x 19.13" H x 17.63" L | Mounting Pattern: 15.44" M x 10" N | Base: 17.38" X x 16" Y
Features:
- Rim rewind operation provides simple manual hose retrieval without an electric or air motor.
- Two high pressure 90° full-flow melanized steel 1/4" swivel inlets support dual hydraulic hose routing.
- VITON swivel seals help support demanding hydraulic service where seal compatibility is critical.
- Two low-profile outlet risers and open drum slot design help create a flat, smooth hose wrap.
- Sturdy all-welded steel "A" frame construction strengthens the reel structure without a bolted frame.
- Permanently lubricated, self-aligning pillow block bearings support smooth reel rotation.
- CNC-spun ribbed discs with rolled edges help protect hose and improve handling safety around the reel.
- Chip-resistant and rust-inhibiting CPC powder coat finish helps protect the reel in shop, vehicle, and field environments.
Made in USA:
Applications:
- Emergency rescue equipment - storing and deploying paired hydraulic lines for rescue tools and power units.
- Service trucks and utility vehicles - managing long hydraulic hose runs on mobile maintenance platforms.
- Industrial hydraulic tool stations - organizing high-pressure hose for plant maintenance, repair, and equipment service.
- Municipal and fleet maintenance - supporting cleaner hose handling where hydraulic tools are used repeatedly.
- Shop and field repair areas - keeping hydraulic hose off floors, truck beds, and work areas to reduce kinks and trip hazards.
FAQs:
- Q: What does less hose mean on the 1275HPL-D-12?
A: It means the reel is supplied without hose installed. The buyer must provide compatible 1/4" I.D. hydraulic hose separately and confirm pressure rating, fittings, and bend radius before installation. - Q: What is rim rewind?
A: Rim rewind is a manual rewind style where the operator turns the reel rim to retrieve the hose. It avoids the added complexity of electric or air motor rewind systems. - Q: What does the D outlet option specify?
A: The D outlet configuration indicates M14 x 1.5 female outlets. This is important because the hose assemblies and adapters must match the reel outlet style. - Q: Can this reel be used for hydraulic rescue tools?
A: Yes, the 1275HP Series is built for dual hydraulic emergency rescue systems and other high-pressure hydraulic tools when the hose, fittings, pressure rating, and fluid compatibility match the equipment requirements. - Q: Is this the correct choice when 135 ft of hose capacity is not enough?
A: Yes, this 12-size model provides 200 ft capacity for 1/4" I.D. hose. It is the longer-capacity option compared with 1275HP models configured for 135 ft hose capacity.
| LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|
| LESS HOSE SKU | DESCRIPTION | INLET | OUTLET | CAPACITY 1/4" I.D. |
CAPACITY 3/8" I.D. |
PSI | APRX. LBS |
|
|
1125HP SERIES 10,000 psi - two 1/4" 90° inlets. These reels are an essential component to operate hydraulic tools requiring 10,000 psi can be easily managed safely for efficient use in emergency situations.
|
||||||||
| 1275HPL-D-8 | Rim Rewind | 1/4" | 1/2" | 135' | 85' | 10,000* | 37 | 3 |
| 1275HPL-D-8-C | Geared Crank | 1/4" | 1/2" | 135' | 85' | 10,000* | 43 | 3 |
| 1275HPL-D-8-A | Air Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 50 | 3 |
| 1275HPL-D-8-E | Electric Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 68 | 3 |
| 1275HPL-D-12 | Rim Rewind | 1/4" | 1/2" | 200' | 125' | 10,000* | 39 | 4 |
| 1275HPL-D-12-C | Geared Crank | 1/4" | 1/2" | 200' | 125' | 10,000* | 45 | 4 |
| 1275HPL-D-12-A | Air Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 52 | 4 |
| 1275HPL-D-12-E | Electric Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 70 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Hand Crank Rim Rewind Hose Reel
- Series
- 1275HP Series
- Hose Inside Diameter (in.)
- 1/4
- Hose Outside Diameter (in.)
- 1/2
- Hose Length (ft.)
- 200
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 10000
