When high-pressure hydraulic tool circuits need controlled hose payout without a powered rewind system, the Coxreels 1275HPL-D-12-C provides a dual-hydraulic reel platform for rescue tools, hydraulic equipment, and other high-pressure service. This 1275HP Series reel is built for 1/4" I.D. hose with up to 200 ft hose capacity, giving crews the reach needed for mobile service vehicles, hydraulic rescue setups, and shop installations where long hose runs must stay organized. Its 10,000 PSI maximum pressure rating supports demanding hydraulic applications, while the bevel geared hand crank rewind gives the operator mechanical control for smooth retrieval without requiring electric, air, or hydraulic rewind power.
The 1275HPL-D-12-C uses dual plumbing for paired hydraulic hose lines, with two high-pressure 90° full-flow melanized steel swivel inlets and two low-profile outlet risers. The open drum slot helps hose lay flatter during rewind, reducing the chance of crimping or uneven wrap. Outlet option D indicates M14 x 1.5 female outlets, making this model a fit where that connection style is required by the hydraulic tool or system layout.

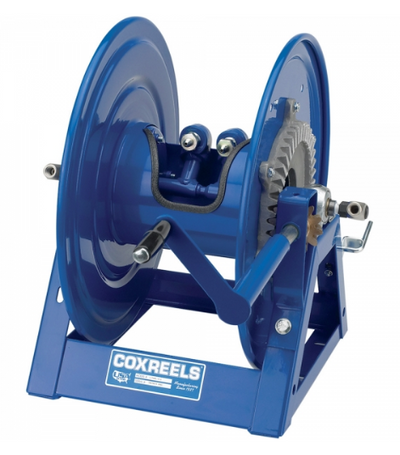

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Bevel Geared Hand Crank Dual Hydraulic Hose Reel | Series: 1275HP Series | Model: 1275HPL-D-12-C | Configuration: Less Hose | Hose I.D.: 1/4" | Hose O.D.: 1/2" | Hose Capacity: 200 ft | Max Pressure: 10,000 PSI | Outlet Option: D - M14 x 1.5 Female | Rewind: Bevel Geared Hand Crank | Swivel Inlets: Two 1/4" 90° Full-Flow Melanized Steel | Swivel Seals: VITON | Ship Weight: 45 lbs | Overall Dimensions: 21.5" W x 18.63" H x 17.63" L | Mounting Pattern: 15.44" M x 10" N | Base: 17.38" X x 15.38" Y
Features:
- Dual hydraulic design supports paired hose lines used with high-pressure hydraulic tools and emergency rescue systems.
- Bevel geared hand crank rewind provides controlled manual retrieval where powered rewind is not required or not preferred.
- Two high-pressure 90° full-flow melanized steel 1/4" swivel inlets help maintain fluid flow while the reel rotates.
- VITON swivel seals support compatibility with hydraulic service environments where high-pressure sealing is critical.
- Two low-profile outlet risers and open drum slot design help create a flatter, smoother hose wrap with reduced crimping risk.
- One-piece all welded steel "A" frame construction adds rigidity for vehicle, shop, and equipment-mounted installations.
- CNC spun ribbed discs with rolled edges help protect the hose during payout and rewind.
- Permanently lubricated self-aligning pillow block bearings support smooth reel rotation with reduced routine service demands.
Made in USA:
Applications:
- Hydraulic rescue systems: Managing paired high-pressure hose lines for rescue tools where quick access, organized storage, and controlled rewind are important.
- Mobile service vehicles: Storing long hydraulic hose runs on trucks, trailers, and field-service units without relying on powered rewind components.
- Industrial MRO: Keeping hydraulic tool hoses organized near presses, pumps, maintenance stations, and plant equipment service areas.
- Construction and utility support: Handling high-pressure hydraulic hose for portable tools used around jobsite equipment and service operations.
- Fleet and equipment shops: Reducing hose clutter while keeping 200 ft of dual hydraulic hose capacity available for maintenance and repair work.
FAQs:
- Q: What does less hose mean on the 1275HPL-D-12-C?
A: It means the reel is supplied without hose installed. The buyer must provide compatible 1/4" I.D. hydraulic hose separately and confirm that the hose, fittings, and working pressure match the application. - Q: What is outlet option D?
A: Outlet option D indicates M14 x 1.5 female outlets. This connection style should be checked against the hydraulic tool, hose assembly, and fitting requirements before ordering. - Q: Is this reel for air, water, or hydraulic service?
A: This model is part of the Coxreels 1275HP Series for dual hydraulic applications. It is rated for high-pressure hydraulic hose management up to 10,000 PSI, not general low-pressure air or water service. - Q: Why choose a hand crank model instead of a motorized reel?
A: A bevel geared hand crank reel gives the operator direct control over rewind and avoids the need for electric, air, or hydraulic rewind power. It is useful for service vehicles, rescue setups, and installations where simple manual retrieval is preferred. - Q: Can this reel hold the full 200 ft hose length listed in the title?
A: Yes, this model is listed with 200 ft capacity for 1/4" I.D. hose with 1/2" O.D. Actual fit should still be verified if using a hose with different outside diameter, fitting bulk, or protective sleeving.
| LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|
| LESS HOSE SKU | DESCRIPTION | INLET | OUTLET | CAPACITY 1/4" I.D. |
CAPACITY 3/8" I.D. |
PSI | APRX. LBS |
|
|
1125HP SERIES 10,000 psi - two 1/4" 90° inlets. These reels are an essential component to operate hydraulic tools requiring 10,000 psi can be easily managed safely for efficient use in emergency situations.
|
||||||||
| 1275HPL-D-8 | Rim Rewind | 1/4" | 1/2" | 135' | 85' | 10,000* | 37 | 3 |
| 1275HPL-D-8-C | Geared Crank | 1/4" | 1/2" | 135' | 85' | 10,000* | 43 | 3 |
| 1275HPL-D-8-A | Air Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 50 | 3 |
| 1275HPL-D-8-E | Electric Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 68 | 3 |
| 1275HPL-D-12 | Rim Rewind | 1/4" | 1/2" | 200' | 125' | 10,000* | 39 | 4 |
| 1275HPL-D-12-C | Geared Crank | 1/4" | 1/2" | 200' | 125' | 10,000* | 45 | 4 |
| 1275HPL-D-12-A | Air Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 52 | 4 |
| 1275HPL-D-12-E | Electric Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 70 | 4 |
