When paired hydraulic lines need controlled storage on a compact reel, the Coxreels 1275HPL-D-8-C provides a bevel geared hand crank solution for high-pressure dual hydraulic service. This 1275HP Series reel is configured for 1/4" I.D. hose with 135 ft hose capacity and a 10,000 PSI maximum pressure rating, giving maintenance teams, rescue equipment technicians, and hydraulic tool users a practical way to manage two hose runs without a spring or motor rewind system. The bevel geared crank assists manual retrieval by transferring crank motion through a gear set, helping the operator rewind hose in a more controlled manner than a plain rim rewind setup.
Built for dual hydraulic emergency rescue systems and other high-pressure hydraulic tools, the 1275HPL-D-8-C uses two high-pressure 90° full-flow melanized steel 1/4" swivel inlets with VITON swivel seals. VITON is a fluoroelastomer seal material commonly used where hydraulic fluid resistance and pressure capability are important. Two low-profile outlet risers and an open drum slot help support a flat, smooth hose wrap, while the welded steel "A" frame, ribbed discs, rolled edges, and permanently lubricated pillow block bearings give the reel a stable structure for vehicle, shop, and equipment-mounted installations.

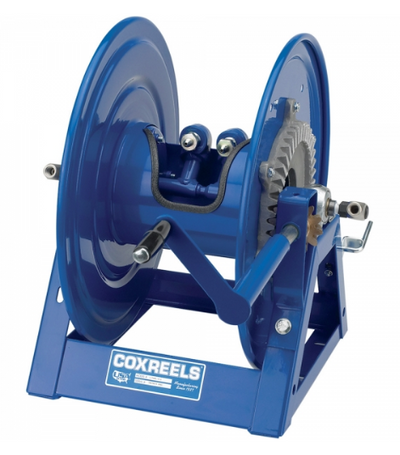

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Bevel Geared Hand Crank Hose Reel | Series: 1275HP Series | Configuration: Less Hose | Application: Dual Hydraulics | Outlet Option: D, M14 x 1.5 Female | Hose I.D.: 1/4" | Hose O.D.: 1/2" | Hose Capacity: 135 ft | Max Pressure: 10,000 PSI | Hose Included: No | Ship Weight: 43 lbs
Features:
- Bevel geared hand crank rewind provides controlled manual hose retrieval without relying on spring tension or a powered motor.
- Dual hydraulic configuration is built for emergency rescue systems and other high-pressure hydraulic tools using paired hose lines.
- Two high-pressure 90° full-flow melanized steel 1/4" swivel inlets help route hydraulic flow into the reel while supporting high-pressure service.
- VITON swivel seals provide fluid-resistant sealing performance for hydraulic oil applications.
- Two low-profile outlet risers and an open drum slot design help create a flat, smooth hose wrap with reduced crimping during storage.
- CNC-spun ribbed discs with rolled edges add strength, help protect the hose, and improve handling safety around the reel edges.
- One-piece CNC robotically welded 12-gauge steel "A" frame base provides a rigid mounting platform with the mounting pattern located in the steel base.
- Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation during payout and rewind.
Made in USA:
Applications:
- Emergency rescue systems: Managing paired hydraulic hoses used with rescue tools where high-pressure capability and controlled rewind are required.
- Hydraulic tool stations: Organizing supply and return lines for high-pressure hydraulic tools in maintenance bays, workshops, and field service setups.
- Service trucks and fleet support: Mounting dual hydraulic hose storage on mobile repair units where compact installation and manual rewind control matter.
- Industrial MRO: Keeping hydraulic hoses off the floor to reduce clutter, improve access, and limit hose damage around equipment service areas.
- Repair and test benches: Supporting repeatable hydraulic service workflows that need hose payout, retrieval, and storage without powered rewind components.
FAQs:
- Q: What does less hose mean on the 1275HPL-D-8-C?
A: It means the reel is supplied without hose installed. The buyer must provide compatible 1/4" I.D., 1/2" O.D. hydraulic hose separately. - Q: What is the difference between this model and a rim rewind version?
A: The 1275HPL-D-8-C uses a bevel geared hand crank rewind, while a rim rewind model is wound directly by the rim. The geared crank style gives the operator a dedicated crank mechanism for controlled manual retrieval. - Q: What does the D outlet option mean?
A: The Coxreels outlet option chart identifies D as M14 x 1.5 Female. Confirm that this outlet style matches the hose ends and hydraulic equipment being used before ordering. - Q: Can this hose reel be used at 10,000 PSI?
A: Yes, this model is listed with a 10,000 PSI maximum pressure rating. The hose, fittings, adapters, and hydraulic system must also be rated for the pressure used in the application. - Q: Is this reel suitable for a rescue tool hydraulic hose?
A: Yes, Coxreels lists the 1275HP Series for dual hydraulic emergency rescue systems and other high-pressure hydraulic tools. Always verify hose size, outlet type, and pressure rating against the rescue equipment manufacturer's requirements.
| LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|
| LESS HOSE SKU | DESCRIPTION | INLET | OUTLET | CAPACITY 1/4" I.D. |
CAPACITY 3/8" I.D. |
PSI | APRX. LBS |
|
|
1125HP SERIES 10,000 psi - two 1/4" 90° inlets. These reels are an essential component to operate hydraulic tools requiring 10,000 psi can be easily managed safely for efficient use in emergency situations.
|
||||||||
| 1275HPL-D-8 | Rim Rewind | 1/4" | 1/2" | 135' | 85' | 10,000* | 37 | 3 |
| 1275HPL-D-8-C | Geared Crank | 1/4" | 1/2" | 135' | 85' | 10,000* | 43 | 3 |
| 1275HPL-D-8-A | Air Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 50 | 3 |
| 1275HPL-D-8-E | Electric Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 68 | 3 |
| 1275HPL-D-12 | Rim Rewind | 1/4" | 1/2" | 200' | 125' | 10,000* | 39 | 4 |
| 1275HPL-D-12-C | Geared Crank | 1/4" | 1/2" | 200' | 125' | 10,000* | 45 | 4 |
| 1275HPL-D-12-A | Air Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 52 | 4 |
| 1275HPL-D-12-E | Electric Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 70 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
