Built for dual hydraulic emergency rescue systems and high-pressure hydraulic tool circuits, the Coxreels 1275HPL-C-8 is a 1275HP Series rim rewind hose reel with 1/4" hose I.D. capacity for up to 135 ft of hose and a 10,000 PSI maximum pressure rating. The dual hydraulic configuration gives rescue crews, service trucks, and hydraulic maintenance teams a controlled way to store twin-line hose assemblies instead of leaving high-pressure hose loose on the floor, vehicle bed, or equipment compartment.
This reel is supplied less hose and uses outlet option C, identified by Coxreels as 1/4" BSP Female. Rim rewind operation keeps the reel manually controlled without requiring a motor package, while the open drum slot and two low-profile outlet risers help support a flatter, smoother hose wrap when properly matched hose is installed.

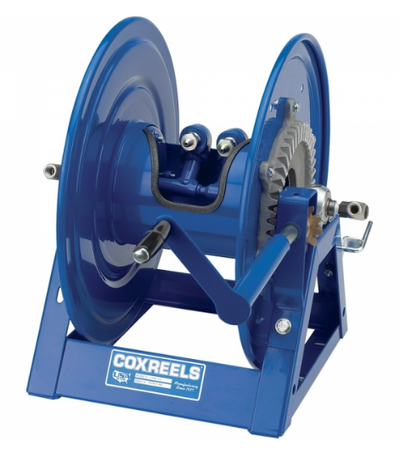

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Dual Hydraulic Rim Rewind Hose Reel | Series: 1275HP Series | Model: 1275HPL-C-8 | Configuration: Less Hose | Hose I.D.: 1/4" | Hose O.D.: 1/2" | Hose Capacity: 135 ft | Max Pressure: 10,000 PSI | Outlet Option: C, 1/4" BSP Female | Inlet: Two 90° full-flow melanized steel 1/4" swivel inlets | Swivel Seals: VITON | Rewind Type: Rim Rewind | Hose Included: No | Ship Weight: 37 lbs
Features:
- Built for dual hydraulic emergency rescue systems and other high-pressure hydraulic tools requiring paired hose lines.
- Rim rewind design gives the operator manual control over hose payout and retrieval without adding a motorized rewind system.
- Two high-pressure 90° full-flow melanized steel 1/4" swivel inlets support separate hydraulic supply and return paths through the reel.
- VITON swivel seals support hydraulic service within the manufacturer's stated pressure rating.
- Two low-profile outlet risers and open drum slot design help create a non-crimping, flat, smooth hose wrap.
- All-welded steel A frame construction strengthens the reel structure compared with bolted frame assemblies.
- Permanently lubricated, self-aligning pillow block bearings support smooth reel rotation with reduced bearing maintenance.
- CPC powder coat finish helps resist chips and rust in truck-mounted, shop, and field service environments.
Made in USA:
Applications:
- Fire and rescue equipment - managing twin hydraulic hose lines for rescue cutters, spreaders, rams, and similar emergency tools.
- Mobile hydraulic service trucks - keeping high-pressure hose stored neatly between field service calls and roadside repairs.
- Industrial maintenance areas - organizing hydraulic hose used around presses, power units, machinery, and hydraulic tool stations.
- Utility and fleet operations - mounting a compact dual hydraulic reel where crews need 135 ft of controlled hose reach.
- Shop and facility installations - reducing hose clutter around fixed hydraulic power sources and high-pressure service points.
FAQs:
- Q: What does less hose mean?
A: It means the reel is supplied without hose installed. The buyer must provide compatible 1/4" I.D. hydraulic hose separately and stay within the reel's 135 ft capacity and 10,000 PSI pressure rating. - Q: Is the 1275HPL-C-8 a motorized reel?
A: No. This model is a rim rewind reel, which means hose retrieval is manually controlled at the reel. Motorized versions use additional suffixes such as air or electric motor rewind configurations. - Q: What does outlet option C mean on this Coxreels model?
A: Outlet option C indicates 1/4" BSP Female outlets. Confirm BSP thread compatibility with the hose fittings and hydraulic tool connections before ordering. - Q: Can this reel be used for emergency rescue hydraulic tools?
A: Yes, the 1275HP Series is built for dual hydraulic emergency rescue systems and other high-pressure hydraulic tools when the hose, fittings, hydraulic fluid, and pressure rating match the system requirements. - Q: Does this reel include the hydraulic hose?
A: No. This SKU is sold as a reel only. Hose selection should be based on required pressure rating, I.D., O.D., length, fitting style, fluid compatibility, and bend radius.
| LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|
| LESS HOSE SKU | DESCRIPTION | INLET | OUTLET | CAPACITY 1/4" I.D. |
CAPACITY 3/8" I.D. |
PSI | APRX. LBS |
|
|
1125HP SERIES 10,000 psi - two 1/4" 90° inlets. These reels are an essential component to operate hydraulic tools requiring 10,000 psi can be easily managed safely for efficient use in emergency situations.
|
||||||||
| 1275HPL-C-8 | Rim Rewind | 1/4" | 1/2" | 135' | 85' | 10,000* | 37 | 3 |
| 1275HPL-C-8-C | Geared Crank | 1/4" | 1/2" | 135' | 85' | 10,000* | 43 | 3 |
| 1275HPL-C-8-A | Air Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 50 | 3 |
| 1275HPL-C-8-E | Electric Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 68 | 3 |
| 1275HPL-C-12 | Rim Rewind | 1/4" | 1/2" | 200' | 125' | 10,000* | 39 | 4 |
| 1275HPL-C-12-C | Geared Crank | 1/4" | 1/2" | 200' | 125' | 10,000* | 45 | 4 |
| 1275HPL-C-12-A | Air Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 52 | 4 |
| 1275HPL-C-12-E | Electric Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 70 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Hand Crank Rim Rewind Hose Reel
- Series
- 1275HP Series
- Hose Inside Diameter (in.)
- 1/4
- Hose Outside Diameter (in.)
- 1/2
- Hose Length (ft.)
- 135
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 10000
