When paired high-pressure hydraulic lines need organized storage without a powered rewind system, the Coxreels 1275HPL-C-12 provides a manual rim rewind reel platform for dual hydraulic hose assemblies. This 1275HP Series reel is built for 1/4" I.D. hose with up to 200 ft hose capacity and a 10,000 PSI maximum pressure rating, making it a practical choice for hydraulic rescue systems, service vehicles, and high-pressure tool setups where hose reach and pressure capability must be matched carefully.
The rim rewind configuration gives the operator direct manual control over hose retrieval, while the dual hydraulic layout uses two high-pressure 90° swivel inlets and two low-profile outlet risers to manage paired hydraulic lines on the same reel. The C outlet option identifies the outlet configuration as 1/4" BSP Female, which should be confirmed against the buyer's hose fittings, adapters, and hydraulic tool connections before installation.

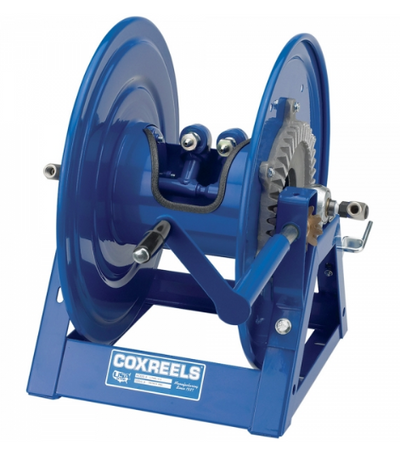

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Dual Hydraulic Hand Crank Rim Rewind Hose Reel | Series: 1275HP Series | Model: 1275HPL-C-12 | Configuration: Less Hose | Rewind: Hand Crank Rim Rewind | Hose I.D.: 1/4" | Hose O.D.: 1/2" | Hose Capacity: 200 ft | Max Pressure: 10,000 PSI | Outlet Option: C - 1/4" BSP Female | Swivel Inlets: Two high pressure 90° full-flow melanized steel 1/4" swivel inlets | Swivel Seals: VITON | Ship Weight: 39 lbs | Overall Dimensions: 21.5" W x 18.63" H x 17.63" L | Mounting Pattern: 15.44" M x 10" N | Base: 17.38" X x 15.38" Y
Features:
- Dual hydraulic reel configuration supports paired hose routing for rescue tools, high-pressure hydraulic tools, and service equipment.
- Rim rewind design gives the operator direct manual control over hose retrieval without requiring air or electric motor power.
- Two high pressure 90° full-flow melanized steel 1/4" swivel inlets help maintain flow through the reel connection point.
- VITON swivel seals support high-pressure hydraulic service where seal compatibility is an important selection factor.
- Two low profile outlet risers and open drum slot design help provide a flatter hose wrap and reduce crimping risk during winding.
- One-piece all welded steel A frame base adds rigidity and provides a stable mounting structure for truck, shop, or equipment installations.
- CNC robotically spun and ribbed discs with rolled edges add strength while helping protect hose during payout and rewind.
- Chip-resistant, rust-inhibiting CPC powder coat finish helps protect the reel body in service, garage, and emergency response environments.
Made in USA:
Applications:
- Hydraulic rescue tool systems where paired high-pressure lines need organized storage between emergency response calls.
- Service and mechanic trucks carrying hydraulic hose assemblies for field maintenance, repair, and mobile equipment support.
- Garage and fleet maintenance areas using high-pressure hydraulic tools that require clean hose routing and manual rewind.
- Construction, railroad, and mining operations where hydraulic hose control helps reduce loose hose around work zones.
- Crane and equipment service applications that require a reel-only platform for custom high-pressure hydraulic hose selection.
FAQs:
- Q: What does less hose mean on the 1275HPL-C-12?
A: It means this reel is supplied without hose installed. The buyer must provide compatible 1/4" I.D., 1/2" O.D. hydraulic hose separately and confirm the hose pressure rating before use. - Q: What does the C in 1275HPL-C-12 indicate?
A: The C identifies the outlet option as 1/4" BSP Female. This connection should be checked against the hose ends, adapters, and hydraulic tools used in the system. - Q: Is this the same as the geared crank version?
A: No. The 1275HPL-C-12 is a hand crank rim rewind model. Coxreels also offers geared crank and motorized versions in the 1275HP Series for users who prefer a different rewind method. - Q: Can this reel be used for air or water hose?
A: This model is specified for dual hydraulic use and includes high-pressure hydraulic swivel and outlet details. Air or water applications should use a reel series rated and configured for those services. - Q: Why is hose outside diameter important?
A: Hose O.D. affects how much hose can fit on the drum. To obtain the full 200 ft capacity, do not exceed the listed 1/2" hose O.D.
| LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|
| LESS HOSE SKU | DESCRIPTION | INLET | OUTLET | CAPACITY 1/4" I.D. |
CAPACITY 3/8" I.D. |
PSI | APRX. LBS |
|
|
1125HP SERIES 10,000 psi - two 1/4" 90° inlets. These reels are an essential component to operate hydraulic tools requiring 10,000 psi can be easily managed safely for efficient use in emergency situations.
|
||||||||
| 1275HPL-C-8 | Rim Rewind | 1/4" | 1/2" | 135' | 85' | 10,000* | 37 | 3 |
| 1275HPL-C-8-C | Geared Crank | 1/4" | 1/2" | 135' | 85' | 10,000* | 43 | 3 |
| 1275HPL-C-8-A | Air Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 50 | 3 |
| 1275HPL-C-8-E | Electric Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 68 | 3 |
| 1275HPL-C-12 | Rim Rewind | 1/4" | 1/2" | 200' | 125' | 10,000* | 39 | 4 |
| 1275HPL-C-12-C | Geared Crank | 1/4" | 1/2" | 200' | 125' | 10,000* | 45 | 4 |
| 1275HPL-C-12-A | Air Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 52 | 4 |
| 1275HPL-C-12-E | Electric Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 70 | 4 |
