When high-pressure dual hydraulic lines need organized storage and controlled rewind, the Coxreels 1275HPL-C-8-C provides a bevel geared hand crank reel built for emergency rescue systems and other hydraulic tool circuits. This 1275HP Series reel is configured for 1/4" hose I.D., 135 ft hose capacity, and 10,000 PSI maximum pressure, giving service teams a compact reel platform for paired hydraulic hose runs where pressure rating and hose management both matter.
The 1275HP Series uses dual hydraulic plumbing with two high-pressure 90° full-flow swivel inlets, low-profile outlet risers, and an open drum slot to help hose lay flat during wrap-up. Its bevel gear hand crank with removable handle gives operators manual rewind control while keeping the reel easier to store when not in use.

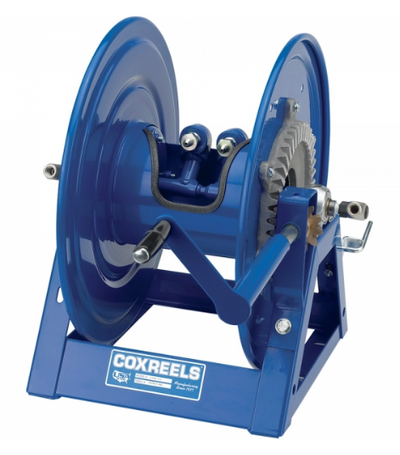

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Bevel Geared Hand Crank Dual Hydraulic Hose Reel | Series: 1275HP Series | Model: 1275HPL-C-8-C | Configuration: Less Hose | Hose I.D.: 1/4" | Hose O.D.: 1/2" | Hose Capacity: 135 ft | Max Pressure: 10,000 PSI | Hose Included: No | Swivel Inlets: Two high-pressure 90° full-flow melanized steel 1/4" swivel inlets | Swivel Seals: VITON | Overall Dimensions: 17.5" W x 18.63" H x 17.63" L | Mounting Pattern: 11.44" M x 10" N | Base: 13.38" X x 15.38" Y | Ship Weight: 43 lbs
Features:
- Dual hydraulic reel layout supports paired high-pressure hose runs used with hydraulic rescue tools and other high-pressure hydraulic equipment.
- Two high-pressure 90° full-flow melanized steel swivel inlets help route fluid through the reel while reducing restriction at the inlet point.
- VITON swivel seals support high-pressure hydraulic service where seal compatibility is a key maintenance concern.
- Bevel gear hand crank rewind gives the operator controlled manual hose retrieval, while the removable handle supports compact storage.
- Two low-profile outlet risers and open drum slot design help the hose wrap flat and reduce crimping during reel-up.
- One-piece CNC robotically welded 12-gauge steel “A” frame base provides a rigid mounting structure without a bolted frame joint.
- CNC spun ribbed discs with rolled edges add strength while helping protect hose and improve safety around the reel edge.
- Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation during repeated rewind cycles.
Made in USA:
Applications:
- Emergency rescue hydraulic systems where paired hose lines must stay organized and ready for deployment.
- High-pressure hydraulic tool service on mobile equipment, rescue rigs, and maintenance vehicles.
- Industrial MRO areas that require compact storage for dual hydraulic hose runs without hose supplied on the reel.
- Hydraulic power unit setups where manual rewind control is preferred over spring or motorized rewind.
- Fleet, utility, and service truck installations where mounting footprint, pressure rating, and hose capacity must be checked before installation.
FAQs:
- Q: What does less hose mean on the 1275HPL-C-8-C?
A: It means this reel is supplied without hose installed. The reel has capacity for 135 ft of compatible 1/4" I.D. hose, but the buyer must provide hose separately. - Q: What is this Coxreels 1275HP Series reel used for?
A: It is built for dual hydraulic applications, including emergency rescue systems and other high-pressure hydraulic tools. The dual reel layout helps manage two hydraulic hose lines on one reel. - Q: Is this a spring rewind hose reel?
A: No. This SKU uses a bevel geared hand crank rewind, which means the operator manually winds the reel using the crank handle rather than relying on spring retraction. - Q: Can I mount this reel in a service truck or rescue vehicle?
A: Yes, when the available space, mounting surface, hose routing, and hydraulic system pressure match the reel specifications. Check the 17.5" W x 18.63" H x 17.63" L overall dimensions and 11.44" x 10" mounting pattern before installation. - Q: Does the 10,000 PSI rating apply to any hose installed on the reel?
A: No. The reel is rated for up to 10,000 PSI, but the installed hose, fittings, and system components must also be rated for the application. Always match the complete hydraulic circuit to the required working pressure.
| LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|
| LESS HOSE SKU | DESCRIPTION | INLET | OUTLET | CAPACITY 1/4" I.D. |
CAPACITY 3/8" I.D. |
PSI | APRX. LBS |
|
|
1125HP SERIES 10,000 psi - two 1/4" 90° inlets. These reels are an essential component to operate hydraulic tools requiring 10,000 psi can be easily managed safely for efficient use in emergency situations.
|
||||||||
| 1275HPL-C-8 | Rim Rewind | 1/4" | 1/2" | 135' | 85' | 10,000* | 37 | 3 |
| 1275HPL-C-8-C | Geared Crank | 1/4" | 1/2" | 135' | 85' | 10,000* | 43 | 3 |
| 1275HPL-C-8-A | Air Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 50 | 3 |
| 1275HPL-C-8-E | Electric Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 68 | 3 |
| 1275HPL-C-12 | Rim Rewind | 1/4" | 1/2" | 200' | 125' | 10,000* | 39 | 4 |
| 1275HPL-C-12-C | Geared Crank | 1/4" | 1/2" | 200' | 125' | 10,000* | 45 | 4 |
| 1275HPL-C-12-A | Air Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 52 | 4 |
| 1275HPL-C-12-E | Electric Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 70 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
