Built for dual-line hydraulic rescue systems and high-pressure hydraulic tool circuits, the Coxreels 1275HPL-C-12-C is a 1275HP Series bevel geared hand crank hose reel with capacity for 200 ft of 1/4" I.D. hose at up to 10,000 PSI. The dual hydraulic layout uses two high-pressure 90° full-flow melanized steel swivel inlets and low-profile outlet risers to help route supply and return lines smoothly through the reel, making it a practical choice for rescue trucks, service vehicles, hydraulic tool storage, and other applications where paired hoses must be stored together without tangling.
The 1275HP Series is built around Coxreels’ welded steel “A” frame with rolled, ribbed discs and permanently lubricated self-aligning pillow block bearings. On this model, the C outlet option indicates 1/4" BSP female outlets, while the geared crank rewind gives the user controlled manual hose retrieval without relying on spring rewind or electric power.

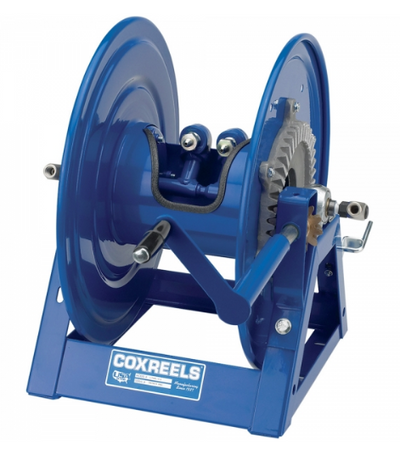

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Dual Hydraulic Hose Reel | Brand: Coxreels | Model: 1275HPL-C-12-C | Series: 1275HP Series | Rewind Type: Bevel Geared Hand Crank | Configuration: Less Hose | Hose I.D.: 1/4" | Hose O.D.: 1/2" | Hose Capacity: 200 ft | Max Pressure: 10,000 PSI | Outlet Option: C, 1/4" BSP Female | Swivel: Two 90° Full-Flow Melanized Steel Inlets | Seal Type: Viton | Overall Dimensions: 21.5" W x 18.625" H x 17.625" L | Mounting Pattern: 15.44" x 10" | Base Size: 17.38" x 16"
Features:
- Dual hydraulic reel configuration stores paired hose lines together for hydraulic rescue tools and other high-pressure hydraulic equipment.
- Bevel geared hand crank rewind provides controlled manual retraction for long hose runs without requiring electric or air motor power.
- Two high-pressure 90° full-flow melanized steel 1/4" swivel inlets help maintain flow through both hydraulic lines.
- Viton swivel seals support high-pressure hydraulic service where seal compatibility is critical.
- Two low-profile outlet risers and open drum slot layout help produce a flatter, smoother hose wrap.
- All-welded steel “A” frame is not bolted together, adding rigidity to the reel structure during mounting and operation.
- Rolled edges and ribbed discs add reel strength while helping protect hose during payout and rewind.
- Permanently lubricated self-aligning pillow block bearings support smooth drum rotation with reduced maintenance points.
Made in USA:
Applications:
- Fire and emergency rescue vehicles requiring organized storage for dual hydraulic rescue tool hose lines.
- Service and mechanic trucks using high-pressure hydraulic tools in mobile maintenance environments.
- Fleet maintenance shops and garage settings where paired hydraulic hoses need controlled storage and retrieval.
- Mining, construction, and railroad operations using hydraulic equipment that requires 10,000 PSI hose reel capacity.
- Crane and equipment service areas where a less-hose reel lets the buyer install hose that matches existing hydraulic tool requirements.
FAQs:
- Q: What does less hose mean on the 1275HPL-C-12-C?
A: It means the reel is supplied without hose installed. The buyer must provide compatible 1/4" I.D. hydraulic hose separately and confirm that the hose rating, fittings, and fluid compatibility match the system. - Q: What is the purpose of the dual hydraulic reel design?
A: A dual hydraulic reel stores two hose lines together, which is useful for supply and return circuits on hydraulic rescue tools and other paired hydraulic tool systems. Keeping both lines on one reel helps reduce tangles and keeps the hose path easier to manage. - Q: What does the C outlet option mean in this model number?
A: In the 1275HP Series outlet options, C indicates 1/4" BSP female outlets. Confirm that BSP fittings match your hose assembly before ordering or specify the correct outlet option for your system. - Q: Is this reel spring rewind?
A: No. This model uses a bevel geared hand crank rewind, giving the user manual control over hose retrieval. It is a practical choice when electrical power or air supply is not desired at the reel location. - Q: Can this reel be used for standard shop air or water hose?
A: This model is built for high-pressure dual hydraulic service, not general shop air or water service. For air, water, or oil transfer at lower pressure, choose a reel series matched to that media, hose size, and pressure rating.
| LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|
| LESS HOSE SKU | DESCRIPTION | INLET | OUTLET | CAPACITY 1/4" I.D. |
CAPACITY 3/8" I.D. |
PSI | APRX. LBS |
|
|
1125HP SERIES 10,000 psi - two 1/4" 90° inlets. These reels are an essential component to operate hydraulic tools requiring 10,000 psi can be easily managed safely for efficient use in emergency situations.
|
||||||||
| 1275HPL-C-8 | Rim Rewind | 1/4" | 1/2" | 135' | 85' | 10,000* | 37 | 3 |
| 1275HPL-C-8-C | Geared Crank | 1/4" | 1/2" | 135' | 85' | 10,000* | 43 | 3 |
| 1275HPL-C-8-A | Air Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 50 | 3 |
| 1275HPL-C-8-E | Electric Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 68 | 3 |
| 1275HPL-C-12 | Rim Rewind | 1/4" | 1/2" | 200' | 125' | 10,000* | 39 | 4 |
| 1275HPL-C-12-C | Geared Crank | 1/4" | 1/2" | 200' | 125' | 10,000* | 45 | 4 |
| 1275HPL-C-12-A | Air Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 52 | 4 |
| 1275HPL-C-12-E | Electric Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 70 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
