When high-pressure dual hydraulic lines need organized storage without a motorized rewind system, the Coxreels 1275HPL-4-8 1275HP Series rim rewind hose reel provides a bare reel platform for hydraulic rescue tools, service equipment, and other high-pressure hydraulic circuits. This model is configured less hose, so the reel is supplied without hose and can be paired with compatible hose selected for the application. Its 1/4" hose I.D., 135 ft hose capacity, and 10,000 PSI maximum pressure rating support long-reach, high-pressure hydraulic setups where pressure compatibility and hose control are both critical.
The 1275HP Series is built for dual hydraulic service, meaning it manages paired hydraulic lines such as supply and return hoses on one reel. The open drum slot and low-profile outlet riser layout help the hose wrap flatter on the drum, while the all-welded steel A-frame, ribbed discs, and permanently lubricated bearings support smooth rotation during payout and rewind.

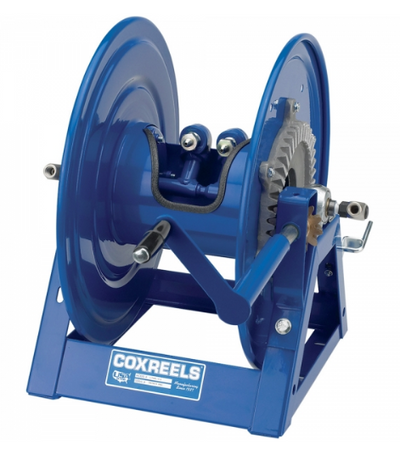

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Dual Hydraulic Rim Rewind Hose Reel | Series: 1275HP Series | Model: 1275HPL-4-8 | Configuration: Less Hose | Rewind Type: Rim Rewind | Hose I.D.: 1/4" | Hose O.D.: 1/2" | Hose Capacity: 135 ft | Max Pressure: 10,000 PSI | Hose Included: No | Ship Weight: 37 lbs
Features:
- Dual hydraulic reel construction supports paired hose management for high-pressure hydraulic tools and emergency rescue systems.
- Two high-pressure 90° full-flow melanized steel 1/4" swivel inlets support the dual hydraulic fluid path.
- VITON swivel seals are used for high-pressure hydraulic service compatibility.
- Two low-profile outlet risers and open drum slot design help create a flat, smooth hose wrap and reduce hose crimping during storage.
- Sturdy one-piece, CNC robotically welded 12-gauge steel A frame base adds rigidity without a bolted frame joint.
- CNC robotically spun and ribbed discs with rolled edges help protect the hose and improve reel safety during handling.
- Permanently lubricated, self-aligning pillow block bearings support smooth reel rotation during payout and rewind.
- Chip-resistant and rust-inhibiting CPC powder coat finish helps protect the reel surface in shop, truck, and equipment environments.
Made in USA:
Applications:
- Hydraulic rescue systems where long paired hose runs must be stored neatly and deployed quickly.
- Utility and fleet service vehicles carrying high-pressure hydraulic tools for field maintenance and repair work.
- Industrial maintenance areas where dual hydraulic hoses need controlled storage near pumps, power units, or service stations.
- Mobile equipment service operations using compatible 1/4" hydraulic hose for high-pressure tool circuits.
- Fire, safety, and emergency response support setups where hose organization helps reduce tangling during deployment and recovery.
FAQs:
- Q: What does less hose mean on the 1275HPL-4-8?
A: It means the reel is supplied without hose installed. The buyer must select and install compatible hydraulic hose separately. - Q: Is the 1275HPL-4-8 a dual hydraulic reel?
A: Yes. The 1275HP Series is built for dual hydraulic applications, allowing paired hydraulic lines to be managed on the same reel. - Q: What hose size does this reel support?
A: This model is listed for 1/4" hose I.D. with 1/2" hose O.D. and up to 135 ft hose capacity. Confirm hose pressure rating, outside diameter, bend radius, and fitting compatibility before installation. - Q: Can this reel be used at 10,000 PSI?
A: The reel is rated for 10,000 PSI maximum pressure. The full system must also be rated appropriately, including the hose, fittings, swivels, and hydraulic power source. - Q: What is the difference between rim rewind and geared crank versions?
A: Rim rewind models are manually rewound from the reel rim. Coxreels also lists geared crank models with a -C suffix for buyers who prefer crank-assisted rewind operation.
| LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|
| LESS HOSE SKU | DESCRIPTION | INLET | OUTLET | CAPACITY 1/4" I.D. |
CAPACITY 3/8" I.D. |
PSI | APRX. LBS |
|
|
1125HP SERIES 10,000 psi - two 1/4" 90° inlets. These reels are an essential component to operate hydraulic tools requiring 10,000 psi can be easily managed safely for efficient use in emergency situations.
|
||||||||
| 1275HPL-4-8 | Rim Rewind | 1/4" | 1/2" | 135' | 85' | 10,000* | 37 | 3 |
| 1275HPL-4-8-C | Geared Crank | 1/4" | 1/2" | 135' | 85' | 10,000* | 43 | 3 |
| 1275HPL-4-8-A | Air Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 50 | 3 |
| 1275HPL-4-8-E | Electric Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 68 | 3 |
| 1275HPL-4-12 | Rim Rewind | 1/4" | 1/2" | 200' | 125' | 10,000* | 39 | 4 |
| 1275HPL-4-12-C | Geared Crank | 1/4" | 1/2" | 200' | 125' | 10,000* | 45 | 4 |
| 1275HPL-4-12-A | Air Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 52 | 4 |
| 1275HPL-4-12-E | Electric Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 70 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
