When high-pressure hydraulic lines need to stay organized, protected, and ready to deploy, the Coxreels 1275HPL-4-12 provides a dual hydraulic reel platform for rescue systems and other hydraulic tools operating at up to 10,000 PSI. This 1275HP Series rim rewind reel is built for 1/4" I.D. hose with a 200 ft hose capacity, giving crews the reach needed for service trucks, garage bays, fire rescue equipment, mining support, and construction field work without leaving long hose runs loose on the floor or vehicle deck.
The rim rewind configuration allows manual hose retrieval from the reel rim, while Coxreels' dual hydraulic design uses two high-pressure 90° full-flow melanized steel swivel inlets and low-profile outlet risers to support smooth, flat hose wrap. Its all welded steel A frame helps keep the reel structure rigid during mounting and use, and the open drum slot design helps reduce hose crimping when properly matched hose is installed.

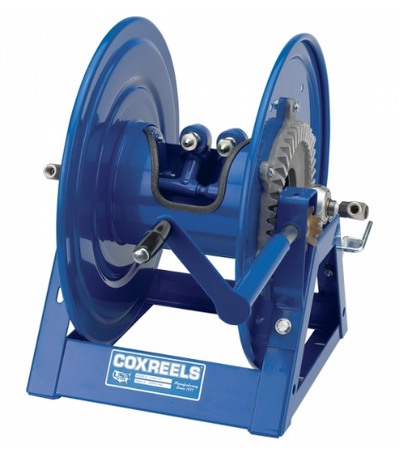

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Dual Hydraulic Hose Reel | Series: 1275HP Series | Model: 1275HPL-4-12 | Rewind Type: Rim Rewind | Configuration: Less Hose | Hose I.D.: 1/4" | Hose O.D.: 1/2" | Hose Capacity: 200 ft for 1/4" I.D. hose / 125 ft for 3/8" I.D. hose | Max Pressure: 10,000 PSI | Inlet: 1/4" | Outlet: 1/2" | Approx. Weight: 39 lbs
Features:
- Dual hydraulic configuration supports supply and return hose management for high-pressure hydraulic tools.
- Two high-pressure 90° full-flow melanized steel 1/4" swivel inlets help maintain fluid routing through the reel.
- VITON swivel seals are used for compatibility with hydraulic service requirements.
- Two low-profile outlet risers and open drum slot design help promote a flat, smooth hose wrap when the correct hose is installed.
- Sturdy all welded steel A frame construction strengthens the reel structure compared with a bolted frame design.
- Rolled edges and ribbed discs add strength while helping protect hose during rewind and payout.
- Durable proprietary CPC powder coat finish helps resist chips and corrosion in shop, vehicle, and field environments.
- Locking pin and rim rewind system provide manual control for securing and retrieving hose.
Made in USA:
Applications:
- Hydraulic rescue systems where compact, organized twin-line hose storage is required for emergency tool deployment.
- Service and mechanic trucks that need high-pressure hydraulic hose stored securely during transport.
- Garage and maintenance bays using hydraulic tools where loose hose creates clutter, trip hazards, or handling delays.
- Mining, construction, and railroad operations where hydraulic tool hoses must be managed in rugged field environments.
- Crane and equipment service work requiring controlled payout and manual rewind of hydraulic hose lines.
FAQs:
- Q: What does less hose mean on this Coxreels 1275HP reel?
A: Less hose means the reel is supplied without hose installed. The buyer must provide compatible hydraulic hose separately and verify hose size, pressure rating, fittings, and fluid compatibility before installation. - Q: Is the 1275HPL-4-12 a spring rewind reel?
A: No. This model is a manual rim rewind reel, meaning hose is rewound by rotating the reel rim. The 1275HP Series also includes geared crank, air motor, and electric motor variations for buyers who need a different rewind method. - Q: What hydraulic hose size does this reel support?
A: The catalog lists this model for 200 ft of 1/4" I.D. hose or 125 ft of 3/8" I.D. hose. Always confirm the hose outside diameter and bend radius before installation to ensure proper wrap and reel clearance. - Q: What does the 10,000 PSI rating mean for this reel?
A: The 10,000 PSI rating refers to the reels maximum listed pressure capability for compatible high-pressure hydraulic service. Installed hose, fittings, adapters, and connected tools must also be rated for the system pressure. - Q: Where is this reel commonly used?
A: This reel is commonly used with hydraulic rescue equipment, service trucks, maintenance bays, mining support, construction operations, railroad work, and other settings where dual high-pressure hydraulic hoses need controlled storage and deployment.
| LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|
| LESS HOSE SKU | DESCRIPTION | INLET | OUTLET | CAPACITY 1/4" I.D. |
CAPACITY 3/8" I.D. |
PSI | APRX. LBS |
|
|
1125HP SERIES 10,000 psi - two 1/4" 90° inlets. These reels are an essential component to operate hydraulic tools requiring 10,000 psi can be easily managed safely for efficient use in emergency situations.
|
||||||||
| 1275HPL-4-8 | Rim Rewind | 1/4" | 1/2" | 135' | 85' | 10,000* | 37 | 3 |
| 1275HPL-4-8-C | Geared Crank | 1/4" | 1/2" | 135' | 85' | 10,000* | 43 | 3 |
| 1275HPL-4-8-A | Air Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 50 | 3 |
| 1275HPL-4-8-E | Electric Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 68 | 3 |
| 1275HPL-4-12 | Rim Rewind | 1/4" | 1/2" | 200' | 125' | 10,000* | 39 | 4 |
| 1275HPL-4-12-C | Geared Crank | 1/4" | 1/2" | 200' | 125' | 10,000* | 45 | 4 |
| 1275HPL-4-12-A | Air Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 52 | 4 |
| 1275HPL-4-12-E | Electric Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 70 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
