When high-pressure hydraulic hose needs controlled storage and manual retrieval, the Coxreels 1275HPL-4-12-C provides a bevel geared hand crank solution for dual hydraulic hose applications. This 1275HP Series reel is built for 1/4" I.D. hose with a 200 ft hose capacity and a 10,000 PSI maximum pressure rating, making it suitable for hydraulic rescue systems, service vehicles, maintenance bays, and other high-pressure hydraulic tool setups where loose hose can create handling, storage, or trip-hazard problems.
The geared crank rewind helps reduce the effort required to retrieve long hose runs compared with rim rewind operation, while the dual hydraulic layout supports supply and return hose management on one reel. Coxreels uses two high-pressure 90° full-flow melanized steel swivel inlets, VITON swivel seals, and two low-profile outlet risers to help the hose wrap flat when properly selected hose is installed. The all welded steel A frame provides a rigid mounting base for shop, truck, and field installations.

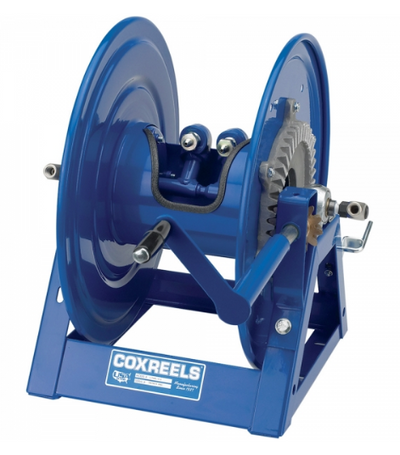

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Dual Hydraulic Hose Reel | Series: 1275HP Series | Model: 1275HPL-4-12-C | Rewind Type: Bevel Geared Hand Crank | Configuration: Less Hose | Hose I.D.: 1/4" | Hose O.D.: 1/2" | Hose Capacity: 200 ft | Max Pressure: 10,000 PSI | Inlet: 1/4" | Outlet: 1/2" | Approx. Weight: 45 lbs
Features:
- Bevel geared hand crank rewind provides controlled manual hose retrieval for long, high-pressure hydraulic hose runs.
- Dual hydraulic reel configuration supports supply and return hose storage for hydraulic tools and rescue systems.
- Two high-pressure 90° full-flow melanized steel 1/4" swivel inlets help route hydraulic fluid through the reel assembly.
- VITON swivel seals are used for hydraulic service compatibility.
- Two low-profile outlet risers and open drum slot design help create a flat, smooth hose wrap when compatible hose is installed.
- All welded steel A frame construction strengthens the reel structure compared with a bolted frame design.
- Permanently lubricated self-aligning pillow block bearings support smooth reel rotation.
- Rolled edges, ribbed discs, and CPC powder coat finish help protect the reel structure in shop, vehicle, and field environments.
Made in USA:
Applications:
- Hydraulic rescue systems where twin high-pressure hose lines must be stored and deployed in an organized layout.
- Service trucks and mobile maintenance units carrying hydraulic tools for field repair, fleet work, or equipment service.
- Garage and shop hydraulic systems where hand crank rewind is preferred over motorized retrieval.
- Mining, railroad, and construction support operations using high-pressure hydraulic tools away from fixed hose storage stations.
- Industrial MRO areas where controlled payout and rewind help keep hydraulic hose off walkways and work surfaces.
FAQs:
- Q: What does less hose mean for the 1275HPL-4-12-C?
A: It means this reel is supplied without hose installed. The buyer must provide compatible hydraulic hose separately and verify hose pressure rating, size, fittings, and fluid compatibility before use. - Q: What is the benefit of the geared hand crank version?
A: The geared crank gives the user controlled manual rewind for long hose lengths without requiring an air or electric motor. It is useful when a powered rewind system is not needed or where manual control is preferred. - Q: Can this reel be used with hydraulic rescue tools?
A: Yes, the 1275HP Series is built for dual hydraulic emergency rescue systems and other high-pressure hydraulic tools, provided the hose, fittings, and connected equipment are correctly rated for the system. - Q: What hose size should be used with this model?
A: This SKU is listed for 1/4" I.D. hose with a 1/2" O.D. and 200 ft capacity. Confirm hose outside diameter, bend radius, pressure rating, and end fittings before installation. - Q: Does the 10,000 PSI rating apply to the hose too?
A: No. The reel is rated up to 10,000 PSI, but the installed hose, fittings, adapters, and tools must also be rated for the operating pressure of the hydraulic system.
| LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|
| LESS HOSE SKU | DESCRIPTION | INLET | OUTLET | CAPACITY 1/4" I.D. |
CAPACITY 3/8" I.D. |
PSI | APRX. LBS |
|
|
1125HP SERIES 10,000 psi - two 1/4" 90° inlets. These reels are an essential component to operate hydraulic tools requiring 10,000 psi can be easily managed safely for efficient use in emergency situations.
|
||||||||
| 1275HPL-4-8 | Rim Rewind | 1/4" | 1/2" | 135' | 85' | 10,000* | 37 | 3 |
| 1275HPL-4-8-C | Geared Crank | 1/4" | 1/2" | 135' | 85' | 10,000* | 43 | 3 |
| 1275HPL-4-8-A | Air Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 50 | 3 |
| 1275HPL-4-8-E | Electric Motor | 1/4" | 1/2" | 135' | 85' | 10,000* | 68 | 3 |
| 1275HPL-4-12 | Rim Rewind | 1/4" | 1/2" | 200' | 125' | 10,000* | 39 | 4 |
| 1275HPL-4-12-C | Geared Crank | 1/4" | 1/2" | 200' | 125' | 10,000* | 45 | 4 |
| 1275HPL-4-12-A | Air Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 52 | 4 |
| 1275HPL-4-12-E | Electric Motor | 1/4" | 1/2" | 200' | 125' | 10,000* | 70 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
