Coxreels 1185-1124-EF Electric 24V DC Motor Rewind Hose Reel is designed for increased-volume delivery applications requiring powered retrieval of large-diameter hose. As part of the 1185 Series, this reel stores up to 50 ft of 1-1/2 in. I.D. hose and utilizes a 24V DC electric motor with a chain-and-sprocket drive to provide efficient powered rewind. The reel is supplied less hose, allowing users to install a compatible hose that meets their specific application requirements.
Rated for a 1,500 PSI maximum working pressure, the 1185-1124-EF features an external fluid path with an in-line full-flow NPT swivel inlet. Its exclusive low-profile outlet riser and open drum slot promote a flat, smooth, non-crimping hose wrap, while the one-piece CNC robotically welded steel A-frame provides strength for handling large-diameter hose. Permanently lubricated horizontal surface-mount bearings help ensure smooth reel rotation, and the CPC powder coat finish provides long-lasting corrosion resistance.

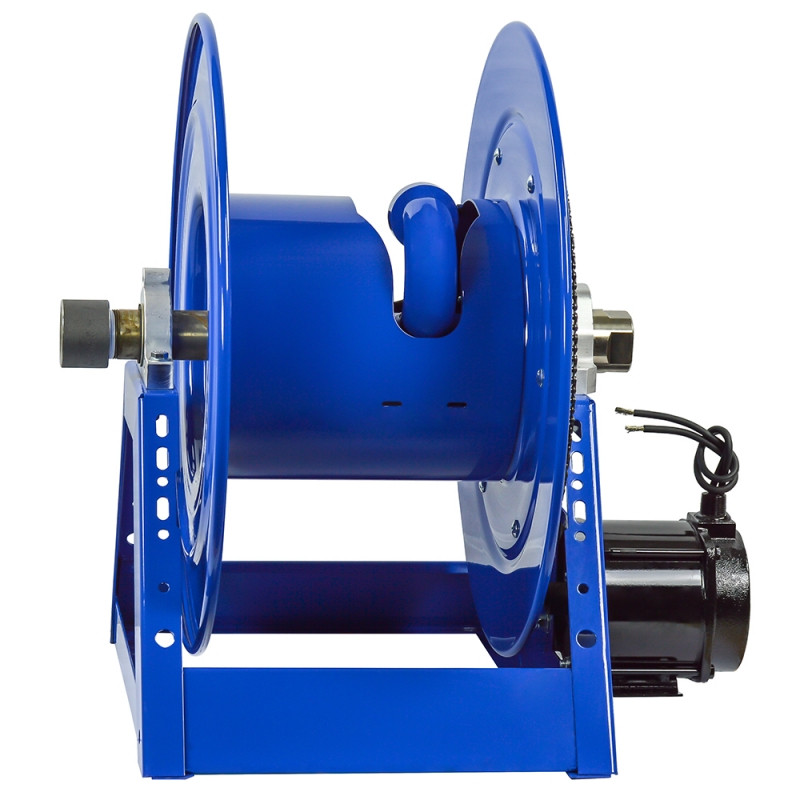

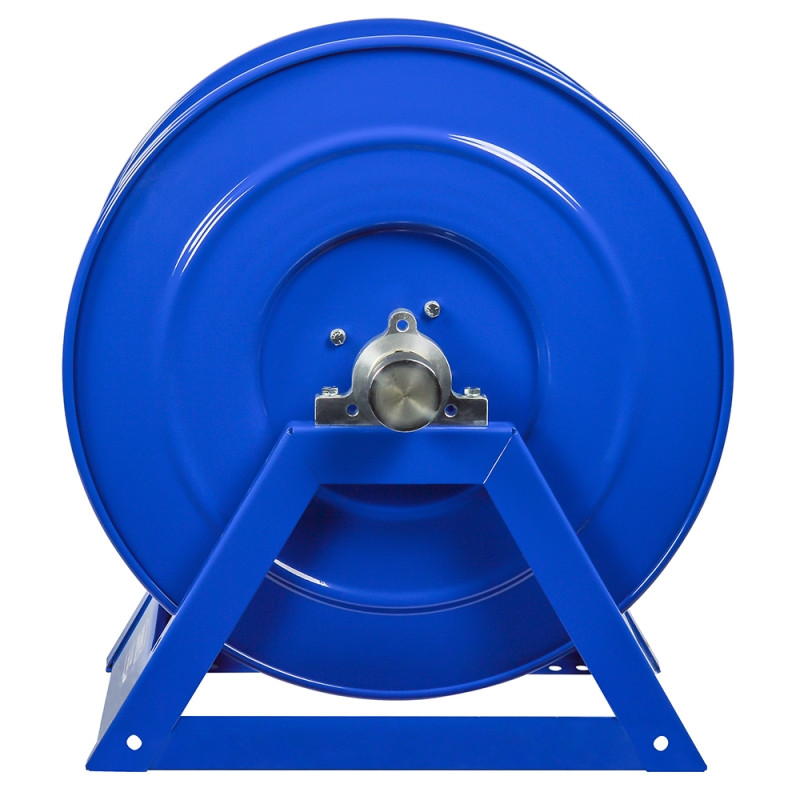

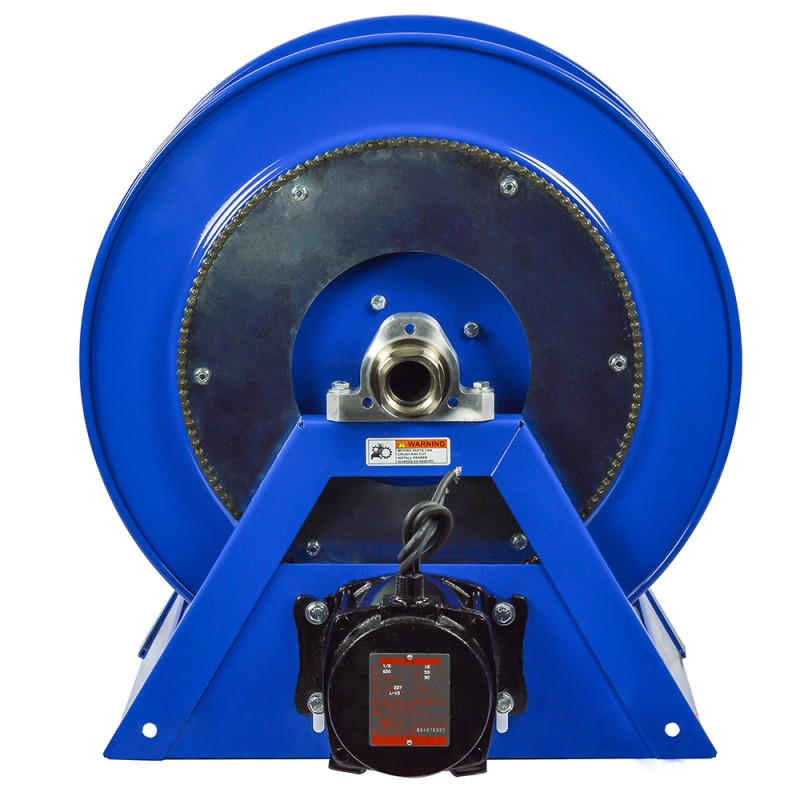

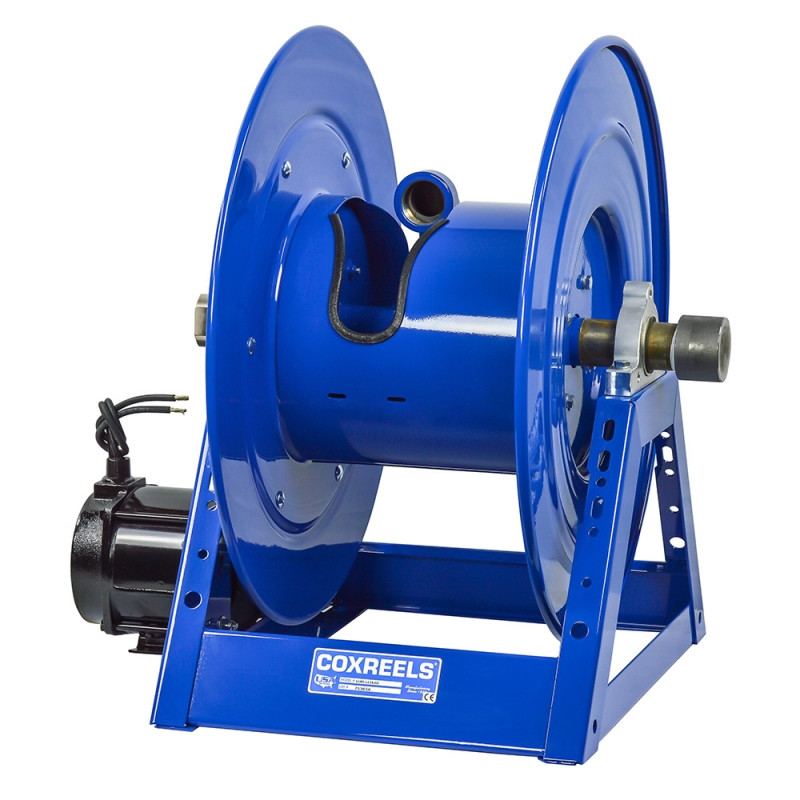

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric 24V DC Motor Rewind Hose Reel | Series: 1185 Series | Model: 1185-1124-EF | Configuration: Less Hose | Motor: 24V DC Electric | Hose I.D.: 1-1/2 in. | Hose O.D.: 2-1/16 in. | Hose Capacity: 50 ft | Maximum Working Pressure: 1,500 PSI | Overall Dimensions: 26-1/8 in. W × 26 in. H × 24 in. L | Base: 17 in. × 22-1/4 in. | Drum Width: 11-1/2 in. | Drum Diameter: 10-1/2 in.
Features:
- 24V DC electric motor provides powered hose rewind.
- Chain-and-sprocket drive efficiently transfers motor power to the reel drum.
- External fluid path utilizes an in-line full-flow NPT swivel.
- Electroless nickel-plated steel swivel is fitted with NITRILE seals.
- Exclusive low-profile outlet riser and open drum slot promote a flat, smooth hose wrap.
- One-piece CNC robotically welded 12-gauge steel A-frame provides structural rigidity.
- Permanently lubricated horizontal surface-mount bearings support smooth reel rotation.
- Rolled edges and ribbed discs improve strength while helping protect the hose.
- Durable CPC powder coat finish helps resist corrosion and wear.
Made in USA:
Applications:
- High-volume fluid delivery systems.
- Bulk liquid transfer.
- Water trucks.
- Construction and mining equipment.
- Farming and agricultural operations.
- Chemical fluid transfer.
- Aviation refueling.
- Fuel truck service.
FAQs:
- Q: Does the Coxreels 1185-1124-EF include hose?
A: No. This reel is supplied less hose. A compatible hose must be purchased separately. - Q: What hose capacity is this reel designed for?
A: The standard capacity is 50 ft of 1-1/2 in. I.D. hose. Coxreels also lists an optional capacity of 75 ft of 1-1/4 in. I.D. hose when used with a reducer. - Q: What powers the rewind mechanism?
A: This model uses a 24V DC electric motor that drives the reel through a chain-and-sprocket system. - Q: What is the maximum working pressure?
A: The reel is rated for a maximum working pressure of 1,500 PSI. - Q: What type of swivel is used?
A: The reel features an electroless nickel-plated steel full-flow swivel with NITRILE seals and 1-1/2 in. FNPT inlet and outlet connections.
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required | INLET SWIVEL & OUTLET RISER | PSI | APRX. LBS. | SIZE INDEX | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||||
|
1185 SERIES - IN-LINE SWIVEL
|
|||||||||||
| 1185-1124 | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-A | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-AB | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-C | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-E | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-EA | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-ED | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-EF | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
