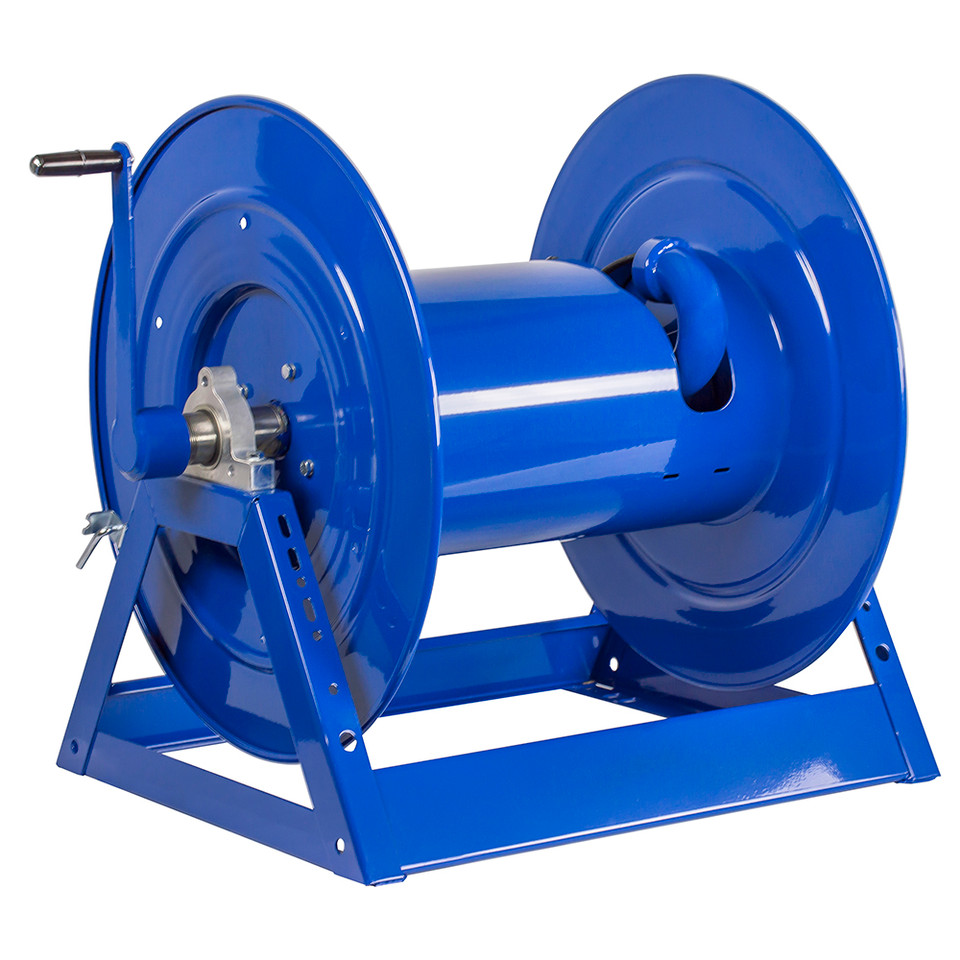

Built for high-volume fluid delivery where large-diameter hose must be stored and deployed manually, the Coxreels 1185-1124 Hand Crank Hose Reel provides capacity for 50 feet of 1 1/2-inch I.D. hose. Its 1,500 PSI maximum working pressure supports compatible medium-pressure transfer systems, while the open drum and low-profile outlet riser guide the hose into a flat wrap that helps reduce kinking and flow restriction.

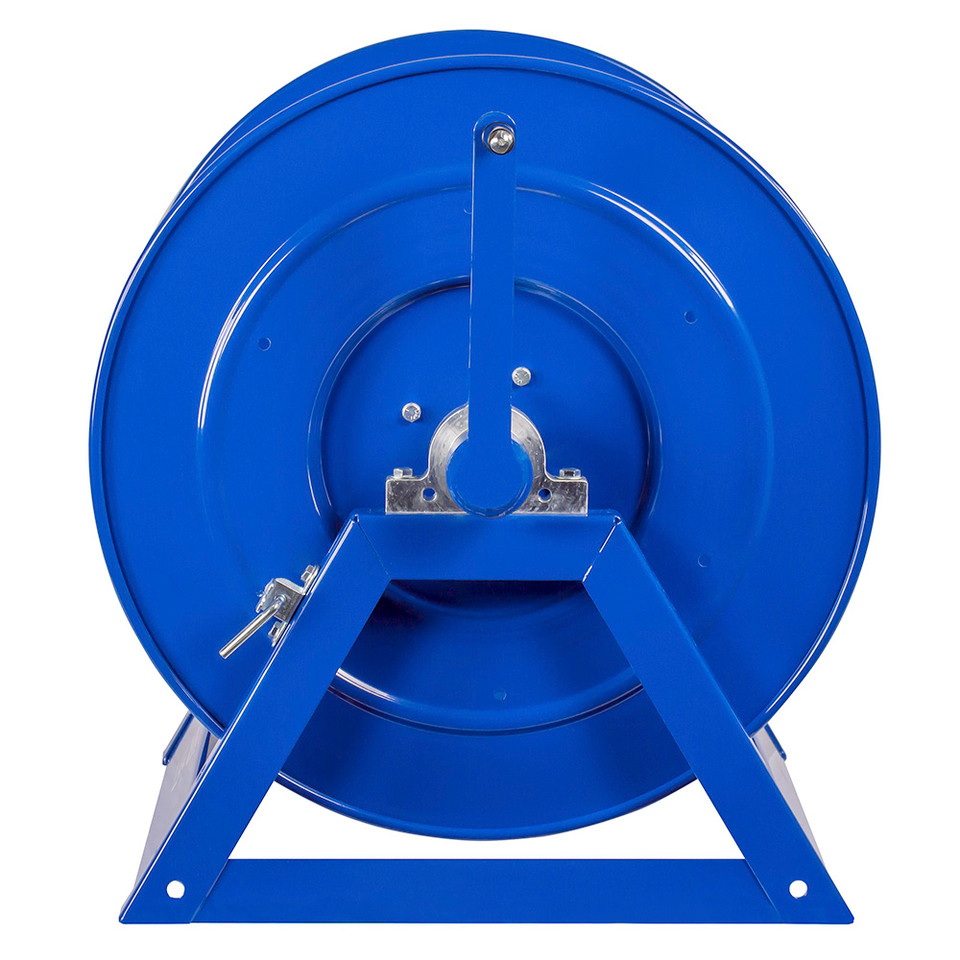

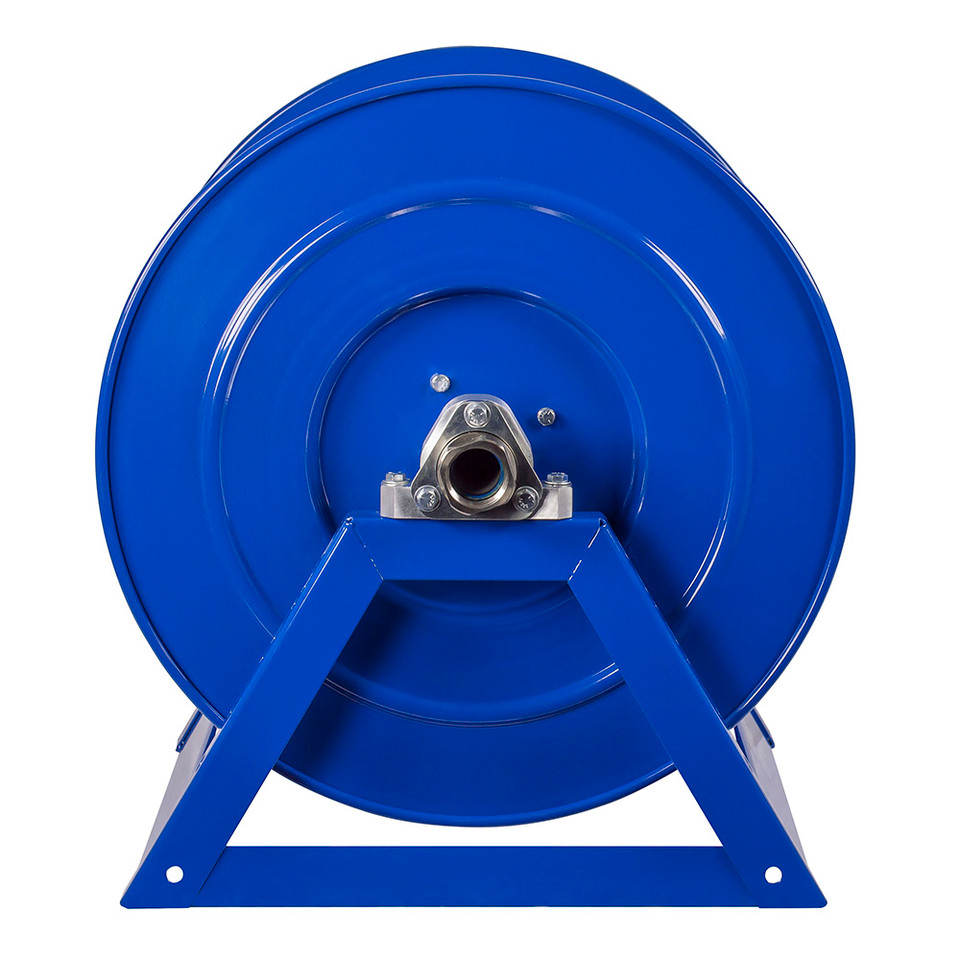

The 1185 Series uses an all-welded steel "A" frame to support the weight of large hose in stationary or mobile installations. A solid steel direct hand crank provides controlled manual retrieval, and the long-handled locking pin secures the drum against rotation during storage or transport. This model is supplied as a bare reel, allowing the buyer to select hose with the pressure rating, construction, and fluid compatibility required for the application.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hand Crank Hose Reel | Series: 1185 Series | Configuration: Less Hose | Hose I.D.: 1 1/2" | Hose O.D.: 2 1/16" | Hose Capacity: 50 ft | Inlet Swivel and Outlet Riser: 1 1/2" Female NPT | Swivel Seal: Nitrile | Max Pressure: 1,500 PSI | Ship Weight: 76 lbs
Features:
- Large-capacity drum accommodates up to 50 feet of 1 1/2-inch I.D. hose for high-volume delivery systems.
- Exclusive low-profile outlet riser and open drum slot promote a flat, smooth hose wrap without sharply crimping the hose.
- Solid steel direct hand crank with a smooth round handle provides controlled manual hose retrieval.
- Long-handled locking pin secures the reel against unwanted rotation during transport or storage.
- One-piece, all-welded 12-gauge steel "A" frame supports the added weight associated with large-diameter hose.
- Rolled disc edges and ribbed drum construction add strength while helping protect the hose during winding.
- Lubricated horizontal surface-mount bearings support smooth drum rotation.
- Chip-resistant, rust-inhibiting CPC powder-coat finish protects the steel structure in shop, plant, and mobile installations.
Made in USA:
Applications:
- Bulk liquid handling systems that require controlled storage of large-diameter hose.
- High-volume water delivery for agricultural, utility, construction, and facility operations.
- Oil and lubrication transfer where the selected hose and reel seal materials are compatible with the fluid.
- Truck, trailer, skid, and service-body installations requiring a manually operated reel with a drum locking mechanism.
- Industrial plants and maintenance facilities managing 1 1/2-inch hose for compatible fluid-transfer processes.
FAQs:
- Q: Does the Coxreels 1185-1124 include hose?
A: No. The 1185-1124 is supplied as a reel only. A compatible 1 1/2-inch I.D. hose must be selected and purchased separately. - Q: How much hose will this reel hold?
A: The drum is rated to hold up to 50 feet of hose measuring 1 1/2 inches inside diameter and 2 1/16 inches outside diameter. Hose with a different outside diameter may change the usable capacity. - Q: Is the reel spring-retractable?
A: No. This model uses a solid steel direct hand crank for manual retrieval. The locking pin holds the drum in position during storage or transport. - Q: Can this reel be used at 1,500 PSI?
A: The reel is rated for a maximum pressure of 1,500 PSI. The installed hose, fittings, and every other component in the system must also be rated for the operating pressure and transferred fluid. - Q: What space is required for installation?
A: The reel measures 25 inches wide, 26 inches high, and 24 inches long. Its mounting pattern is 14.75 by 16 inches, so the mounting surface should provide adequate space and structural support for the reel, hose, and transferred fluid.
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required | INLET SWIVEL & OUTLET RISER | PSI | APRX. LBS. | SIZE INDEX | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||||
|
1185 SERIES - IN-LINE SWIVEL
|
|||||||||||
| 1185-1124 | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-A | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-AB | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-C | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-E | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-EA | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-ED | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-EF | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
