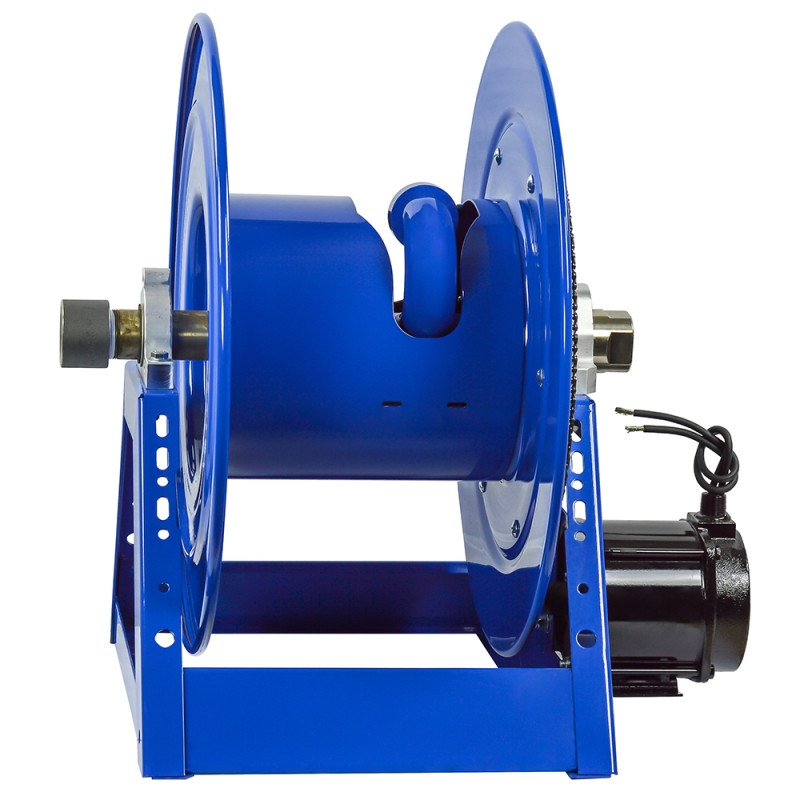

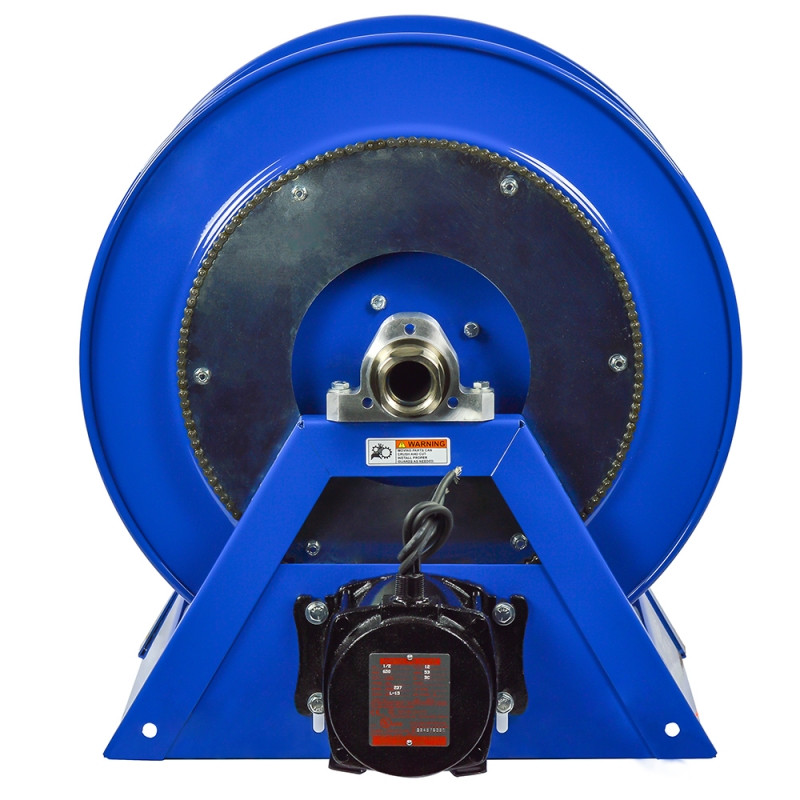

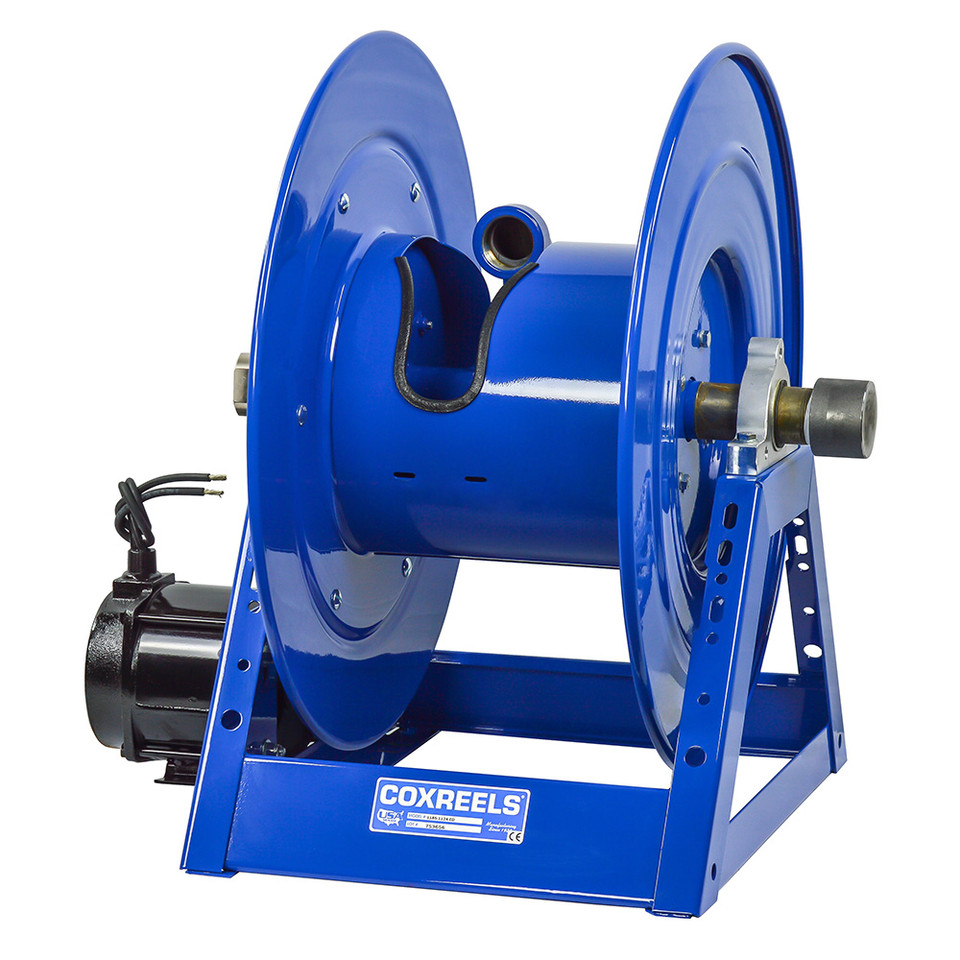

Built for increased-volume delivery systems that require powered hose retrieval, the Coxreels 1185-1124-E Electric DC Motor Rewind Hose Reel stores up to 50 ft of 1-1/2 in. I.D. hose. Its 12V DC, 1/3 HP reversible motor drives the reel through a chain-and-sprocket mechanism, providing powered rewind for installations where retrieving a large-diameter hose manually would be less practical. The welded A-frame construction supports the additional hose weight while maintaining dependable performance in fixed and mobile applications.
The 1185-1124-E is rated for a 1,500 PSI maximum working pressure and uses an external fluid path with an in-line, full-flow NPT swivel inlet and NITRILE swivel seals. Coxreels’ exclusive low-profile outlet riser and open drum slot create a flat, smooth hose wrap that helps prevent crimping during retrieval. An adjustable tension brake helps control free-wheeling during operation, while permanently lubricated horizontal surface-mount bearings promote smooth drum rotation. This model is supplied without hose so the required hose assembly can be selected separately.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric DC Motor Rewind Hose Reel | Series: 1185 Series | Model: 1185-1124-E | Configuration: Less Hose | Motor: 12V DC, 1/3 HP Reversible | Hose I.D.: 1-1/2 in. | Hose O.D.: 2-1/16 in. | Hose Capacity: 50 ft | Maximum Working Pressure: 1,500 PSI | Overall Dimensions: 26.13 in. W x 26 in. H x 24 in. L | Mounting Pattern: 14.75 in. M x 16 in. N | Base Dimensions: 17 in. X x 22.25 in. Y
Features:
- 12V DC, 1/3 HP reversible electric motor provides powered hose rewind.
- Reliable chain-and-sprocket drive transfers motor power to the reel drum.
- External fluid path incorporates an in-line, full-flow NPT swivel inlet.
- NITRILE seals are used in the swivel assembly.
- Exclusive low-profile outlet riser and open drum slot provide a non-crimping, flat, smooth hose wrap.
- One-piece, CNC robotically welded 12-gauge steel A-frame base strengthens the reel structure.
- Permanently lubricated horizontal surface-mount bearings support smooth reel rotation.
- Adjustable tension brake helps prevent free-wheeling during operation.
- CNC-spun ribbed discs with rolled edges provide strength, hose protection, and operator safety.
- Chip-resistant and rust-inhibiting CPC powder coat finish protects the steel reel structure.
Made in USA:
Applications:
- Increased-volume delivery systems using compatible large-diameter hose.
- Mobile applications equipped with a suitable 12V DC electrical supply.
- Fixed installations requiring powered storage and retrieval of 1-1/2 in. hose.
- Systems where the welded A-frame must support the additional weight of a large hose assembly.
- Fluid-delivery equipment operating within the reel’s 1,500 PSI maximum working pressure.
FAQs:
- Q: Does the Coxreels 1185-1124-E include hose?
A: No. Coxreels lists this model without hose. A compatible hose must be selected and installed separately. - Q: What hose capacity does this reel provide?
A: The reel accommodates up to 50 ft of hose measuring 1-1/2 in. I.D. and 2-1/16 in. O.D. - Q: What motor is used on the 1185-1124-E?
A: The E motor option is a reversible 12V DC motor rated at 1/3 HP. - Q: What is the reel’s maximum working pressure?
A: Coxreels rates this exact model for a maximum working pressure of 1,500 PSI. - Q: How does the reel help prevent hose crimping?
A: Its low-profile outlet riser and open drum slot guide the hose into a flat, smooth wrap during powered retrieval.
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required | INLET SWIVEL & OUTLET RISER | PSI | APRX. LBS. | SIZE INDEX | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||||
|
1185 SERIES - IN-LINE SWIVEL
|
|||||||||||
| 1185-1124 | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-A | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-AB | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-C | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-E | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-EA | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-ED | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-EF | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Motor Rewind Hose Reel
- Series
- 1185 Series
- Hose Inside Diameter (in.)
- 1-1/2
- Hose Outside Diameter (in.)
- 2-1/16
- Hose Length (ft.)
- 50
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 1500
- Width (in.)
- 26.13
- Height (in.)
- 26
- Length (in.)
- 24
- Mounting Pattern (in.)
- 14.75M
- Mounting Pattern (in.)
- 16N
- Base (in.)
- 17X
- Base (in.)
- 22.25Y
