For large-diameter hose installations where manual rewind is not preferred, the Coxreels 1185-1124-A Air Motor Rewind Hose Reel provides powered retrieval through the 1185 Series motor-driven configuration. This model accommodates up to 50 ft of 1-1/2 in. I.D. hose, supporting increased-volume delivery while keeping the hose stored on a rigid reel structure. The manufacturer-listed chain-and-sprocket drive transfers power to the drum for controlled mechanical rewind.
The reel is rated for a 1,500 PSI maximum working pressure and uses an external fluid path with an in-line full-flow NPT swivel inlet and NITRILE swivel seals. Coxreels’ low-profile outlet riser and open drum slot create a non-crimping, flat hose wrap, while the welded steel A-frame supports the additional weight associated with large-diameter hose. Permanently lubricated horizontal surface-mount bearings assist reel rotation, and an adjustable tension brake helps prevent free-wheeling during operation.

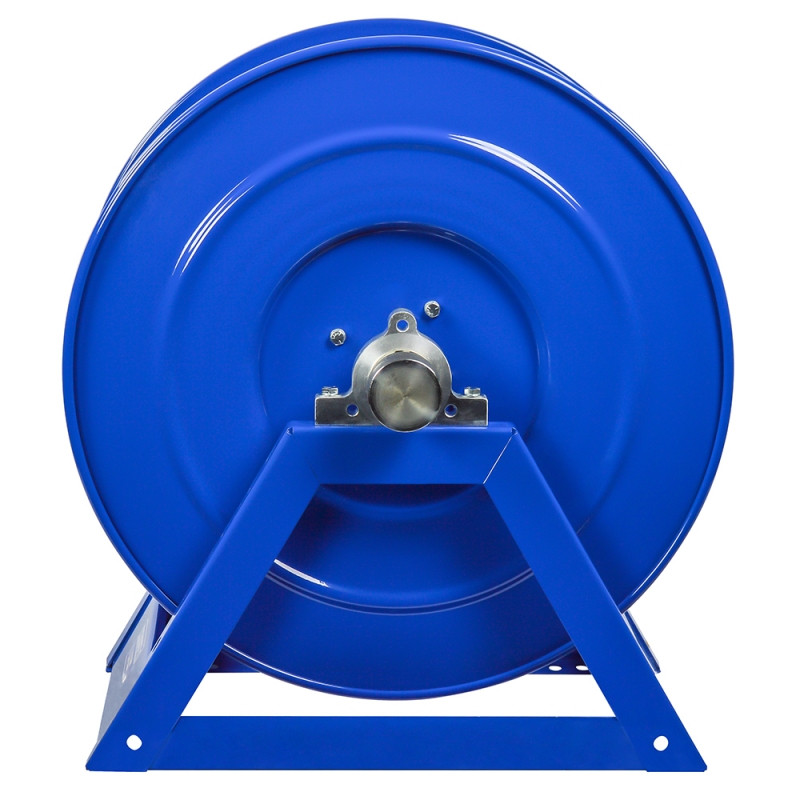

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Air Motor Rewind Hose Reel | Series: 1185 Series | Model: 1185-1124-A | Configuration: Less Hose | Hose I.D.: 1-1/2 in. | Hose O.D.: 2-1/16 in. | Hose Capacity: 50 ft | Maximum Working Pressure: 1,500 PSI | Overall Dimensions: 23.38 in. W x 26 in. H x 24 in. L | Mounting Pattern: 14.75 in. M x 16 in. N | Base Dimensions: 17 in. X x 22.25 in. Y
Features:
- Motor-driven configuration supports powered retrieval of large-diameter hose.
- Reliable chain-and-sprocket drive transfers power to the reel drum.
- External fluid path incorporates an in-line full-flow NPT swivel inlet.
- NITRILE seals are used in the swivel assembly.
- Exclusive low-profile outlet riser and open drum slot provide a non-crimping, flat hose wrap.
- One-piece, all-welded 12-gauge steel A-frame base strengthens the reel structure.
- Permanently lubricated horizontal surface-mount bearings support easy reel rotation.
- Adjustable tension brake helps prevent free-wheeling during operation.
- CNC-spun ribbed discs with rolled edges provide strength, hose protection, and operator safety.
- Chip-resistant and rust-inhibiting CPC powder coat finish protects the steel reel structure.
Made in USA:
Applications:
- Increased-volume delivery systems using compatible large-diameter hose.
- Mobile applications requiring powered storage and retrieval of 1-1/2 in. hose.
- Fixed installations where an all-welded A-frame reel is required to support the weight of a large hose assembly.
- Fluid-delivery systems operating within the reel’s 1,500 PSI maximum working pressure.
FAQs:
- Q: Does the Coxreels 1185-1124-A include hose?
A: No. Coxreels lists the hose field as “No,” so a compatible hose must be purchased and installed separately. - Q: What hose size and length will this reel hold?
A: The manufacturer lists a capacity of 50 ft for hose measuring 1-1/2 in. I.D. and 2-1/16 in. O.D. - Q: What is the maximum working pressure?
A: Coxreels rates the 1185-1124-A for a maximum working pressure of 1,500 PSI. - Q: How does the reel help prevent hose crimping?
A: The low-profile outlet riser and open drum slot guide the hose into a flat, smooth wrap during retrieval. - Q: How is unwanted reel movement controlled?
A: An adjustable tension brake helps prevent free-wheeling while the reel is operating.
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required | INLET SWIVEL & OUTLET RISER | PSI | APRX. LBS. | SIZE INDEX | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||||
|
1185 SERIES - IN-LINE SWIVEL
|
|||||||||||
| 1185-1124 | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-A | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-AB | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-C | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-E | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-EA | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-ED | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-EF | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
