Built for large-diameter hose handling in high-volume delivery applications, the Coxreels 1185-1124-AB #6 Gast air motor rewind hose reel provides 1-1/2" I.D. x 50 ft hose capacity with a 1500 PSI maximum pressure rating. The 1185 Series is made for longer and heavier hose runs than compact shop reels, using an all-welded steel 'A' frame base to support the added hose weight in industrial, fleet, plant maintenance, and mobile service environments.
This model is supplied less hose, allowing the buyer to install a compatible 1-1/2" hose matched to the fluid, pressure, temperature, and fitting requirements of the application. The #6 Gast air motor rewind provides powered hose retrieval using compressed air, reducing manual winding effort on the large hose. Coxreels' low-profile outlet riser and open drum slot help guide hose into a flatter wrap, while the adjustable tension brake helps prevent free-wheeling during operation.

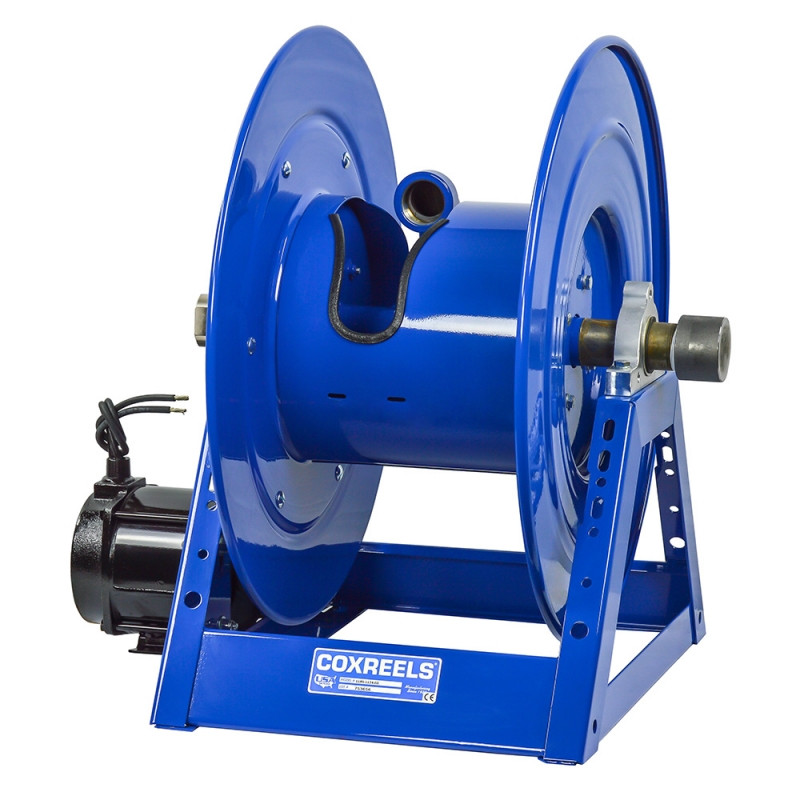

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Air Motor Rewind Hose Reel | Series: 1185 Series | Model: 1185-1124-AB | Motor: #6 Gast Air Motor | Configuration: Less Hose | Hose I.D.: 1-1/2" | Hose O.D.: 2-1/16" | Hose Capacity: 50 ft | Hose Included: No | Max Pressure: 1500 PSI | Ship Weight: 84 lbs | Overall Dimensions: 23.38" W x 26" H x 24" L | Mounting Pattern: 14.75" M x 16" N | Base: 17" X x 22.25" Y
Features:
- #6 Gast air motor rewind provides powered hose retrieval using compressed air, reducing manual winding effort on large-diameter hose.
- 1185 Series design handles long lengths of large diameter hose for increased volume delivery applications.
- 1-1/2" x 50 ft hose capacity supports large hose installations where smaller reels do not provide enough diameter or flow capacity.
- All welded steel 'A' frame construction strengthens the reel structure for heavy hose loads and mobile applications.
- Exclusive low profile outlet riser and open drum slot design provide a non-crimping, flat, smooth hose wrap.
- External fluid path with full-flow NPT swivel inlet supports efficient flow through the reel and simplifies seal access.
- Lubricated horizontal surface mount bearings support smooth drum rotation during payout and rewind.
- Adjustable tension brake helps prevent free-wheeling during operation.
- Reliable chain and sprocket drive supports motor-driven rewind operation.
- Rolled edges and ribbed discs provide strength, hose protection, and safer handling around the reel drum.
- CPC powder coat finish helps resist chips and rust in industrial, fleet, and service environments.
Made in USA:
Applications:
- Industrial fluid transfer stations that require a large 1-1/2" hose path and powered rewind for hose retrieval.
- Fleet and heavy equipment service areas where large-diameter hoses need to be stored neatly after maintenance or utility work.
- Mobile service trucks and trailers where an air motor rewind reel helps manage heavy hose without hand cranking.
- Plant maintenance and MRO departments handling high-volume air, water, oil, or compatible fluid transfer through customer-supplied hose.
- Construction, utility, and field service operations that need a rugged 'A' frame reel platform for 50 ft hose capacity.
FAQs:
- Q: Does the Coxreels 1185-1124-AB include hose?
A: No. This model is supplied less hose. The buyer must install a compatible 1-1/2" I.D. hose that matches the application's pressure, temperature, fluid, and fitting requirements. - Q: What does #6 Gast air motor rewind' mean?
A: It means the reel uses a Gast compressed-air motor for powered rewind instead of hand crank or electric rewind. This is useful when retracting large-diameter hose that would be difficult or time-consuming to wind manually. - Q: What hose size will this reel hold?
A: This model is listed for 1-1/2" I.D. hose with a 2-1/16" O.D. and 50 ft capacity. Hose outside diameter matters because larger O.D. hose can reduce the amount of hose the reel can safely hold. - Q: Can this reel be used at 1500 PSI?
A: The reel is rated to 1500 PSI, but the final working pressure must not exceed the rating of the installed hose, fittings, and system components. For a less-hose reel, confirm the hose rating before pressurizing the system. - Q: Why choose the 1185 Series instead of a smaller hose reel?
A: The 1185 Series is built for large-diameter hose and increased volume delivery. Its all-welded 'A' frame construction, low profile outlet riser, open drum slot, and motorized rewind are better suited to heavy hose handling than compact spring rewind reels.
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required | INLET SWIVEL & OUTLET RISER | PSI | APRX. LBS. | SIZE INDEX | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||||
|
1185 SERIES - IN-LINE SWIVEL
|
|||||||||||
| 1185-1124 | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-A | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-AB | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-C | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-E | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-EA | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-ED | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
| 1185-1124-EF | 1-1/2" | 2-1/16" | 50 | 1-1/4" | 1-13/16" | 75 | 1-1/2" F NPT | 1,500 | 76 | 1 | |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
