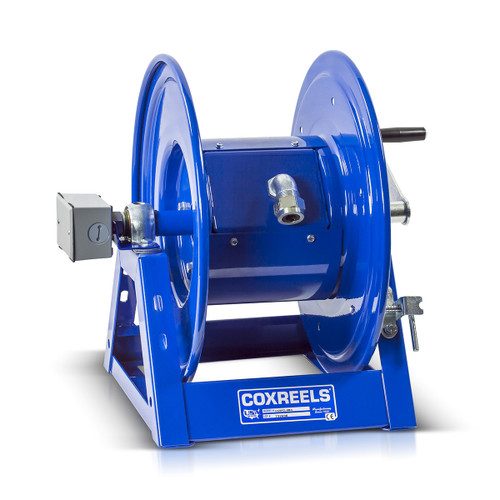

Coxreels 1125PCL-8-ED Electric 12V DC Explosion Proof 1/2HP Motor Rewind Cord Reel | 1125PCL Series | 200' (10/3) / 175' (8/3) Capacity | 30 Amps | 600 Volts | Less Cord

When long power-cord runs need controlled payout and powered retrieval, the Coxreels 1125PCL-8-ED provides a motor rewind cord reel platform for service vehicles, maintenance areas, and facility power-management setups. This 1125PCL Series reel is configured for up to 200 ft of 10/3 cord or 175 ft of 8/3 cord, giving buyers room to match cord gauge and length to the electrical load, voltage, and jobsite reach requirements. Its 30 Amp, 600 Volt, 3-pole slip ring assembly transfers power through the rotating drum while allowing the cord to wind and unwind without twisting the connection.

The 1125PCL-8-ED uses an ED motor option: a 12V DC, 1/2 HP, explosion proof, reversible electric motor rewind package. Powered rewind reduces manual effort when handling long, heavy cord lengths, while the direct gear drive on motor-driven models eliminates chain-drive components. The reel also includes Coxreels all-welded steel 'A' frame, drum-located slip ring assembly, adjustable tension brake, long-handled locking pin, and Cable Keeper to support safer cord handling during storage, transport, and daily use.

*Note: This product is supplied less cord. Cord must be selected and installed separately according to the reel capacity, cord gauge, insulation rating, voltage, amperage, and applicable electrical codes.

Type: Motorized Power Cord Reel | Series: 1125PCL Series | Model: 1125PCL-8-ED | Configuration: Less Cord | Motor Option: ED, 12V DC, 1/2 HP, Explosion Proof, Reversible | Retract Method: Electric Motor Rewind | Cord Capacity: 200 ft of 10/3 or 175 ft of 8/3 | Cord Grip Range: .63"-.75" | Slip Ring Rating: 30 Amps | Voltage Rating: 600 Volts | Slip Ring Poles: 3 | Ship Weight: 61 lbs | Overall Dimensions: 21.63" W x 19.13" H x 17.5" L | Mounting Pattern: 11.44" M x 10" N | Base: 13.38" X x 16" Y

Features:

• 12V DC, 1/2 HP explosion proof, reversible ED motor option provides powered rewind for retrieving long cord runs.
• Drum-located slip ring assembly with an easy-access cover supports routine maintenance without removing the reel from its mount.
• 30 Amp, 600 Volt, 3-pole slip ring configuration supports 3-conductor power cord applications within the reel's stated rating.
• Reliable direct gear drive on motor-driven models delivers smooth rewind operation with no chain drive components.
• All-welded steel 'A' frame construction strengthens the reel structure for vehicle-mounted, shop, and field use.
• Permanently lubricated, self-aligning pillow block bearings promote smooth drum rotation.
• Integrated Cable Keeper helps prevent the lead cable from whipping or twisting during reel operation.
• Adjustable tension brake helps prevent free-wheeling, while the long-handled locking pin secures the reel during storage or transport.

Made in USA:

2 Year Warranty

Applications:

• Service trucks and utility vehicles needing powered cord retrieval after field repair, maintenance, or mobile equipment work.
• Industrial maintenance areas where long cord lengths must be stored off the floor between jobs.
• Manufacturing and facility power-management setups using 600V-rated 3-conductor cord within the reel's amperage and capacity limits.
• Construction, mining, and railroad support operations where controlled cord payout helps reduce loose-cable clutter around equipment.
• Fleet shops and mechanic bays that need organized cord storage for portable tools, lighting, or temporary electrical connections after installation is verified by a qualified electrical professional.

FAQs:

• Q: Does the Coxreels 1125PCL-8-ED include cord?
  A: No. This model is supplied less cord. The buyer must provide compatible cord separately and verify the selected gauge, length, voltage rating, amperage rating, insulation type, and code requirements before installation.
• Q: What does the ED motor option mean?
  A: The ED suffix identifies a 12V DC, 1/2 HP, explosion proof, reversible electric motor option for powered rewind. It is different from the EB option, which uses a 24V DC explosion proof motor.
• Q: What cord sizes can be used with this reel?
  A: This listing identifies capacity for 200 ft of 10/3 cord or 175 ft of 8/3 cord, with a .63"-.75" cord grip range. Cord outside those dimensions or ratings should not be assumed compatible without confirmation.
• Q: Why is a slip ring used on a power cord reel?
  A: A slip ring is the rotating electrical connection that allows power transfer through the drum while the reel winds and unwinds. Coxreels places the slip ring assembly at the drum with an accessible cover for routine maintenance.
• Q: Can the cord remain energized while wound on the reel?
  A: Coxreels cautions that cord should be completely unspooled when energized unless proper NEC ampacity derating factors are applied. The final electrical installation should be reviewed for national and local code compliance.
