Coxreels 1125PCL-8-A Air Motor Rewind Cord Reel | 1125PC Series | 200' (10/3) / 175' (8/3) Capacity | 30 Amps | 600 Volts | Less Cord

When a long power cord needs powered rewind without an electric rewind motor, the Coxreels 1125PCL-8-A air motor rewind cord reel provides controlled cord storage for industrial work areas, service vehicles, and maintenance installations. This 1125PC Series reel stores up to 200 ft of 10/3 cord or 175 ft of 8/3 cord, giving buyers capacity for long 3-conductor cord runs while keeping the cord organized between uses. A 30 Amp, 600 Volt, 3-pole slip ring assembly transfers power through the rotating drum, while the air motor rewind option uses a 4-vane aluminum body air motor to rewind the reel using compressed air instead of manual cranking or an electric motor.

The 1125PCL-8-A is supplied less cord, so the installer can select compatible cord based on gauge, conductor count, insulation type, electrical load, and applicable code requirements. Its all-welded steel 'A' frame, drum-located slip ring assembly, permanently lubricated self-aligning pillow block bearings, adjustable tension brake, and locking pin make it a practical cord management choice for plants, mobile service units, utilities, and shops already equipped with compressed air.

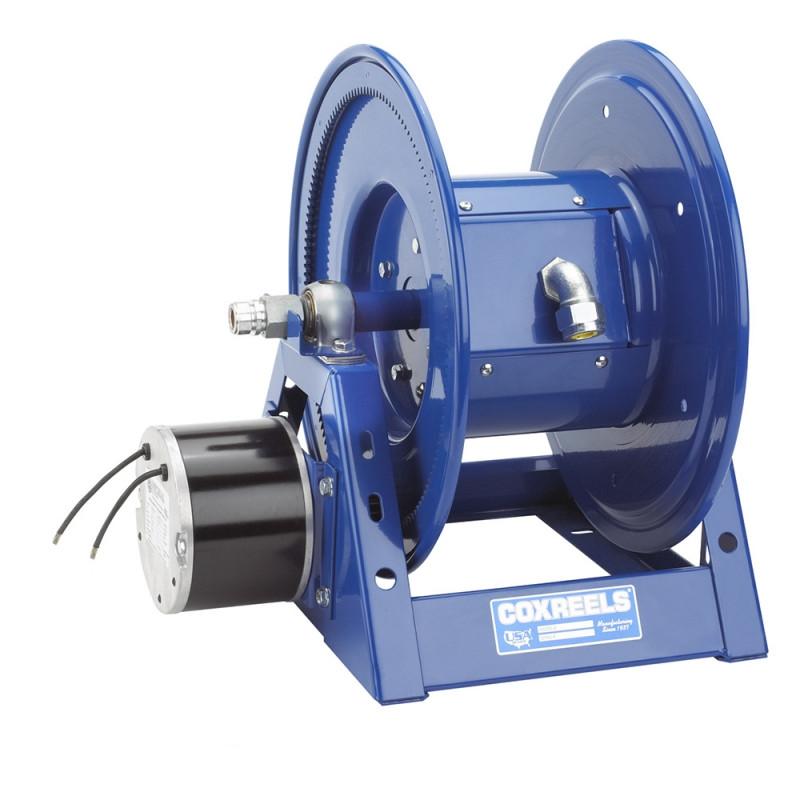

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any cord. Please note this before ordering.

Type: Air Motor Rewind Cord Reel | Series: 1125PC Series | Model: 1125PCL-8-A | Configuration: Less Cord | Motor Option: Air - 4 Vane Aluminum Body Air Motor | Cord Capacity: 200 ft of 10/3 or 175 ft of 8/3 | Cord Grip Range: .63"-.75" | Voltage Rating: 600 Volts | Slip Ring Amps: 30 Amps | Slip Ring Poles: 3 | Approx. Weight: 43 lbs

Features:

• Air motor rewind configuration uses a 4-vane aluminum body air motor, making it useful where compressed air is preferred for reel rewind.
• Drum-located slip ring assembly with an easy-access cover supports routine maintenance without removing the reel from its installed position.
• 30 Amp, 600 Volt, 3-pole slip ring configuration supports compatible 3-conductor cord installations.
• All-welded steel 'A' frame construction strengthens the reel structure for stationary, mobile, and work-truck mounting.
• Narrow-width reel design helps fit the unit into restricted mounting spaces where a wider reel may interfere with surrounding equipment.
• Permanently lubricated self-aligning pillow block bearings help the drum rotate smoothly during pay-out and powered rewind.
• 3/4" trade size single gang outlet box provides external access to user lead connections.
• Cable Keeper helps prevent the lead cable from whipping or twisting during reel operation.
• Adjustable tension brake helps prevent free-wheeling, while the long-handled locking pin secures the reel from rotation during transport or storage.
• Reliable direct gear drive on motor driven models eliminates the need for a chain drive.

Made in USA:

2 Year Warranty

Applications:

• Manufacturing plants and facilities using long power cord runs for portable tools, lighting, and maintenance stations.
• Service, mechanic, and utility vehicles where compressed air is available and powered cord rewind reduces manual winding effort.
• Industrial MRO departments managing temporary electrical service around machinery, work cells, and repair areas.
• Mining, construction, and railroad operations that need cord storage for field equipment while keeping cord off walkways and work surfaces.
• Fleet shops and garages that prefer an air motor rewind reel and want to install cord matched to their electrical service requirements.

FAQs:

• Q: What does 'less cord' mean on the Coxreels 1125PCL-8-A?
  A: It means the reel is supplied without cord installed. The buyer or installer must provide compatible cord separately based on gauge, conductor count, insulation rating, application, and electrical code requirements.
• Q: How is the 1125PCL-8-A different from the 1125PCL-8?
  A: The 1125PCL-8 is the hand crank version, while the 1125PCL-8-A adds an air motor rewind option. Both share the same 30 Amp, 600 Volt, 3-pole slip ring rating and the same listed 10/3 and 8/3 cord capacities.
• Q: What cord sizes can this reel hold?
  A: The reel holds up to 200 ft of 10/3 cord or 175 ft of 8/3 cord. The numbers identify conductor gauge and conductor count, so the correct cord should be chosen based on load, voltage, distance, and code requirements.
• Q: Can the cord be energized while wound on the reel?
  A: Coxreels advises that cord should be completely unspooled from the reel when energized unless NEC ampacity derating factors are followed. This helps reduce heat buildup and keeps the installation within the rating of the reel, cord, and connected equipment.
• Q: Is this reel suitable for locations where electric rewind is not preferred?
  A: Yes, the air motor rewind configuration is useful where compressed air is available and an air-powered rewind system is preferred over a manual crank or electric rewind motor. The application still needs to be reviewed for electrical rating, mounting, cord compatibility, and site safety requirements.
