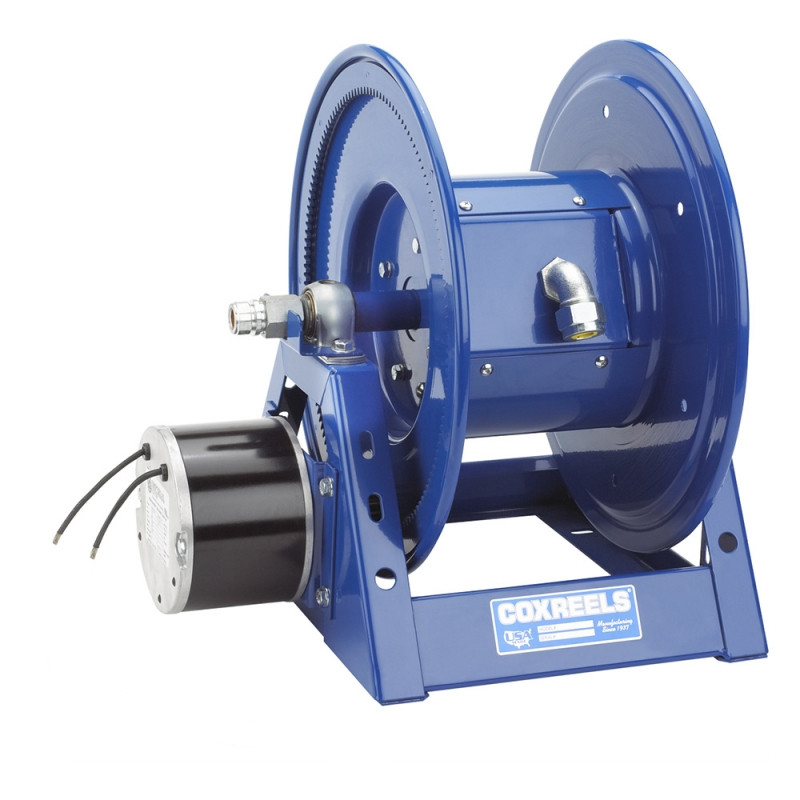

Coxreels 1125PCL-8-EB Electric 24V DC 1/2HP Motor Rewind Cord Reel | 1125PCL Series | 200' (10/3) / 175' (8/3) Capacity | 30 Amps | 600 Volts | Less Cord

When long power-cord runs need to stay organized on service vehicles, plant floors, or mobile equipment, the Coxreels 1125PCL-8-EB provides a motorized reel platform for managing up to 200 ft of 10/3 cord or 175 ft of 8/3 cord. The 1125PCL Series uses a drum-located slip ring assembly, which transfers electrical power through the rotating drum while keeping the connection accessible for routine service. With a 30 Amp, 600 Volt, 3-pole slip ring configuration, this reel is built for 3-conductor power cord applications where controlled storage, cable protection, and convenient deployment matter.

The 1125PCL-8-EB adds an EB motor option: a 24V DC, 1/2 HP, explosion proof, reversible motor rewind package. Motor rewind reduces manual effort when retrieving long, heavy cord lengths, while the direct gear drive on motor-driven models eliminates chain drive maintenance. The all-welded steel 'A' frame, adjustable tension brake, long-handled locking pin, and Cable Keeper support safer cord handling during storage, transport, and jobsite use.

*Note: This product is supplied less cord. Cord must be selected and installed separately according to the reel capacity, cord gauge, insulation rating, voltage, amperage, and applicable electrical codes.

Type: Motorized Power Cord Reel | Series: 1125PCL Series | Model: 1125PCL-8-EB | Configuration: Less Cord | Motor Option: EB, 24V DC, 1/2 HP, Explosion Proof, Reversible | Retract Method: Electric Motor Rewind | Cord Capacity: 200 ft of 10/3 or 175 ft of 8/3 | Cord Grip Range: .63"-.75" | Slip Ring Rating: 30 Amps | Voltage Rating: 600 Volts | Slip Ring Poles: 3 | Base Reel Weight: 35 lbs | EB Motor Add-On Weight: 26 lbs

Features:

• Drum-located slip ring assembly with easy-access cover supports routine maintenance without unnecessary disassembly.
• 30 Amp, 600 Volt, 3-pole slip ring configuration matches 3-conductor power cord applications within the reel's stated capacity.
• 24V DC, 1/2 HP explosion proof, reversible EB motor option provides powered rewind for retrieving long cord runs.
• Reliable direct gear drive on motor-driven models eliminates chain drive components.
• All-welded steel 'A' frame construction strengthens the reel structure for demanding shop, field, and vehicle-mounted use.
• Permanently lubricated, self-aligning pillow block bearings promote smooth drum rotation.
• Cable Keeper helps prevent the lead cable from whipping or twisting during reel operation.
• Adjustable tension brake helps prevent free-wheeling, while the long-handled locking pin secures the reel during transport or storage.

Made in USA:

2 Year Warranty

Applications:

• Power tool cord management in shops, maintenance bays, and industrial work areas where long cord runs need organized storage.
• Manufacturing plants and facilities using 600V-rated 3-conductor cord within the reel's amperage and capacity limits.
• Service, mechanic, and utility vehicles requiring controlled cord payout and motorized rewind after field work.
• Construction, railroad, and mining support operations where cord storage helps reduce loose-cable clutter around equipment.
• Temporary light-source power management when cord gauge, length, amperage, and local electrical-code requirements are verified by the end user.

FAQs:

• Q: Does the Coxreels 1125PCL-8-EB include cord?
  A: No. This reel is supplied less cord. The buyer must provide compatible cord separately and verify the selected cord gauge, length, insulation rating, voltage, amperage, and electrical-code requirements before use.
• Q: What does the EB motor option mean?
  A: The EB suffix identifies a 24V DC, 1/2 HP, explosion proof, reversible motor option for powered rewind. It is used on motorized models to retrieve the cord without hand cranking.
• Q: What cord sizes fit this model?
  A: The 1125PCL-8 base model is listed for up to 200 ft of 10/3 cord or 175 ft of 8/3 cord, with a .63"-.75" cord grip range. Cord outside those dimensions or ratings should not be assumed compatible without review.
• Q: Why does the reel use a slip ring assembly?
  A: A slip ring assembly transfers electrical power through the rotating drum while allowing the cord reel to wind and unwind. Coxreels places the slip ring assembly at the drum with an accessible cover to simplify routine service.
• Q: Can the cord stay energized while wound on the reel?
  A: Coxreels cautions that cord should be completely unspooled from the reel when energized unless proper NEC ampacity derating factors are applied. The end user is responsible for confirming the complete electrical installation meets national and local code requirements.
