Coxreels 1125-6-50-H Hydraulic Rewind Hose Reel | 1125 Series | 1" Hose Diameter | 50' Hose Length | 3000 Max PSI | Less Hose

Built for powered hose retrieval on service trucks, mobile maintenance skids, utility equipment, and industrial MRO stations where hydraulic power is available, the Coxreels 1125-6-50-H is a 1125 Series hydraulic rewind hose reel configured for 50 ft of 1" I.D. hose. The hydraulic motor rewind helps retract larger hose assemblies without hand cranking, making this model useful for vehicle-mounted and equipment-mounted systems where hydraulic drive is preferred over electric or air motor rewind.

Rated for 3000 PSI, the 1125-6-50-H supports medium-pressure service when the installed hose, fittings, swivel, and connected components are rated for the same working pressure and media. Coxreels 1125 Series design uses a one-piece all-welded steel "A" frame, low-profile outlet riser, and open drum slot to help guide hose into a flat, smooth wrap during rewind. The less hose configuration gives buyers flexibility to install the hose material, pressure rating, fitting style, and media compatibility required for air, water, oil, grease, lubrication, washdown, spraying, pressure washing, or fluid-transfer service.

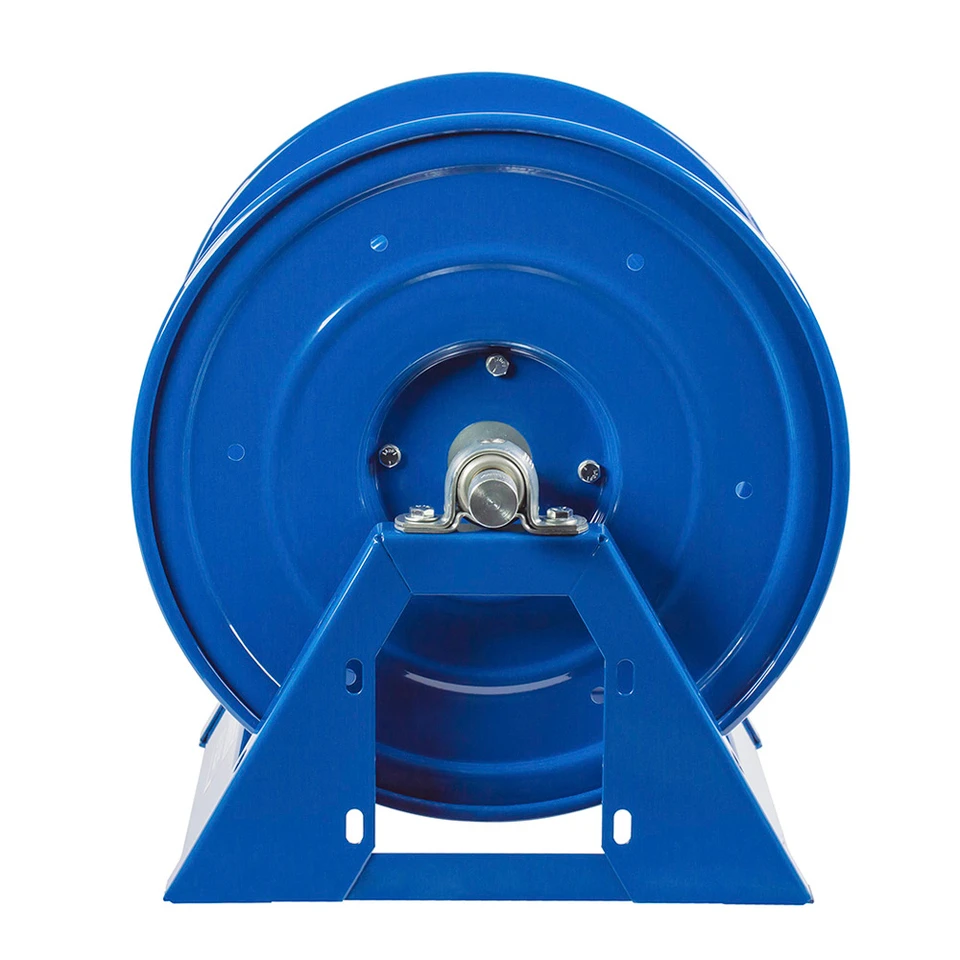

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Hydraulic Rewind Hose Reel | Series: 1125 Series | Model: 1125-6-50-H | Configuration: Less Hose | Rewind: Hydraulic Motor Rewind | Hose I.D.: 1" | Hose O.D.: 1-7/16" | Hose Capacity: 50 ft | Hose Included: No | Max Pressure: 3000 PSI | Overall Dimensions: 28.25" W x 19.13" H x 17.63" L | Mounting Pattern: 25.94" M x 10" N | Base: 20.38" X x 16" Y | Ship Weight: 61 lb

Features:

• Hydraulic motor rewind helps retrieve 1" hose assemblies without manual cranking when a compatible hydraulic power source is available.
• Direct gear drive on motor driven models provides quiet, smooth retraction with no chain drive.
• One-piece all welded steel "A" frame construction provides a rigid mounting base for truck, trailer, skid, floor, bench, or equipment-mounted installations.
• Low-profile outlet riser and open drum slot help guide hose into a flat wrap while reducing sharp bends at the outlet path.
• Nickel plated steel 90° full-flow NPT swivel on 1" models supports efficient flow through the reel's fluid path.
• AFLAS swivel seals are used on 1" models for the reel's medium-pressure service configuration.
• Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation during payout and rewind.
• Rolled edges, ribbed discs, CPC powder coat finish, adjustable tension brake, and long-handled locking pin support hose protection, corrosion resistance, controlled operation, and transport security.

Made in USA:

2 Year Warranty

Applications:

• Fleet and utility service trucks using hydraulic power to manage 1" hose assemblies.
• Industrial MRO departments storing medium-pressure hose for air, water, oil, grease, lubrication, washdown, or pressure service.
• Mobile maintenance skids, trailers, and equipment packages where hydraulic rewind reduces manual hose handling.
• Pressure washing, spraying, and water service setups when the selected hose and fittings match the reel’s 3000 PSI rating.
• Agricultural, grounds maintenance, and field service operations requiring a compact less-hose reel for application-specific hose selection.

FAQs:

• Q: What does "less hose" mean on the Coxreels 1125-6-50-H?
  A: It means this reel is supplied without hose installed. The buyer must provide compatible hose separately and confirm hose I.D., hose O.D., pressure rating, fitting style, and media compatibility before installation.
• Q: What does the H suffix mean?
  A: The H suffix identifies the hydraulic motor rewind version of this 1125 Series reel. This configuration is selected when hydraulic power is available on the vehicle, skid, or equipment where the reel will be mounted.
• Q: How is this different from an electric motor rewind version?
  A: This model uses hydraulic power for rewind instead of an electric motor. It is commonly selected for mobile equipment or service vehicles that already have a hydraulic power source available.
• Q: Can this reel be used at the full 3000 PSI rating?
  A: Yes, only when the installed hose, fittings, swivel, and connected system components are also rated for the same working pressure and media. The completed hose assembly should always be operated within the limit of the lowest-rated component.
• Q: What should be checked before mounting this hydraulic rewind reel?
  A: Confirm available mounting space, hose pull direction, hydraulic power source, hydraulic control layout, motor clearance, hose bend radius, and access for installation or service. This model lists overall dimensions of 28.25" W x 19.13" H x 17.63" L.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
