Coxreels 1125-6-50-E Electric 12V DC 1/3 HP Motor Rewind Hose Reel | 1125 Series | 1" Hose Diameter | 50' Hose Length | 3000 Max PSI | Less Hose

Built for powered hose retrieval on service trucks, fleet maintenance units, mobile washdown skids, and industrial MRO stations where 12V DC power is available, the Coxreels 1125-6-50-E is a 1125 Series electric motor rewind hose reel configured for 50 ft of 1" I.D. hose. The 12V DC, 1/3 HP motor helps retract larger hose assemblies without hand cranking, making this reel useful for vehicle-mounted and equipment-mounted systems where manual rewind is not preferred.

Rated for 3000 PSI, the 1125-6-50-E supports medium-pressure service when the installed hose, fittings, swivel, and connected components are all rated for the same working pressure and media. Coxreels 1125 Series construction uses a one-piece all-welded steel "A" frame, low-profile outlet riser, and open drum slot to help guide hose into a flat, smooth wrap during rewind. The less hose configuration gives buyers flexibility to install the hose material, pressure rating, fitting style, and media compatibility required for air, water, oil, grease, lubrication, spraying, washdown, pressure washing, or fluid-transfer service.

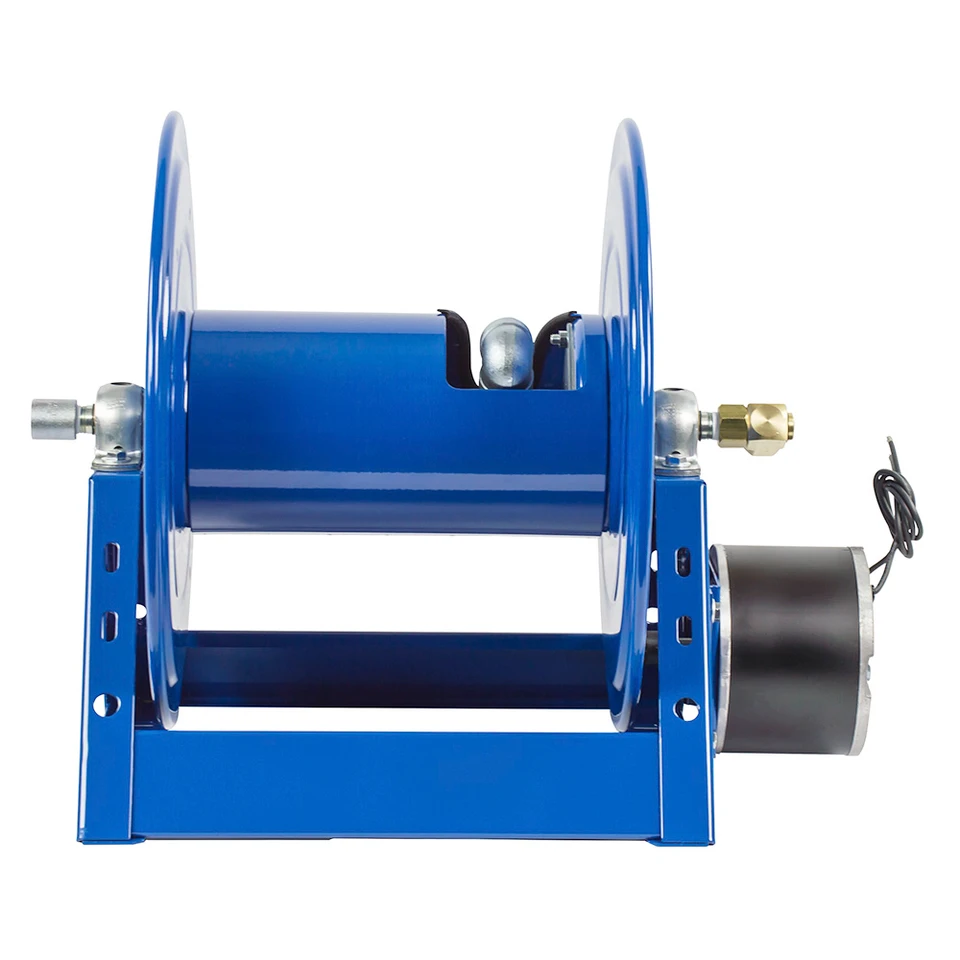

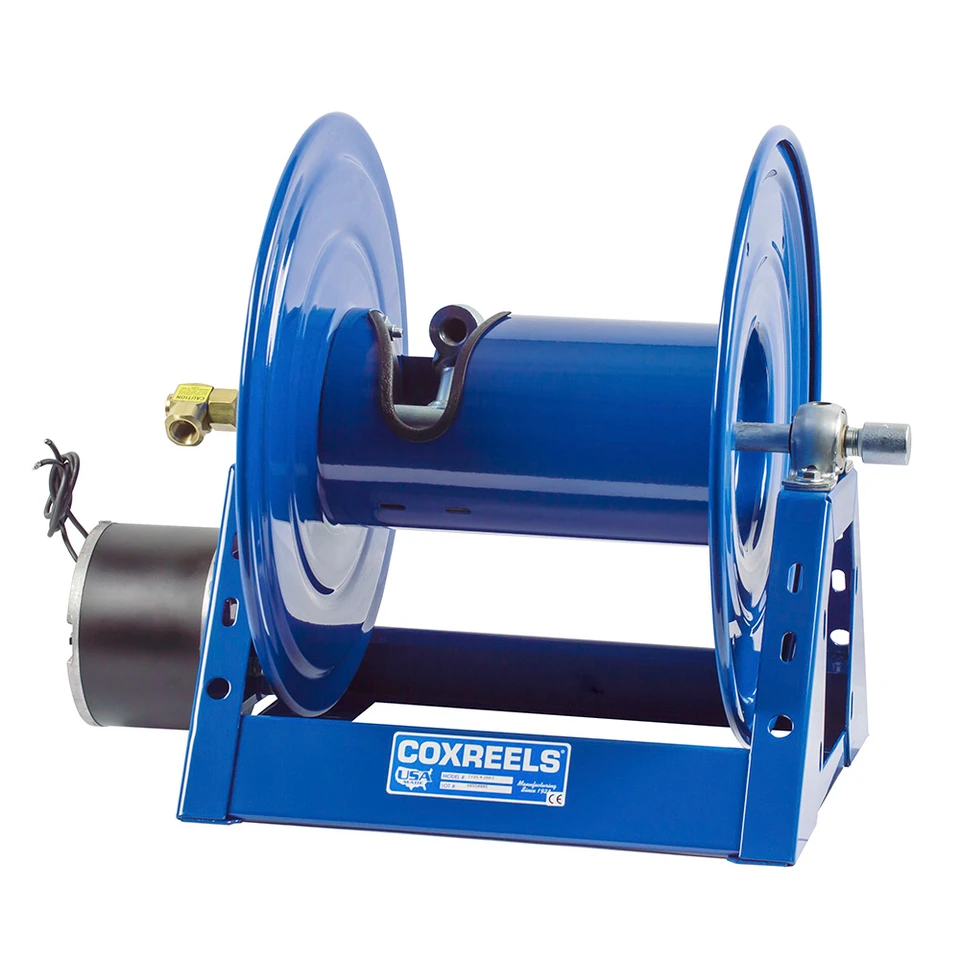

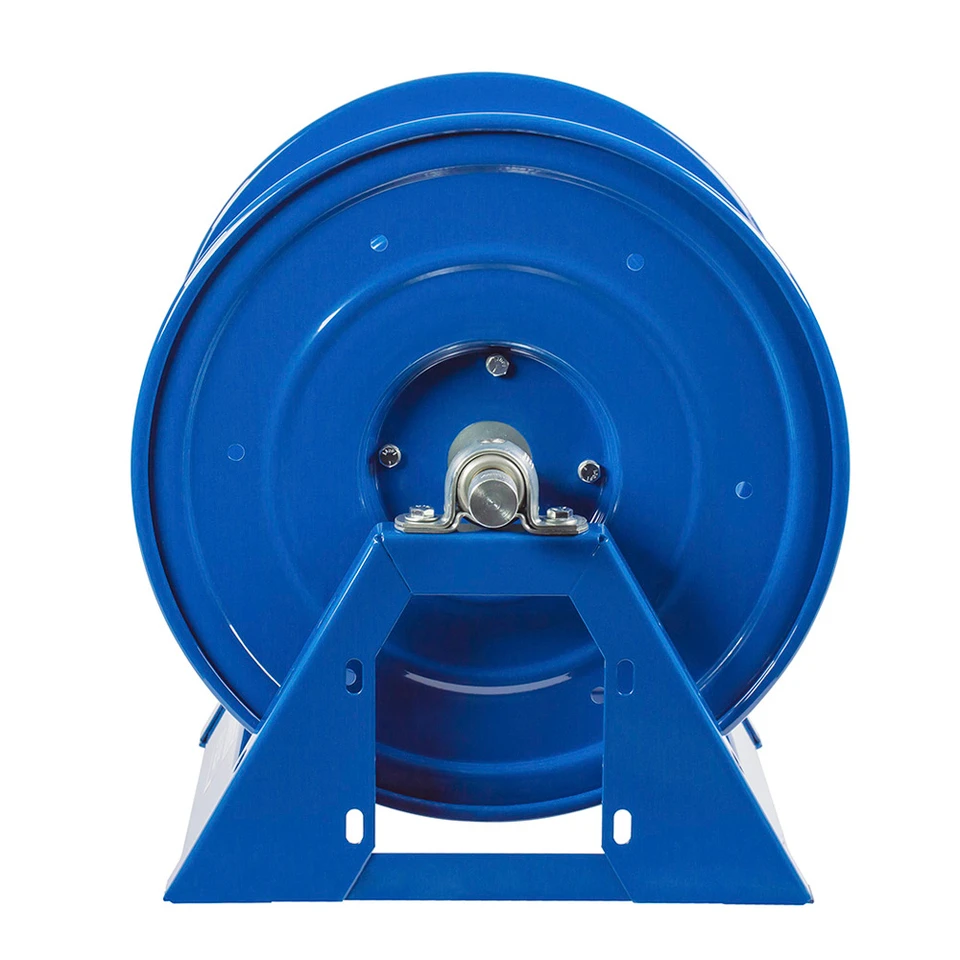

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Electric Motor Rewind Hose Reel | Series: 1125 Series | Model: 1125-6-50-E | Configuration: Less Hose | Motor: 12V DC, 1/3 HP | Hose I.D.: 1" | Hose O.D.: 1-7/16" | Hose Capacity: 50 ft | Hose Included: No | Max Pressure: 3000 PSI | Overall Dimensions: 29.88" W x 19.13" H x 17.63" L | Mounting Pattern: 25.94" M x 10" N | Base: 20.38" X x 16" Y | Ship Weight: 68 lb

Features:

• 12V DC, 1/3 HP electric motor rewind helps retrieve 1" hose assemblies without manual cranking.
• Direct gear drive on motor driven models provides quiet, smooth retraction with no chain drive.
• One-piece all welded steel "A" frame construction provides a rigid base for truck, trailer, skid, floor, bench, or equipment-mounted installations.
• Low-profile outlet riser and open drum slot help guide hose into a flat wrap while reducing sharp bends at the outlet path.
• Nickel plated steel 90° full-flow NPT swivel on 1" models supports efficient flow through the reel's fluid path.
• AFLAS swivel seals are used on 1" models for the reel's medium-pressure service configuration.
• Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation during payout and rewind.
• Rolled edges, ribbed discs, CPC powder coat finish, adjustable tension brake, and long-handled locking pin support hose protection, corrosion resistance, controlled operation, and transport security.

Made in USA:

2 Year Warranty

Applications:

• Fleet and utility service trucks using 12V DC power to manage 1" hose assemblies.
• Industrial MRO departments storing medium-pressure hose for air, water, oil, grease, lubrication, washdown, or pressure service.
• Mobile maintenance skids, trailers, and equipment packages where electric rewind reduces manual hose handling.
• Pressure washing, spraying, and water service setups when the selected hose and fittings match the reel’s 3000 PSI rating.
• Agricultural, grounds maintenance, and field service operations requiring a less-hose reel for application-specific hose selection.

FAQs:

• Q: What does "less hose" mean on the Coxreels 1125-6-50-E?
  A: It means this reel is supplied without hose installed. The buyer must provide compatible hose separately and confirm hose I.D., hose O.D., pressure rating, fitting style, and media compatibility before installation.
• Q: What does the E suffix mean?
  A: The E suffix identifies the 12V DC, 1/3 HP electric motor rewind option for this model. This version is commonly selected when 12V DC power is available on the vehicle, skid, or equipment where the reel will be mounted.
• Q: Can this reel be used at the full 3000 PSI rating?
  A: Yes, only when the installed hose, fittings, swivel, and connected system components are also rated for the same working pressure and media. The completed hose assembly should always be operated within the limit of the lowest-rated component.
• Q: What hose size does this model accept?
  A: This model is listed for 50 ft of 1" I.D. hose with a 1-7/16" O.D. Using a hose with a different outside diameter may change actual capacity and affect how the hose wraps on the drum.
• Q: What should be checked before mounting this electric rewind reel?
  A: Confirm available mounting space, hose pull direction, 12V DC power supply, motor clearance, hose bend radius, and access for installation or service. This model lists overall dimensions of 29.88" W x 19.13" H x 17.63" L.
