Coxreels 1125-6-50-C Bevel Geared Crank Hose Reel | 1125 Series | 1" Hose Diameter | 50' Hose Length | 3000 Max PSI | Less Hose

When 50 feet of 1-inch I.D. hose needs to come back in manually no shop air, no electrical connection, just the operator turning a crank the Coxreels 1125-6-50-C makes the job manageable with a front bevel geared crank and removable handle. The bevel gear crank (a gear-assisted hand crank mounted at the front face of the reel that multiplies winding effort, reducing the arm strain of pulling 50 feet of heavy large-bore hose onto the drum by direct force alone) gives full operator control over retraction speed on remote job sites, mobile units, and any installation point where powered retraction infrastructure doesn't exist. The removable handle stows flat for compact storage on truck beds, equipment trailers, and wall-mount positions where a protruding crank handle creates a clearance problem. Rated to 3,000 PSI at up to 250°F for compressed air, water, and oil service. As standard on all 1125 Series 1-inch models, the swivel is nickel plated steel with AFLAS seals a fluoroelastomer compound providing better chemical resistance than the nitrile seals used on smaller bore models in the same series. Built on the CNC robotically welded 12-gauge steel "A" frame used across the 1125 family.

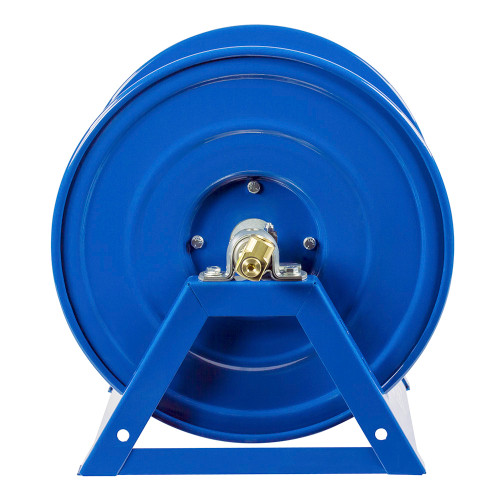

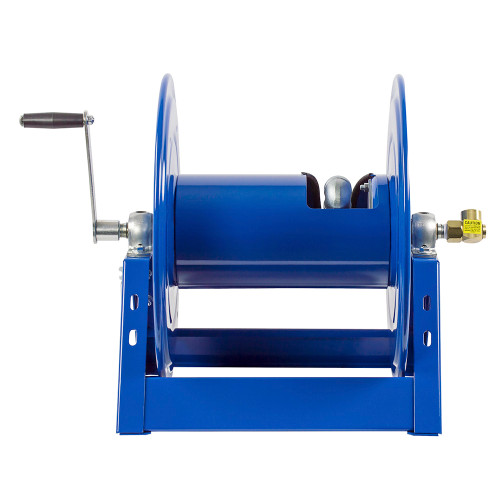

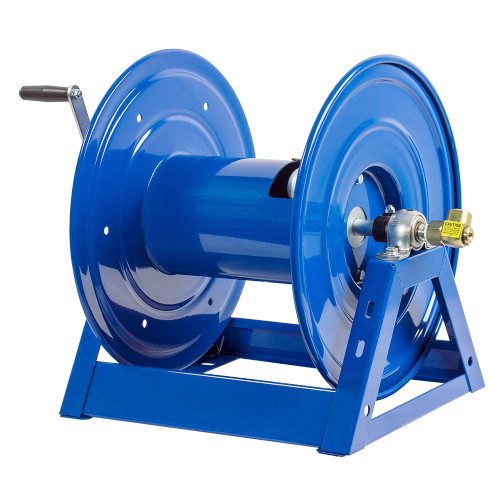

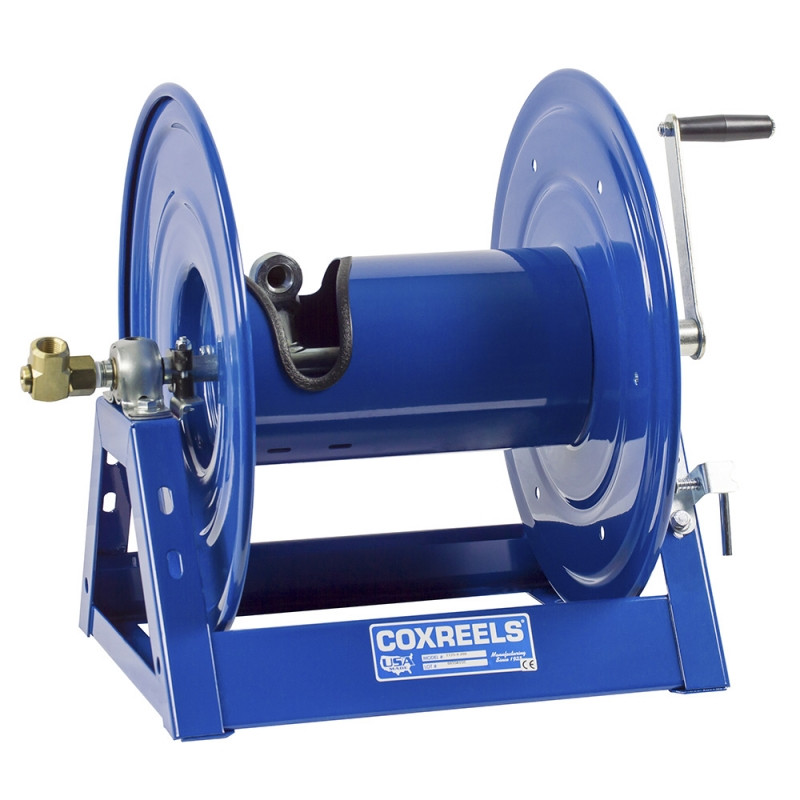

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Bevel Geared Hand Crank Hose Reel | Series: 1125 | Crank Type: Front Bevel Gear with Removable Handle | Hose I.D. (in.): 1 | Hose O.D. (in.): 1-7/16 | Hose Capacity (ft.): 50 | Hose Included: No | Max PSI: 3,000 | Max Temperature (°F): 250 | Inlet Swivel: 1 in. F NPT | Swivel Material: Nickel Plated Steel | Swivel Seals: AFLAS | Width (in.): 32 | Height (in.): 18.5 | Length (in.): 17.63 | Drum Width (in.): 15.5

Features

• Front bevel geared crank with removable handle gear-assisted winding reduces effort on 50 feet of heavy 1-inch hose; handle removes for flat, compact storage on vehicles, trailers, and wall mounts
• No power source required no shop air supply or electrical connection; operates anywhere the reel is mounted
• Nickel plated steel 90° full-flow 1" NPT swivel with AFLAS seals standard on all 1125 Series 1-inch models for improved chemical resistance over the brass/nitrile swivel used on smaller hose sizes
• Adjustable tension brake prevents free-wheeling during hose deployment for controlled line management
• Long-handled locking pin secures reel from rotation during transport or storage
• Exclusive low profile outlet riser and open drum slot design provides non-crimping, flat smooth hose wrap to protect large-bore hose and extend service life
• One-piece CNC robotically welded 12-gauge steel "A" frame base (not bolted) with integrated mounting pattern for permanent or mobile installation
• Heavy duty CNC robotically spun and ribbed discs with rolled edges for structural strength, hose protection, and operator safety
• CPC powder coat finish chip resistant and rust inhibiting for shop, plant, and covered outdoor environments

Made in USA:

2 Year Warranty

Applications

• High-CFM compressed air supply - remote & mobile - gear-cranked 1-inch air drops on job sites and service trucks where no shop air is available to power a motorized reel and 50 feet of reach is required to cover the working area
• Industrial washdown & high-flow water service - 50-foot large-bore water drops at processing plants and cleaning stations where operator-controlled retraction speed is preferred and no power source is available at the reel position
• Agricultural & rural equipment service - 1-inch water and chemical supply at farms and remote facilities with longer working distances where power infrastructure is limited and manual operation is the practical choice
• Construction & infrastructure sites - high-flow hose management on sites with larger working footprints where 50-foot reach is needed and no electrical or air-motor power is available at the installation point
• Plant & facility maintenance - fixed 1-inch service drops where the 50-foot reach covers wider bays or longer equipment runs and operator preference for manual retraction control outweighs the convenience of motorized rewinding

FAQs

• Q: What is the difference between the 1125-6-50-C and the 1125-6-35-C?
• A: Same bevel gear crank with removable handle on the same 1-inch bore the 50-foot model adds 15 feet of hose capacity on a wider drum (15.5-inch drum width vs 9.5 inches). The bevel gear assist is particularly valuable on the 50-foot model, where the extra hose weight makes direct-crank retraction noticeably more demanding. Choose the 50-foot model when reach is the constraint; choose the 35-foot model when footprint is the priority.
• Q: When should I choose this manual model over a motorized option?
• A: Choose the -C when no shop air or electrical power is available at the installation point, when the reel will be used on a mobile or remote unit, or when you prefer direct operator control over retraction speed. Motorized options (-AB, -E, -EB, etc.) are the better choice for high-cycle fixed stations where hands-free automatic retraction saves time on every use.
• Q: Does this reel come with hose?
• A: No sold less hose. The drum holds up to 50 feet of 1-inch I.D. (1-7/16-inch O.D. max) hose, or up to 75 feet of 3/4-inch I.D. hose with a reducer.
