Coxreels 1125-6-50-ED Electric 12V DC Explosion Proof 1/2 HP Motor Rewind Hose Reel | 1125 Series | 1" Hose Diameter | 50' Hose Length | 3000 Max PSI | Less Hose

Built for powered hose retrieval on service trucks, mobile maintenance skids, fleet service units, and industrial MRO stations where a 12V DC explosion proof motor option is required, the Coxreels 1125-6-50-ED is a 1125 Series electric motor rewind hose reel configured for 50 ft of 1" I.D. hose. The 12V DC explosion-proof, 1/2 HP motor helps retract larger hose assemblies without manual cranking, making this model useful for vehicle-mounted or equipment-mounted systems that require DC rewind power and an explosion-proof motor selection.

Rated for 3000 PSI, the 1125-6-50-ED supports medium-pressure service when the installed hose, fittings, swivel, and connected components are rated for the same working pressure and media. Coxreels' 1125 Series construction uses a one-piece all-welded steel "A" frame, low-profile outlet riser, and open drum slot to help guide hose into a flat, smooth wrap during rewind. The less hose configuration gives buyers flexibility to install the correct hose material, pressure rating, fitting style, and media compatibility for air, water, oil, grease, lubrication, washdown, spraying, pressure washing, or fluid-transfer service.

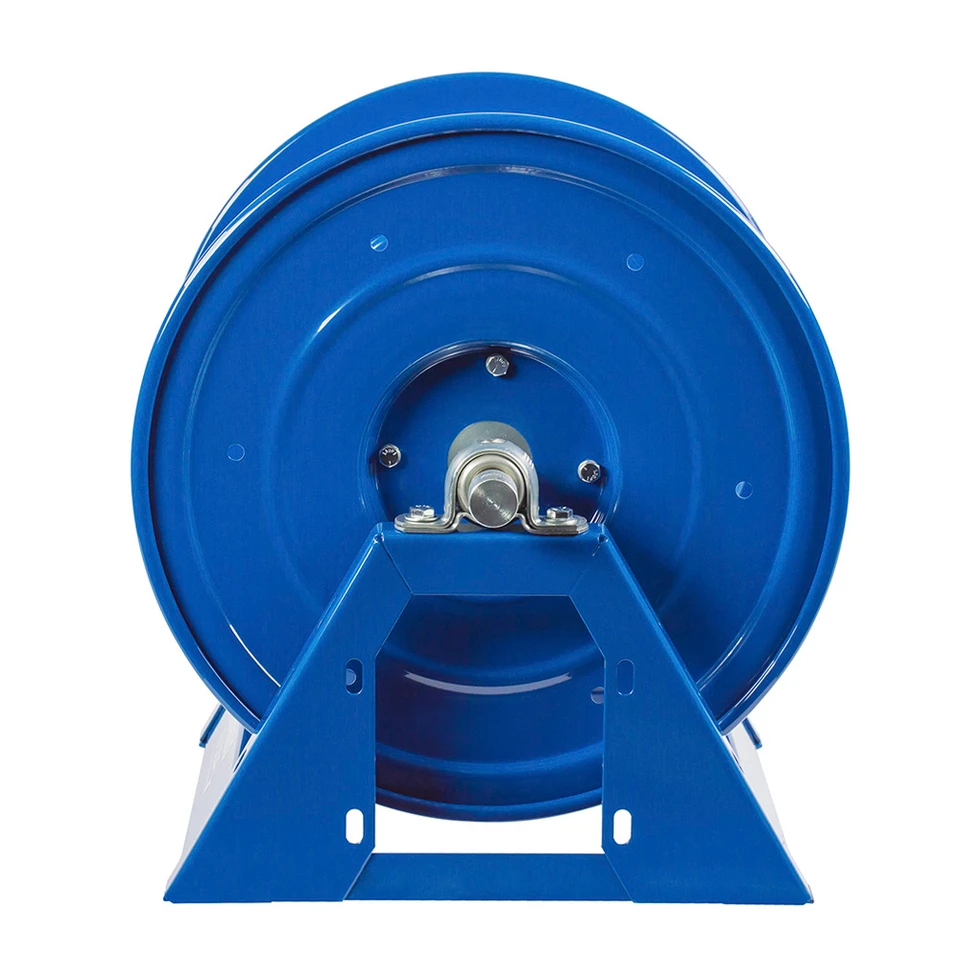

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Electric Motor Rewind Hose Reel | Series: 1125 Series | Model: 1125-6-50-ED | Configuration: Less Hose | Motor: 12V DC Explosion Proof, 1/2 HP | Hose I.D.: 1" | Hose O.D.: 1-7/16" | Hose Capacity: 50 ft | Hose Included: No | Max Pressure: 3000 PSI | Overall Dimensions: 29.88" W x 19.13" H x 17.63" L | Mounting Pattern: 25.94" M x 10" N | Base: 20.38" X x 16" Y | Ship Weight: 75 lb

Features:

• 12V DC explosion-proof, 1/2 HP electric motor rewind helps retrieve 1" hose assemblies without manual cranking.
• Direct gear drive on motor driven models provides quiet, smooth retraction with no chain drive.
• One-piece all welded steel "A" frame construction provides a rigid mounting base for truck, trailer, skid, floor, bench, or equipment-mounted installations.
• Low-profile outlet riser and open drum slot help guide hose into a flat wrap while reducing sharp bends at the outlet path.
• Nickel plated steel 90° full-flow NPT swivel on 1" models supports efficient flow through the reel's fluid path.
• AFLAS swivel seals are used on 1" models for the reel's medium-pressure service configuration.
• Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation during payout and rewind.
• Rolled edges, ribbed discs, CPC powder coat finish, adjustable tension brake, and long-handled locking pin support hose protection, corrosion resistance, controlled operation, and transport security.

Made in USA:

2 Year Warranty

Applications:

• Fleet and utility service trucks using 12V DC power to manage 1" hose assemblies with powered rewind.
• Industrial MRO departments storing medium-pressure hose for air, water, oil, grease, lubrication, washdown, or pressure service.
• Mobile maintenance skids, trailers, and equipment packages where electric rewind reduces manual hose handling.
• Pressure washing, spraying, and water service setups when the selected hose and fittings match the reel’s 3000 PSI rating.
• Facilities specifying a 12V DC explosion-proof motor option for the reel drive, subject to verification against the site's electrical classification and installation requirements.

FAQs:

• Q: What does "less hose" mean on the Coxreels 1125-6-50-ED?
  A: It means this reel is supplied without hose installed. The buyer must provide compatible hose separately and confirm hose I.D., hose O.D., pressure rating, fitting style, and media compatibility before installation.
• Q: What does the ED suffix mean?
  A: The ED suffix identifies the 12V DC explosion-proof, 1/2 HP electric motor rewind option. This version is selected when 12V DC rewind power and an explosion-proof motor option are required for the installation.
• Q: Is this reel approved for every hazardous location?
  A: No. "Explosion proof" identifies the motor option, but the full installation must still be checked against the facility's electrical classification, wiring method, control package, and local code requirements. A qualified electrician or safety professional should confirm suitability before installation.
• Q: Can this reel be used at the full 3000 PSI rating?
  A: Yes, only when the installed hose, fittings, swivel, and connected system components are also rated for the same working pressure and media. The completed hose assembly should always be operated within the limit of the lowest-rated component.
• Q: How is this different from the 1125-6-50-E?
  A: Both models are 12V DC electric rewind reels with 1" hose capacity and a 3000 PSI reel rating. The 1125-6-50-ED uses a 12V DC explosion-proof, 1/2 HP motor, while the 1125-6-50-E uses a 12V DC, 1/3 HP motor.
