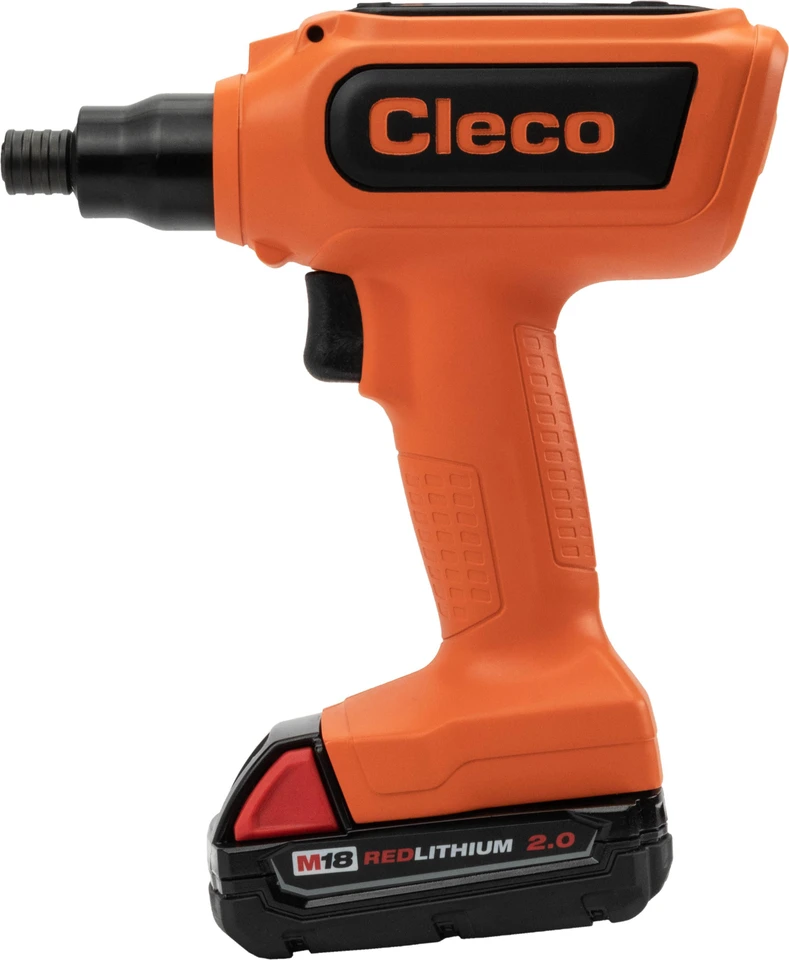

Cleco CCBPW22Q CellCore Cordless Electric Pneumatic Nutrunner | 430 RPM | 4.9 - 16.2 (ft-lb) Torque Range

When controlled fastening needs to move beyond a fixed workstation, the Cleco CCBPW22Q CellCore Cordless Electric Pistol Nutrunner gives assembly teams a hose-free tool for repeatable medium-torque rundown work. Its 4.9 - 16.2 ft-lbs torque range supports precision fastening on joints that need more control than a general drill or impact driver, while the 430 RPM free speed helps run fasteners down efficiently before final torque is reached. The 1/4" hex quick-change output accepts compatible hex-drive bits and adapters for production fastening setups where quick bit changes matter.

Part of Cleco’s CellCore cordless assembly platform, the CCBPW22Q combines on-tool programming with cordless mobility for automotive assembly, appliance production, heavy truck subassembly, and industrial rework stations. CellCore tools support FastApps, which are programmable rundown strategies stored directly on the tool, and can also pair with compatible Cleco controllers for advanced programming and real-time fastening data collection. This listing is for the tool only; the battery and charger are sold separately.

Please note that this listing is for the tool only; the Cordless Battery and Charger are not included with the tool and need to be purchased separately.

Type: Cordless Electric Pistol Nutrunner | Series: CellCore | Model: CCBPW22Q | Torque Range: 4.9 - 16.2 ft-lbs / 6.6 - 22 Nm | Free Speed: 430 RPM | Drive Size: 1/4" | Drive Type: Hex Quick Change | Weight Without Battery: 2.32 lbs / 1.05 kg | Length: 7.89" / 201 mm | Side to Center: 1.14" / 29 mm | Height: 8.03" / 204 mm

Features:

• CellCore cordless platform eliminates air hoses and power cords at the workstation while supporting controlled assembly fastening.
• 4.9 - 16.2 ft-lbs torque range is suited to medium-torque joints where repeatability matters more than impact-style breakaway force.
• 430 RPM free speed supports efficient run-down on repetitive fastening cycles before the tool completes the programmed tightening sequence.
• 1/4" hex quick change drive allows fast bit changes for production lines using compatible hex-drive tooling.
• Large on-tool user interface allows programming directly on the tool without requiring a controller for basic standalone use.
• FastApps allow users to store up to 10 rundown strategies for common fastening sequences.
• Compatible with Cleco mPro controller pairing for real-time data capture and advanced rundown programming.
• Assembly-line tough construction is drop tested up to 5 feet and rated by Cleco for 500,000 cycles between maintenance.

Made in USA:

Note: Cordless Battery and Charger Sold Separately. Batteries and Chargers can be purchased from the following links:

Batteries:

• Cleco T50-1000497 Smart Lithium-Ion Battery
• Cleco T50-1000498 Smart Lithium-Ion Battery

Chargers:

• Cleco T50-1000499 Rapid Charger
• Cleco T50-1000500 6-Bay Sequential Charger

Applications:

• Automotive assembly — fastening brackets, interior components, housings, and other medium-torque joints where cordless movement improves station layout.
• Appliance and equipment manufacturing — controlled fastening on panels, frames, mounts, and repeated assembly points using programmed rundown strategies.
• Heavy truck and trailer production — tightening nuts, bolts, and hardware on subassemblies where a compact pistol tool is easier to position than corded tooling.
• Industrial maintenance and rework cells — cordless fastening and removal tasks on repair benches, quality stations, and low-volume assembly fixtures.
• General production fastening — quick-change bit work where 1/4" hex tooling and repeatable torque control are both required.

FAQs:

• Q: Is the Cleco CCBPW22Q a pneumatic tool?
  A: No. Despite some listing language using “pneumatic,” the CCBPW22Q is a cordless electric CellCore nutrunner. It does not require compressed air or an FRL to operate.
• Q: What does the 1/4" hex quick change output mean?
  A: The tool accepts compatible 1/4" hex-drive bits and adapters. Quick change means operators can swap compatible tooling faster than with standard chuck-style setups.
• Q: Does this tool include a battery and charger?
  A: No. This listing is for the tool only. Cleco cordless batteries and chargers must be purchased separately.
• Q: What kind of fastening work fits the 4.9 - 16.2 ft-lbs torque range?
  A: This range fits medium-torque production fastening where controlled tightening is required. It is not intended for high-torque breakaway work or impact-wrench applications.
• Q: Can the CCBPW22Q store fastening programs on the tool?
  A: Yes. CellCore tools support FastApps, allowing up to 10 rundown strategies to be programmed directly on the tool for common fastening sequences.

Looking for more information about Cleco Nutrunner? Click here to view the Catalog

Need help selecting the correct Cleco Nutrunners for your application? Please call (800) 608-5210 or email info@intlairtool.com
