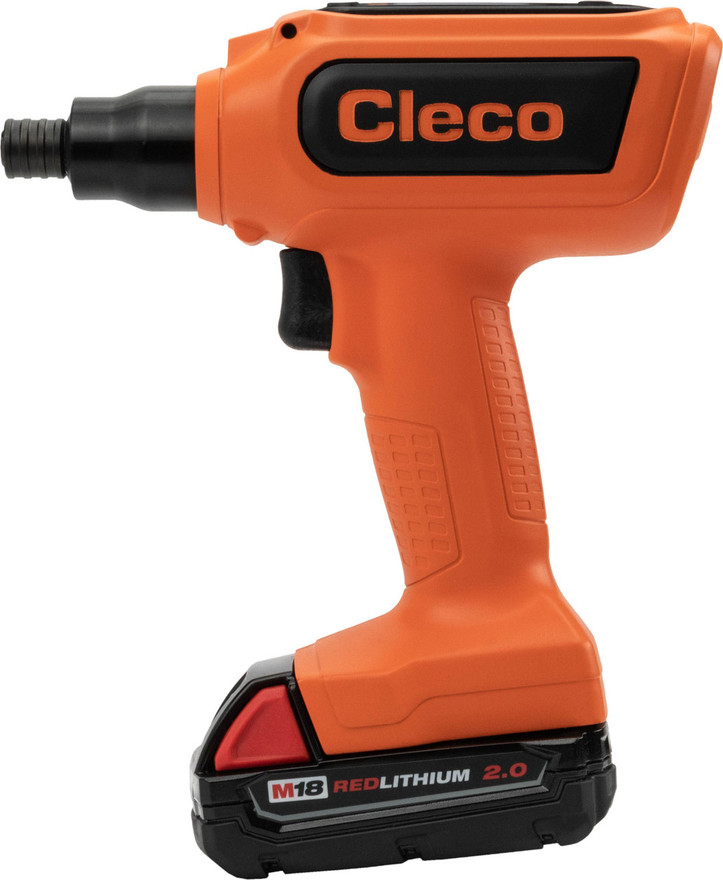

Cleco CCBPW04Q CellCore Cordless Electric Pneumatic Nutrunner | 2,480 RPM | 0.9 - 2.9 (ft-lbs) Torque Range

Built for controlled fastening in assembly cells, repair stations, and quality-critical production work, the Cleco CCBPW04Q CellCore cordless electric pistol nutrunner delivers a compact 0.9 - 2.9 ft-lbs torque range with 2,480 RPM speed for fast rundown on light fasteners. The 1/4" hex quick-change output accepts compatible hex bits quickly, helping operators move between fastening tasks without slowing the line.

The CCBPW04Q combines cordless mobility with Cleco CellCore smart-tool capability, including an on-tool digital transducer and servo system, which measures fastening output electronically to support repeatable torque control. WiFi, Bluetooth, and Cleco Global Controller compatibility make this tool suited for connected assembly environments where fastening data, visual feedback, and repeatable rundown strategies matter.

Please note that this listing is for the tool only; the Cordless Battery and Charger are not included with the tool and need to be purchased separately.

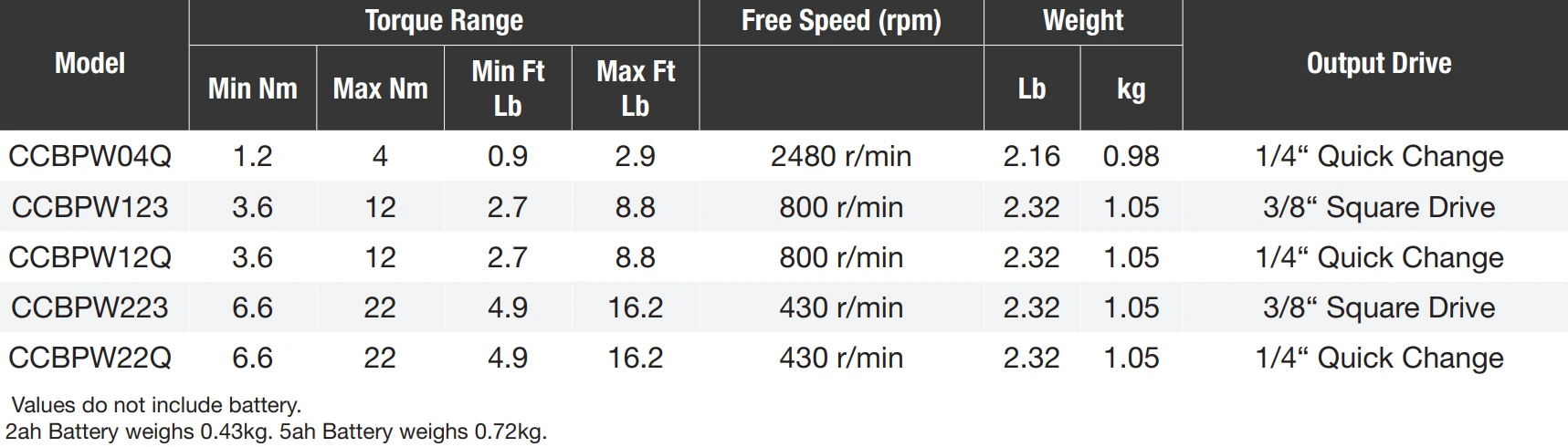

Type: Cordless Electric Pistol Nutrunner | Series: CellCore | Model: CCBPW04Q | Torque Range: 1.2 - 4 Nm / 0.9 - 2.9 ft-lbs | Speed: 2,480 r/min | Output: 1/4" Hex Quick Change | Weight Without Battery: 0.98 kg / 2.16 lb | Length: 185 mm / 7.27 in | Height: 204 mm / 8.03 in | Side to Center: 29 mm / 1.14 in | Connectivity: WiFi 2.4 & 5.0 GHz and Bluetooth 4.0

Features:

• CellCore cordless platform supports controlled fastening without a trailing air hose or power cord at the workstation.
• 1/4" hex quick change output allows fast bit changes for light fastening and assembly tasks.
• Forward and backward compatibility with Cleco’s entire Global Controller platform supports integration into existing Cleco fastening systems.
• Color worklight on the tool provides secondary okay/not okay visual feedback for quick operator confirmation.
• “Stay Alive” function prevents reboot during battery change, helping reduce downtime between packs.
• On-tool digital transducer and servo provide fastening information used to help reduce process errors.
• Connects over WiFi 2.4 & 5.0 GHz and Bluetooth 4.0 for wireless communication in connected assembly environments.
• Accuracy rating of Cm/Cmk 2.0 @ 10% for quality critical joints, as specified by Cleco.

Made in USA:

Note: Cordless Battery and Charger Sold Separately. Batteries and Chargers can be purchased from the following links:

Batteries:

• Cleco T50-1000497 Smart Lithium-Ion Battery
• Cleco T50-1000498 Smart Lithium-Ion Battery

Chargers:

• Cleco T50-1000499 Rapid Charger
• Cleco T50-1000500 6-Bay Sequential Charger

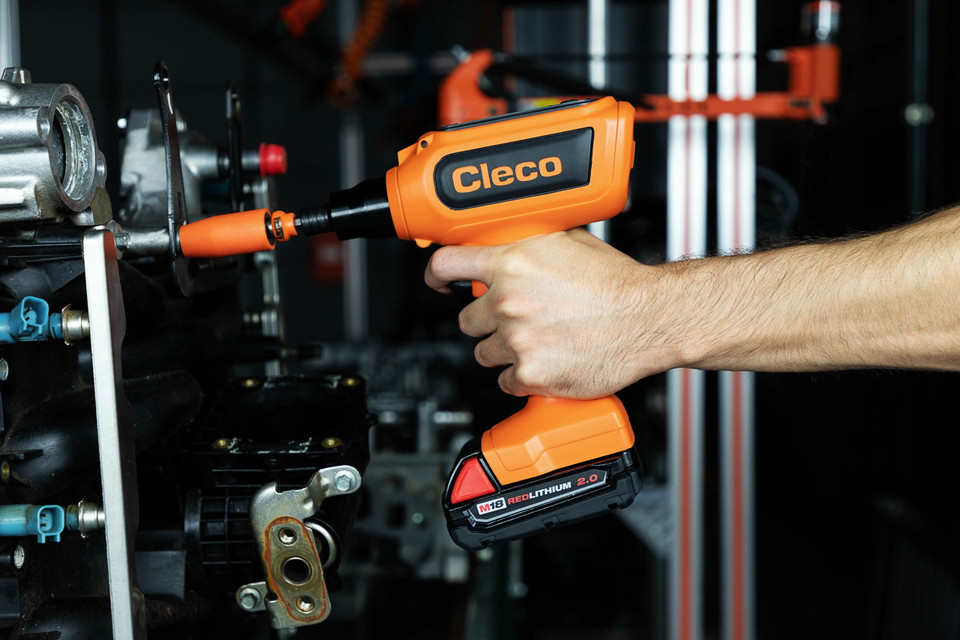

Applications:

• Electronics and appliance assembly where low-torque threaded fasteners require repeatable tightening.
• Automotive component assembly for brackets, covers, interior hardware, and other light fastener work.
• General manufacturing stations that need cordless mobility with fastening feedback and controller compatibility.
• Quality-critical assembly lines where operators benefit from visual okay/not okay feedback at the tool.
• Maintenance and rework benches handling small fasteners that fall within the 0.9 - 2.9 ft-lbs torque range.

FAQs:

• Q: Is the CCBPW04Q pneumatic or cordless electric?
  A: This model is a cordless electric CellCore pistol nutrunner. It does not require compressed air for operation.
• Q: What does 1/4" hex quick change mean?
  A: It means the tool uses a 1/4" internal hex output with a quick-change mechanism for compatible fastening bits. This helps reduce bit-change time during assembly work.
• Q: Are battery and charger included?
  A: The manufacturer data reviewed shows the tool specifications without battery weight and shows a 2Ah battery in the product image, but it does not confirm that a battery or charger is included with this SKU. Please verify kit contents before publishing or ordering.
• Q: Can this tool connect to Cleco controllers?
  A: Yes. Cleco lists compatibility with the mPro200GC, mPro200GC-AP, and mPro400 Family, along with forward and backward compatibility with Cleco’s Global Controller platform.
• Q: What type of fastening is this torque range best suited for?
  A: The 0.9 - 2.9 ft-lbs range is best suited for light controlled fastening, such as small screws, covers, brackets, and assembly hardware that require repeatable low-torque tightening.

Looking for more information about Cleco Nutrunner? Click here to view the Catalog

Need help selecting the correct Cleco Nutrunners for your application? Please call (800) 608-5210 or email info@intlairtool.com
