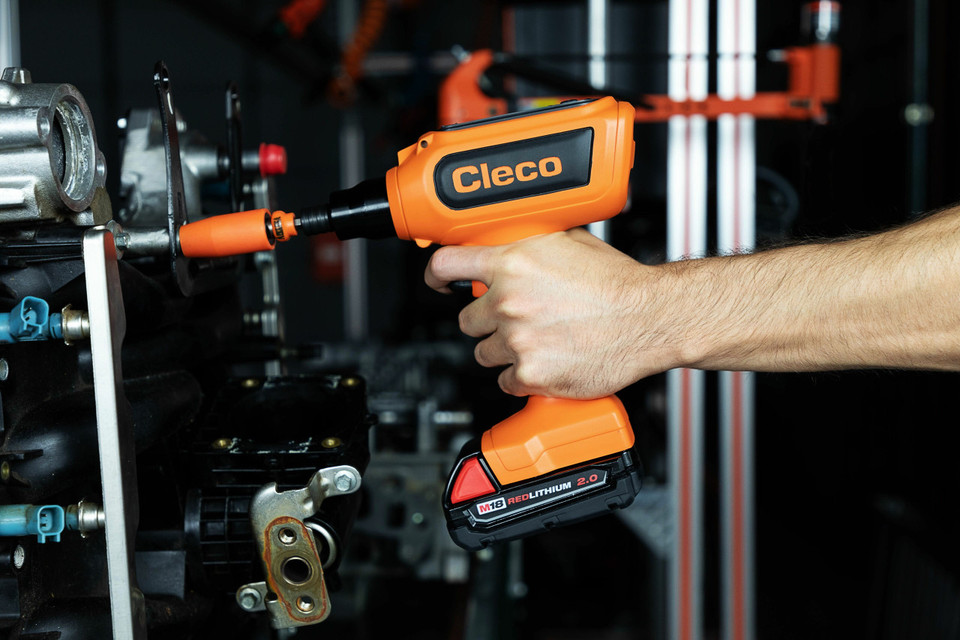

Cleco CCBPW223 CellCore Cordless Electric Pneumatic Nutrunner | 430 RPM | 4.9 - 16.2 (ft-lbs) Torque Range

When production fastening calls for cordless mobility with controlled rundown capability, the Cleco CCBPW223 CellCore Cordless Electric Pistol Nutrunner provides a compact fastening tool for quality-critical assembly work. Its 4.9 - 16.2 ft-lbs torque range gives assembly teams useful control for medium-torque fastening, while the 430 RPM free speed supports consistent run-down before final torque is reached. The 3/8" square drive accepts compatible square-drive sockets, and the CellCore platform allows on-the-tool programming for rundown strategies without requiring a controller for basic standalone use.

The CCBPW223 is part of Cleco’s CellCore cordless assembly tool family, built for production environments where repeatable fastening, tool balance, and connected assembly options matter. CellCore tools can be used in standalone mode with FastApps, which are programmable rundown strategies stored on the tool, or paired with compatible Cleco controllers for more advanced data capture and process control. Published weight values do not include the battery, so confirm battery and charger configuration before ordering.

Please note that this listing is for the tool only; the Cordless Battery and Charger are not included with the tool and need to be purchased separately.

Type: Cordless Electric Pistol Nutrunner | Series: CellCore | Model: CCBPW223 | Torque Range: 4.9 - 16.2 ft-lbs / 6.6 - 22 Nm | Free Speed: 430 RPM | Output: 3/8" Square Drive | Weight Without Battery: 2.32 lbs / 1.05 kg | Length: 7.79" / 198 mm | Side to Center: 1.14" / 29 mm | Height: 8.03" / 204 mm

Features:

• CellCore cordless platform supports production fastening without an air hose or power cord at the workstation.
• 4.9 - 16.2 ft-lbs torque range is suited to controlled medium-torque assembly tasks where repeatability matters.
• 430 RPM free speed helps move fasteners through run-down efficiently before the tool reaches the programmed fastening stage.
• 3/8" square drive output works with compatible square-drive sockets for nut and bolt fastening applications.

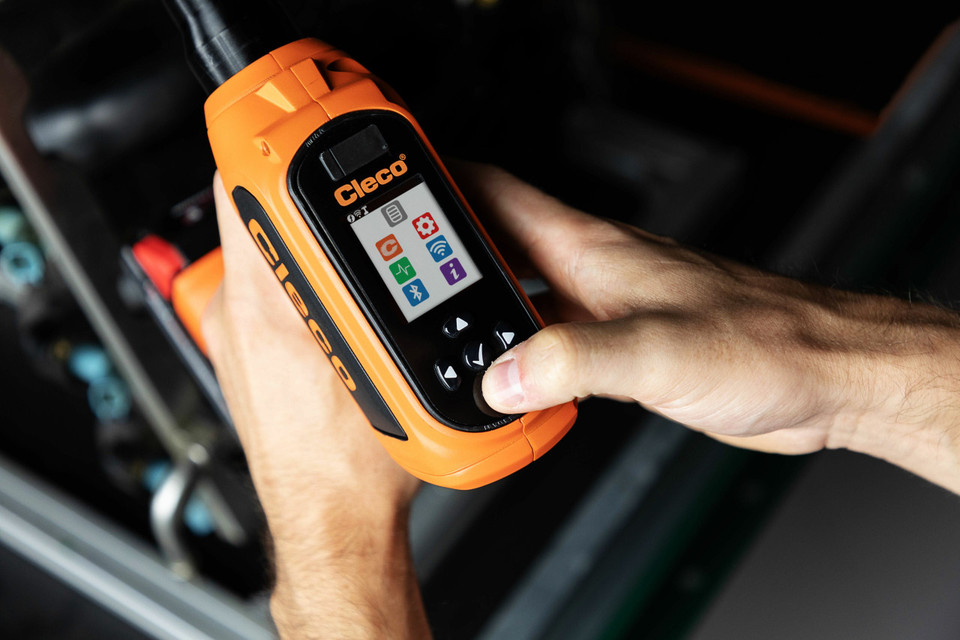

• Large on-tool user interface allows programming directly on the tool in standalone mode without a controller.
• FastApps allow users to store up to 10 rundown strategies for common fastening sequences.
• CellCore tools can be paired with compatible Cleco mPro controllers for real-time data capture and advanced rundown programming.
• Assembly-line tough construction is supported by Cleco’s published drop-tested design and 500,000 cycles between maintenance claim for the CellCore family.

Made in USA:

Note: Cordless Battery and Charger Sold Separately. Batteries and Chargers can be purchased from the following links:

Batteries:

• Cleco T50-1000497 Smart Lithium-Ion Battery
• Cleco T50-1000498 Smart Lithium-Ion Battery

Chargers:

• Cleco T50-1000499 Rapid Charger
• Cleco T50-1000500 6-Bay Sequential Charger

Applications:

• Automotive assembly — fastening brackets, housings, interior components, and medium-torque bolted joints where cordless movement improves station layout.
• Heavy truck and trailer production — running down nuts and bolts on subassemblies where torque control and tool mobility are both important.
• Appliance and equipment manufacturing — repeat fastening on panels, frames, mounts, and mechanical assemblies using programmable rundown strategies.
• Agriculture and lawn equipment assembly — controlled fastening on fabricated frames, guards, brackets, and power-equipment components.
• Industrial maintenance and rework stations — cordless tightening and removal tasks where a compact pistol nutrunner is easier to position than corded or pneumatic tooling.

FAQs:

• Q: Is the Cleco CCBPW223 pneumatic or cordless electric?
  A: The CCBPW223 is a cordless electric CellCore pistol nutrunner. It does not require compressed air for operation.
• Q: What does the 4.9 - 16.2 ft-lbs torque range mean?
  A: This is the working torque range for the tool. Select this model when your fastening process falls within 6.6 - 22 Nm and requires controlled rundown rather than impact-style breakaway force.
• Q: What socket type does this nutrunner use?
  A: The CCBPW223 uses a 3/8" square drive output. Use sockets and accessories that match the tool’s drive size and the fastener being assembled.
• Q: Does the CCBPW223 include a battery and charger?
  A: The provided catalog data lists the tool specifications and notes that weight values do not include the battery. Battery and charger inclusion was not confirmed in the supplied source data, so kit contents should be verified before publishing or ordering.
• Q: Can this tool collect fastening data?
  A: CellCore tools can be paired with compatible Cleco controllers for real-time data capture and more advanced rundown programming. Confirm controller compatibility and plant software requirements before standardizing this tool on a line.
