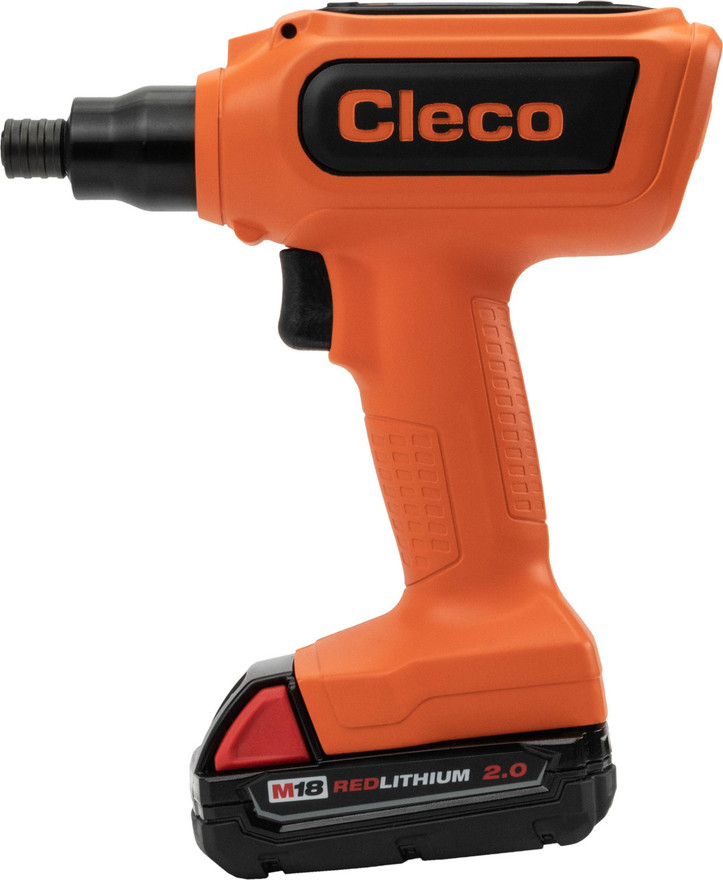

Cleco CCBPW12Q CellCore Cordless Electric Pneumatic Nutrunner | 800 RPM | 2.7 - 8.8 (ft-lbs) Torque Range

Built for controlled fastening in assembly cells, rework benches, and quality-focused production areas, the Cleco CCBPW12Q CellCore cordless electric pistol nutrunner delivers a 2.7 - 8.8 ft-lbs torque range with 800 RPM speed for repeatable rundown on light assembly fasteners. Its 1/4" hex quick-change output accepts compatible hex-drive bits quickly, helping operators move between fastening tasks without slowing production flow.

The CCBPW12Q combines cordless mobility with Cleco CellCore smart-tool capability for fastening stations where torque control, operator feedback, and wireless connectivity matter. The on-tool digital transducer and servo system measure fastening output electronically, while WiFi, Bluetooth, and Cleco Global Controller compatibility support connected assembly environments that require fastening data, repeatable rundown strategies, and visual okay/not okay confirmation at the tool.

Please note that this listing is for the tool only; the Cordless Battery and Charger are not included with the tool and need to be purchased separately.

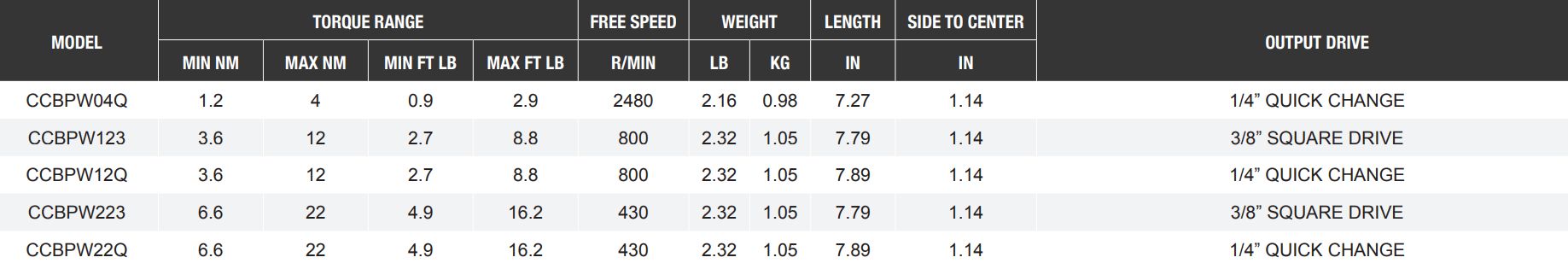

Type: Cordless Electric Pistol Nutrunner | Series: CellCore | Model: CCBPW12Q | Torque Range: 3.6 - 12 Nm / 2.7 - 8.8 ft-lbs | Speed: 800 r/min | Output: 1/4" Hex Quick Change | Weight Without Battery: 1.05 kg / 2.32 lb | Length: 201 mm / 7.89 in | Height: 204 mm / 8.03 in | Side to Center: 29 mm / 1.14 in | Connectivity: WiFi 2.4 & 5.0 GHz and Bluetooth 4.0

Features:

• CellCore cordless platform gives assembly teams controlled fastening without a trailing air line or power cord.
• 1/4" hex quick change output allows fast bit changes for screwdriving and light nutrunner applications.
• Durable, assembly-line-tough construction is drop tested up to 5 feet.
• Reliable fastening platform supports increased uptime with 500k cycles between maintenance.
• Large user interface allows on-the-tool programming without a controller for faster station setup.
• Users can program up to 10 rundown strategies, called FastApps, directly on the tool in standalone mode.
• Compatible with Cleco Global Controller platforms for advanced rundown programming and fastening data capture.
• Color worklight provides secondary okay/not okay visual feedback to help operators confirm fastening status quickly.

Made in USA:

Note: Cordless Battery and Charger Sold Separately. Batteries and Chargers can be purchased from the following links:

Batteries:

• Cleco T50-1000497 Smart Lithium-Ion Battery
• Cleco T50-1000498 Smart Lithium-Ion Battery

Chargers:

• Cleco T50-1000499 Rapid Charger
• Cleco T50-1000500 6-Bay Sequential Charger

Applications:

• Automotive component assembly for covers, brackets, modules, trim hardware, and other low-torque fasteners.
• Electronics and appliance manufacturing where repeatable screwdriving is required at the workstation.
• Industrial assembly cells using connected fastening tools for rundown control, operator feedback, and production traceability.
• Maintenance and rework benches handling fasteners that fall within the 2.7 - 8.8 ft-lbs torque range.
• Fixture-based assembly areas where cordless movement helps reduce hose and cable clutter around the workpiece.

FAQs:

• Q: Is the CCBPW12Q pneumatic or cordless electric?
  A: This model is a cordless electric Cleco CellCore pistol nutrunner. It does not require compressed air for operation, even though some listings may use pneumatic-style category wording.
• Q: Are the battery and charger included?
  A: No. This listing is for the tool only; the cordless battery and charger are sold separately and must be purchased separately for operation.
• Q: What does 1/4" hex quick change mean?
  A: It means the tool uses a 1/4" internal hex output with a quick-change mechanism for compatible fastening bits. This is useful for assembly stations where operators need to swap bits quickly between fastening tasks.
• Q: How is the CCBPW12Q different from the CCBPW123?
  A: The CCBPW12Q uses a 1/4" hex quick change output for bits, while the CCBPW123 uses a 3/8" square drive for sockets. Both share the same 2.7 - 8.8 ft-lbs torque range and 800 RPM speed, but the output style determines the type of tooling used.
• Q: Can this tool be used without a controller?
  A: Yes. CellCore tools can be programmed directly on the tool for standalone use, including up to 10 FastApps rundown strategies. Pairing with a Cleco controller enables more advanced programming and data capture.

Looking for more information about Cleco Nutrunner? Click here to view the Catalog

Need help selecting the correct Cleco Nutrunners for your application? Please call (800) 608-5210 or email info@intlairtool.com
