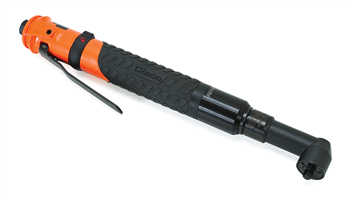

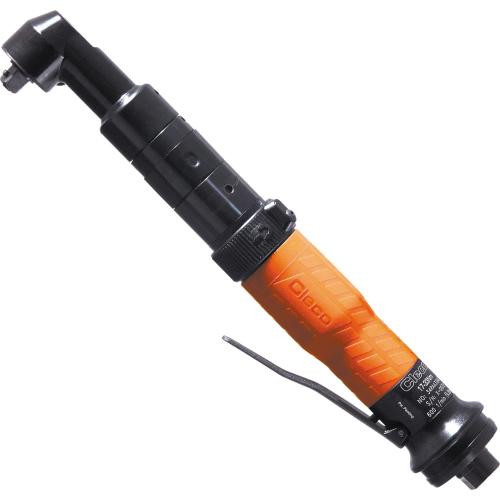

Cleco 34RAA47AX3 Clutch Shut-Off Pneumatic Angle Nutrunner | Lever Start | 385 RPM | 17 - 35 (ft-lbs) Torque Range | 3/8" Drive

For assembly work that needs controlled torque in restricted spaces, the Cleco 34RAA47AX3 Clutch Shut-Off Pneumatic Angle Nutrunner gives production teams a right-angle fastening tool with a higher torque band in the 34 Series. Its 17 - 35 ft-lbs torque range supports medium-torque fastening on brackets, housings, fixtures, and equipment subassemblies, while the 385 RPM free speed provides a measured rundown rate for applications where torque repeatability is more important than maximum speed. The 3/8" square drive accepts compatible sockets for nut and bolt fastening in manufacturing, maintenance, and repair environments.

The 34RAA47AX3 uses a Clecomatic Clutch, a shut-off clutch system that stops the tool when the preset torque is reached to help reduce over-tightening and improve joint consistency. Its lever start gives operators deliberate control during repetitive fastening, collar reverse supports quick back-off or rework, and the angle head configuration helps reach fasteners near flanges, panels, brackets, and other obstructions where inline or pistol tools may not fit.

Type: Pneumatic Angle Nutrunner | Series: Cleco 34 Series | Model: 34RAA47AX3 | Start Type: Lever Start | Reverse Type: Collar Reverse | Clutch Type: Clecomatic Clutch Shut-Off | Drive Size: 3/8" Square Drive | Torque Range: 17 - 35 ft-lbs | Free Speed: 385 RPM

Features:

• Clecomatic Clutch shut-off system stops the tool at the preset torque to support repeatable fastening.
• 17 - 35 ft-lbs torque range handles medium-torque assembly joints in production, repair, and MRO work.
• 385 RPM free speed gives controlled rundown for fasteners that require consistent torque instead of impact force.
• 3/8" square drive works with compatible sockets selected for the fastener size and application.
• Right-angle head improves access to fasteners positioned near brackets, housings, panels, and fixture walls.
• Lever start provides deliberate operator control during repetitive fastening cycles.
• Collar reverse allows quick direction changes for fastener removal, alignment correction, and rework.

Made in USA:

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Industrial assembly — tightening medium-torque bolts and nuts on machinery, fixtures, frames, and subassemblies.
• Automotive and off-road equipment production — fastening brackets, covers, housings, and component assemblies where angle access is required.
• Plant maintenance and MRO — reinstalling fasteners during equipment service, guard replacement, and fixture adjustment.
• Rail, appliance, and general manufacturing — repeatable controlled fastening in assembly cells and workstations.
• Bench and jig work — reaching fasteners close to walls, flanges, or adjacent components where straight tools may not align.

FAQs:

• Q: What is the Cleco 34RAA47AX3 used for?
  A: It is used for controlled-torque fastening in assembly and maintenance applications. The right-angle head helps reach fasteners in tight or obstructed areas, while the shut-off clutch helps stop the tool at the preset torque.
• Q: Is this model meant for breaking loose seized fasteners?
  A: No. This is a clutch shut-off assembly nutrunner, not an impact wrench. It should be used for fastening within its 17 - 35 ft-lbs torque range rather than high-force breakaway work.
• Q: Why choose a 385 RPM nutrunner instead of a faster model?
  A: A lower free speed can give better control on higher-torque joints and helps the operator manage rundown as the fastener approaches final torque. It is useful when repeatability and control matter more than maximum cycle speed.
• Q: What sockets fit the 34RAA47AX3?
  A: This model uses a 3/8" square drive. Select compatible 3/8" drive sockets based on the fastener size, clearance, and application requirements.
• Q: Should this pneumatic nutrunner be used with an FRL?
  A: Yes. A properly sized Filter-Regulator-Lubricator helps maintain clean, regulated, lubricated air, which supports consistent tool performance and helps reduce premature wear.
