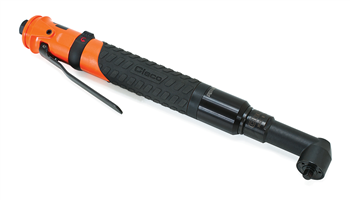

Cleco 34RAA26AH3 Clutch Shut-Off Pneumatic Angle Nutrunner | Lever Start | 710 RPM | 10 - 19 (ft-lbs) Torque Range | 3/8" Drive

When moderate-torque fastening calls for better access and repeatable shut-off, the Cleco 34RAA26AH3 clutch shut-off pneumatic angle nutrunner gives production and maintenance teams a compact 90-degree fastening tool with a 3/8" square drive, 710 RPM free speed, and 10 - 19 ft-lbs torque range. Its Clecomatic clutch shut-off system stops the tool when the preset torque is reached, helping reduce over-tightening and improve fastening consistency on repeated assembly work.

The 34 Series angle body is useful where fasteners sit close to housings, brackets, frames, or fixture walls. With a 0.57" side-to-center distance and 1.22" head height, the 34RAA26AH3 helps operators reach recessed or obstructed fasteners while still delivering the torque control expected from a shut-off pneumatic nutrunner.

Type: Pneumatic Angle Nutrunner | Brand: Cleco | Model: 34RAA26AH3 | Series: 34 Series | Start Type: Lever Start | Clutch Type: Clecomatic Clutch Shut-Off | Direction: Reversible | Drive Size: 3/8" Square Drive | Torque Range: 10 - 19 ft-lbs / 13 - 26 Nm | Free Speed: 710 RPM | Overall Length: 15.4" / 390 mm | Weight: 3.2 lbs / 1.5 kg | Head Height: 1.22" / 31.0 mm | Side to Center: 0.57" / 14.4 mm | Air Inlet: 3/8" NPT | Minimum Hose I.D.: 5/16" | Air Consumption: 34 SCFM

Features:

• Clecomatic clutch shut-off automatically stops the tool at the adjusted torque setting for controlled fastening.
• Angle head layout improves access to fasteners located near walls, flanges, brackets, and other obstructions.
• Lever start provides controlled tool activation for assembly, service, and bench fastening tasks.
• Reversible operation allows the tool to run fasteners in or out when used within the proper torque range.
• 3/8" square drive accepts compatible sockets for nut and bolt fastening applications.
• 710 RPM free speed balances controlled run-down with higher torque output than faster, lower-torque models in the same general family.
• Compact side-to-center dimension helps position the socket on fasteners where clearance is limited.

Made in USA:

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Production assembly: Repeated tightening of nuts, bolts, and subassembly fasteners where preset torque shut-off supports process consistency.
• Automotive and heavy equipment manufacturing: Fastening brackets, guards, covers, panels, and mounted components in moderate-torque ranges.
• Industrial maintenance and MRO: Servicing machinery, fixtures, conveyors, and equipment assemblies that require controlled pneumatic fastening.
• Aerospace and transportation work: Accessing fasteners in confined assembly areas where a 90-degree head improves tool positioning.
• Fixture and workstation fastening: Bench operations where repeatability, access, and socket-drive compatibility are more important than impact-style breakaway power.

FAQs:

• Q: What is the benefit of a Clecomatic clutch shut-off nutrunner?
  A: The shut-off clutch stops the tool once the preset torque is reached. This helps operators maintain more consistent tightening results than a non-shut-off air tool that relies only on trigger control.
• Q: Is the Cleco 34RAA26AH3 an impact wrench?
  A: No. This is a clutch shut-off angle nutrunner for controlled fastening. It is not intended for high breakaway torque or removing severely stuck fasteners.
• Q: What does the 10 - 19 ft-lbs torque range mean?
  A: It means the tool can be adjusted within that working torque range for fastening applications. The exact setting should be matched to the joint, fastener size, and assembly requirement.
• Q: Why would I choose this 710 RPM model instead of a faster 34 Series nutrunner?
  A: In general, lower-speed models in a nutrunner family are used when the application requires higher torque output. The 34RAA26AH3 fits fastening jobs that need more torque than the faster, lower-torque 34 Series options.
• Q: What air setup should be used with this pneumatic nutrunner?
  A: Manufacturer data lists a 3/8" NPT air inlet, 5/16" minimum hose I.D., and 34 SCFM air consumption. A properly sized air line and Filter-Regulator-Lubricator help keep the tool supplied with clean, regulated, lubricated air.

Looking for more information about Cleco Nutrunner? Click here to view the Catalog

Need help selecting the correct Cleco Nutrunners for your application? Please call (800) 608-5210 or email info@intlairtool.com
