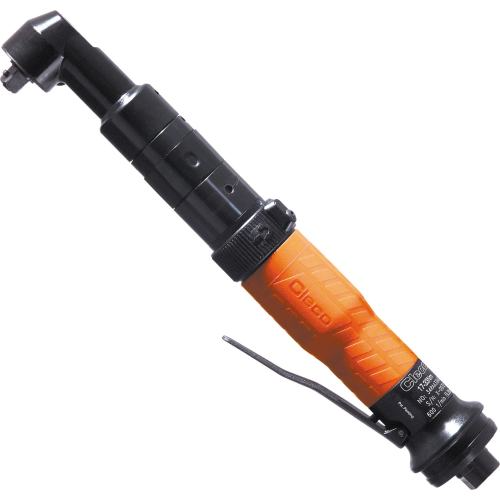

Cleco 34RAA28AH3 Clutch Shut-Off Pneumatic Angle Nutrunner | Lever Start | 580 RPM | 10 - 20 (ft-lbs) Torque Range | 3/8" Drive

Built for controlled socket fastening where clearance is limited, the Cleco 34RAA28AH3 clutch shut-off pneumatic angle nutrunner gives assembly and maintenance teams a 90-degree tool with a 3/8" square drive, 580 RPM free speed, and 10 - 20 ft-lbs torque range. The Clecomatic clutch shut-off mechanism automatically stops the tool when the preset torque is reached, helping improve repeatability on threaded fasteners compared with non-shut-off pneumatic tools that rely only on operator feel.

As part of Cleco’s 34 Series Clecomatic angle nutrunner lineup, the 34RAA28AH3 is suited for moderate-torque fastening on brackets, covers, equipment frames, fixtures, and production assemblies. Its 1.22" head height and 0.57" side-to-center distance help position sockets near edges, housings, and other obstacles, while the lever start gives the operator controlled activation during run-down and final tightening.

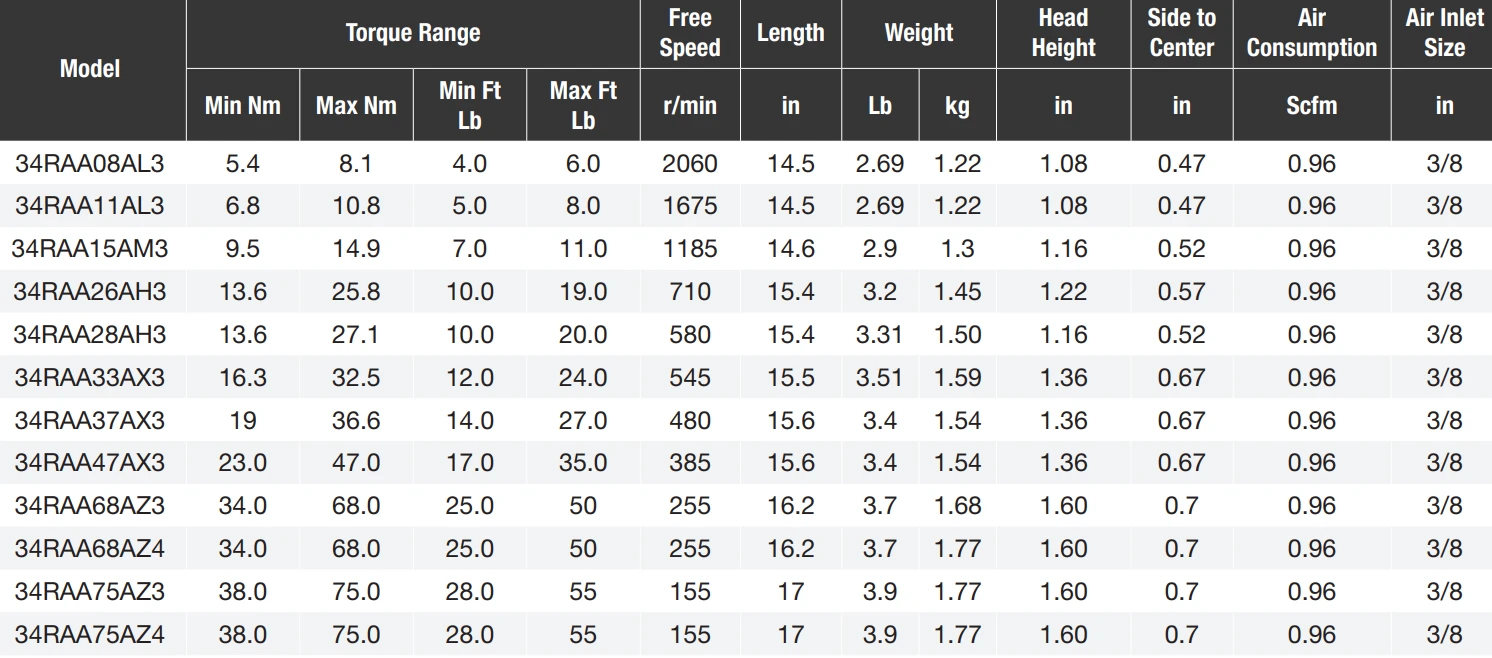

Type: Pneumatic Angle Nutrunner | Brand: Cleco | Model: 34RAA28AH3 | Series: 34 Series | Start Type: Lever Start | Clutch Type: Clecomatic Clutch Shut-Off | Direction: Reversible | Drive Size: 3/8" Square Drive | Torque Range: 10 - 20 ft-lbs / 14 - 28 Nm | Free Speed: 580 RPM | Overall Length: 15.4" / 390 mm | Weight: 3.3 lbs / 1.5 kg | Head Height: 1.22" / 31.0 mm | Side to Center: 0.57" / 14.4 mm | Air Inlet: 3/8" NPT | Minimum Hose I.D.: 5/16" | Air Consumption: 34 SCFM

Features:

• Clecomatic clutch shut-off supports repeatable torque control by stopping the tool at the adjusted torque setting.
• Angle head configuration helps reach fasteners near housings, rails, brackets, and fixture walls.
• Lever start provides controlled actuation for production fastening and maintenance service work.
• Reversible operation allows the tool to install or remove compatible fasteners within its working range.
• 3/8" square drive accepts matching square-drive sockets for nut and bolt fastening.
• 580 RPM free speed provides controlled run-down for applications that require more torque than faster, lower-torque models.
• Compact head geometry helps improve access when fasteners are close to surrounding components.

Made in USA:

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Manufacturing assembly: Tightening nuts, bolts, and subassembly fasteners where clutch shut-off torque control supports repeatable results.
• Automotive and transportation production: Installing brackets, guards, panels, and mounted components in moderate-torque fastening operations.
• Industrial maintenance and MRO: Servicing machinery, fixtures, conveyors, and equipment frames with controlled pneumatic fastening.
• Aerospace and precision assembly: Reaching fasteners in confined work areas where an angle head improves access and tool positioning.
• Bench and fixture workstations: Repeated socket fastening where speed, access, and preset torque shut-off are all required.

FAQs:

• Q: What type of work is the Cleco 34RAA28AH3 best suited for?
  A: It is best suited for controlled fastening within its 10 - 20 ft-lbs torque range. Common uses include production assembly, equipment service, bracket installation, fixture work, and other moderate-torque socket fastening tasks.
• Q: What does Clecomatic clutch shut-off do?
  A: Clecomatic clutch shut-off stops the tool once the preset torque is reached. This helps reduce over-tightening and supports more consistent fastening from one cycle to the next.
• Q: Can this tool replace an impact wrench?
  A: No. The 34RAA28AH3 is a controlled-torque nutrunner, not a high-breakaway impact wrench. Use it for repeatable fastening within its rated torque range, not for loosening severely seized bolts.
• Q: What sockets are compatible with this nutrunner?
  A: This model uses a 3/8" square drive, so it accepts compatible 3/8" drive sockets matched to the fastener size and job requirements.
• Q: What air supply information should be checked before installation?
  A: Manufacturer data lists a 3/8" NPT air inlet, 5/16" minimum hose I.D., and 34 SCFM air consumption. The air system should be sized to maintain clean, regulated, lubricated air at the tool during operation.

Looking for more information about Cleco Nutrunner? Click here to view the Catalog

Need help selecting the correct Cleco Nutrunners for your application? Please call (800) 608-5210 or email info@intlairtool.com
