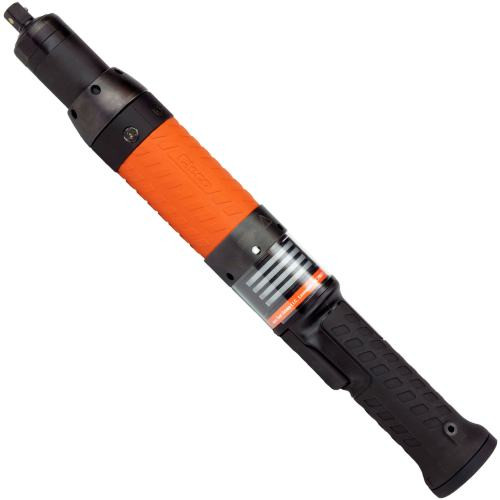

Cleco 30ESN26FC3 NeoTek Inline Corded Electric Nutrunner | 30 Series | 750 RPM | 3.7 - 19.1 (ft-lbs) Torque Range | 3/8" Square Drive

Built for controlled assembly fastening at the upper end of the NeoTek 30 Series range, the Cleco 30ESN26FC3 inline corded electric nutrunner delivers a 3.7 - 19.1 ft-lbs torque range for medium-torque production joints. Its 750 RPM speed gives assembly teams steady rundown control, while the 3/8" square drive accepts compatible sockets for nut-and-bolt fastening. As part of the NeoTek 30 Series, this tool is made for smart fastening systems where repeatability, feedback, and fastening data are important to the production process.

The inline body helps keep the tool aligned with the fastener in vertical, bench, or fixture-supported workstations. Transducer control means the nutrunner uses an internal sensing system to measure torque during the fastening cycle, giving quality-focused teams better process visibility than basic clutch-only tools. For plants that need controlled socket-driven fastening without moving into a larger tool platform, the 30ESN26FC3 offers a useful balance of torque capacity, speed, and workstation-friendly handling.

Type: Inline Corded Electric Nutrunner | Series: NeoTek 30 Series | Model: 30ESN26FC3 | Torque Range: 3.7 - 19.1 ft-lbs / 5.0 - 26.0 Nm | Speed: 750 RPM | Output Drive: 3/8" Square Drive

Features:

• NeoTek smart fastening platform supports programmable control for assembly stations that require repeatable tightening results.
• 1 million cycles maintenance-free rating helps reduce planned service interruptions in high-cycle production environments.
• Repeatability and accuracy with 2.0 Cm/Cmk at +/- 7% supports controlled torque performance on consistent joints.
• 21% lighter tool/cable system than the existing tool family helps reduce handling effort and cable drag during repeated fastening work.
• Digital communication supports reliable tool-to-controller performance with fewer conductors than previous cable systems.
• Internal temperature monitoring helps protect the tool during continuous production fastening cycles.
• Configurable LED light rings, audible alerts, and handle vibration provide clear operator feedback during the fastening process.
• On-board tool memory, data logging, and preventive maintenance alerts help track setup values, cycle counts, and service timing.

Made in USA:

Applications:

• Automotive assembly: tightening brackets, structural subassemblies, modules, and socket-driven fasteners within the 3.7 - 19.1 ft-lbs range.
• Industrial manufacturing: supporting controlled nut-and-bolt fastening where repeatability, cycle feedback, and traceability are part of the quality plan.
• Appliance and equipment production: fastening housings, supports, covers, and equipment frames that require moderate torque control.
• Aerospace and transportation workstations: managing safety-sensitive assembly tasks where consistent rundown and fastening data help support process control.
• Fixture-supported bench work: using the inline configuration for guided fastening, vertical rundown, and repetitive socket-driven assembly tasks.

FAQs:

• Q: How is the Cleco 30ESN26FC3 different from lower-torque NeoTek 30 Series models?
  A: This model provides a higher torque range at 3.7 - 19.1 ft-lbs, making it better suited to medium-torque socket fastening within the 30 Series. Lower-torque models may run faster, but this SKU gives more tightening capacity for larger or more resistant joints.
• Q: What does the 3/8" square drive fit?
  A: The 3/8" square drive is made for compatible 3/8" drive sockets and socket accessories. It is commonly used for nut-and-bolt assembly rather than direct 1/4" hex bit fastening.
• Q: What does transducer control mean on this tool?
  A: Transducer control means the tool measures torque through an internal sensing system during the fastening cycle. This helps production teams monitor fastening results and maintain better process control than basic mechanical clutch tools.
• Q: Does this nutrunner need a Cleco controller?
  A: NeoTek corded electric nutrunners are part of a controlled fastening system and are typically used with a compatible Cleco controller and cable. Confirm controller, cable, and software compatibility before ordering for an existing workstation.
• Q: Is this tool intended for removing stuck bolts?
  A: No. The 30ESN26FC3 is a precision assembly nutrunner for controlled tightening, not an impact wrench or repair tool. Use an impact wrench or service tool for breakaway work on stuck or corroded fasteners.
