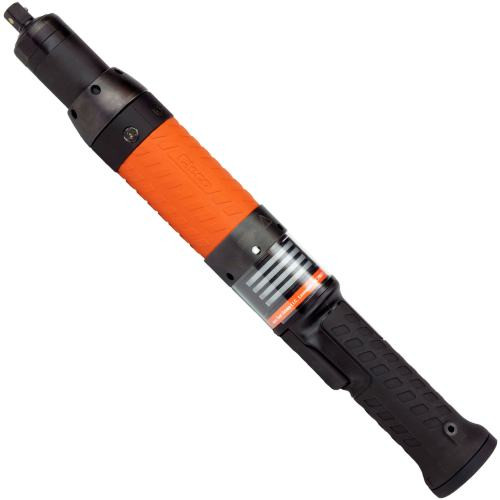

Cleco 30ESN05BDQ NeoTek Inline Corded Electric Nutrunner | 30 Series | 4275 RPM | 0.6 - 3.4 (ft-lbs) Torque Range | 1/4" Quick Change

Built for controlled low-torque fastening in production environments, the Cleco 30ESN05BDQ NeoTek Inline Corded Electric Nutrunner delivers a 0.6 - 3.4 ft-lbs torque range for small fasteners that require repeatable tightening rather than impact-style breakaway power. Its 4,275 RPM free speed helps reduce cycle time during fast rundown, while the inline body supports straight-on access at assembly benches, fixture stations, and repetitive fastening cells.

Part of the Cleco NeoTek 30 Series, this corded electric nutrunner uses transducer control, meaning torque is measured electronically during fastening for improved process verification when used with the proper Cleco controller setup. The 1/4" quick change output is suited for compatible hex drive bits and adapters, giving assembly teams a practical option for jobs that require fast bit changes, controlled torque, and operator feedback in a precision fastening system.

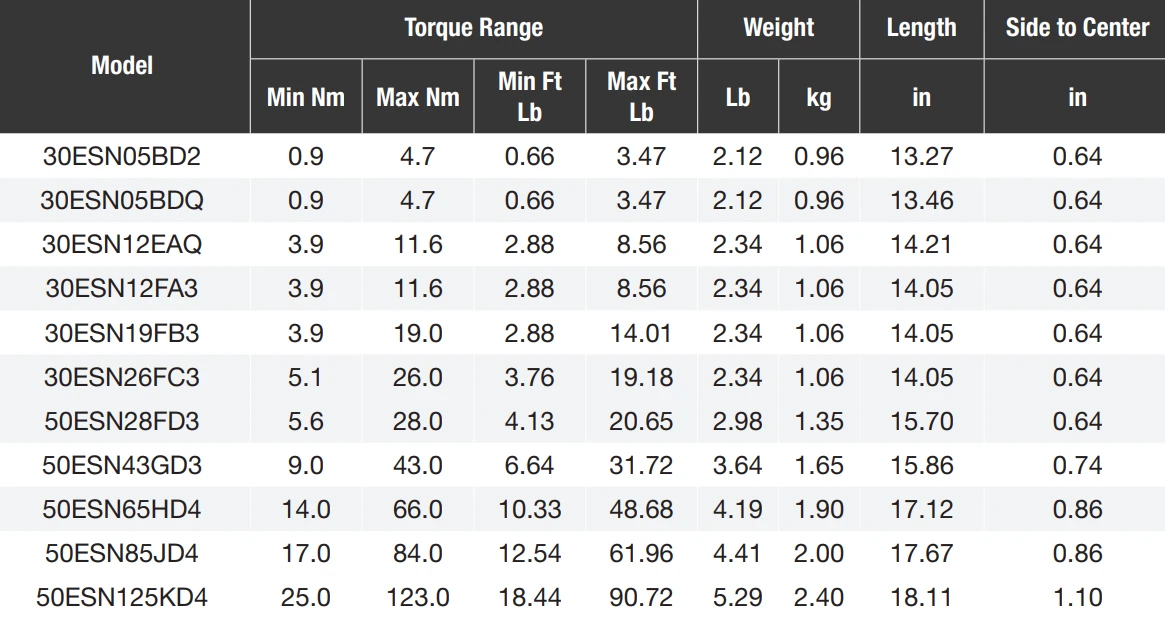

Type: Inline Corded Electric Nutrunner | Brand: Cleco | Series: NeoTek 30 Series | Model: 30ESN05BDQ | Control Type: Transducer Control | Torque Range: 0.9 - 4.7 Nm / 0.6 - 3.4 ft-lbs | Free Speed: 4,275 RPM | Output Drive: 1/4" Quick Change | Weight: 0.96 kg / 2.12 lb | Length: 337 mm / 13.26" | Side to Center: 16.3 mm / 0.64"

Features:

• Transducer control measures torque electronically to support precision fastening and process-controlled assembly.
• NeoTek platform is rated for 1 million cycles maintenance-free, helping production teams reduce scheduled service interruptions.
• Repeatability and accuracy of 2.0 Cm/Cmk at +/- 7% supports consistent fastening results across repetitive low-torque applications.
• 1/4" quick change output allows compatible bits or adapters to be changed quickly during assembly tasks.
• Configurable LED light rings provide visual operator feedback for fastening status, batch progress, or tool prompts when set up through the controller system.
• Tactile and audible feedback helps the operator identify tool events without relying only on the controller display.
• Programmable multi-function buttons allow the tool interface to be adapted to the fastening process or workstation layout.
• Inline configuration supports straight-access fastening where compact tool alignment and repeatable positioning are important.

Made in USA:

Applications:

• Electronics and electromechanical assembly: Installing low-torque fasteners on housings, brackets, internal assemblies, and compact components.
• Appliance production: Repetitive fastening on panels, covers, supports, and light-duty hardware where quick bit changes improve workflow.
• Automotive subassembly: Controlled tightening of small fasteners on trim-related parts, modules, brackets, and light production assemblies.
• General manufacturing: Production-line fastening where torque verification, operator feedback, and corded electric tool control are required.
• Fixture-mounted workstations: Assembly cells that use straight-on fastening access and benefit from programmable tool behavior.

FAQs:

• Q: What is the difference between the 30ESN05BDQ and a square-drive version?
  A: The 30ESN05BDQ has a 1/4" quick change output for compatible bits and adapters. A square-drive version is intended for sockets. Choose the drive style that matches the fastener access and tooling used at the workstation.
• Q: What does the 0.6 - 3.4 ft-lbs torque range mean?
  A: This is the controlled fastening range of the tool. It is suited for small fasteners that need repeatable tightening, not for loosening stuck bolts or high-torque maintenance work.
• Q: What does transducer control do?
  A: Transducer control electronically measures torque during the fastening cycle. This helps the system verify that the tool reached the intended torque target when paired with the appropriate Cleco controller.
• Q: Does this Cleco NeoTek nutrunner require compressed air?
  A: No. This is a corded electric nutrunner, so it does not use compressed air, an air hose, or an FRL. It is intended for Cleco NeoTek electric fastening systems.
• Q: Is this tool appropriate for home garage or general repair work?
  A: This model is better matched to manufacturing and assembly operations than general repair. Buyers looking for a shop tool to remove or tighten common automotive fasteners should consider an impact wrench, ratchet, or standard cordless driver instead.

Looking for more information about Cleco Nutrunner? Click here to view the Catalog

Need help selecting the correct Cleco Nutrunners for your application? Please call (800) 608-5210 or email info@intlairtool.com
