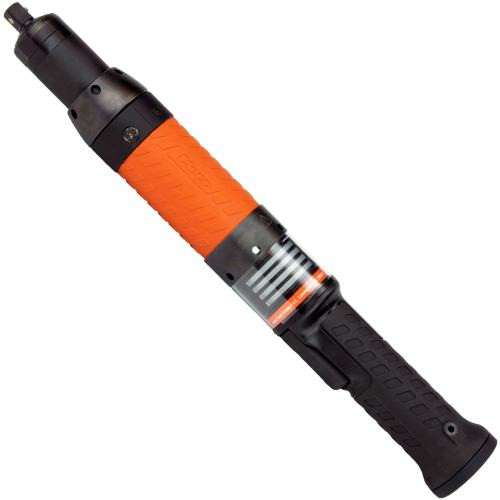

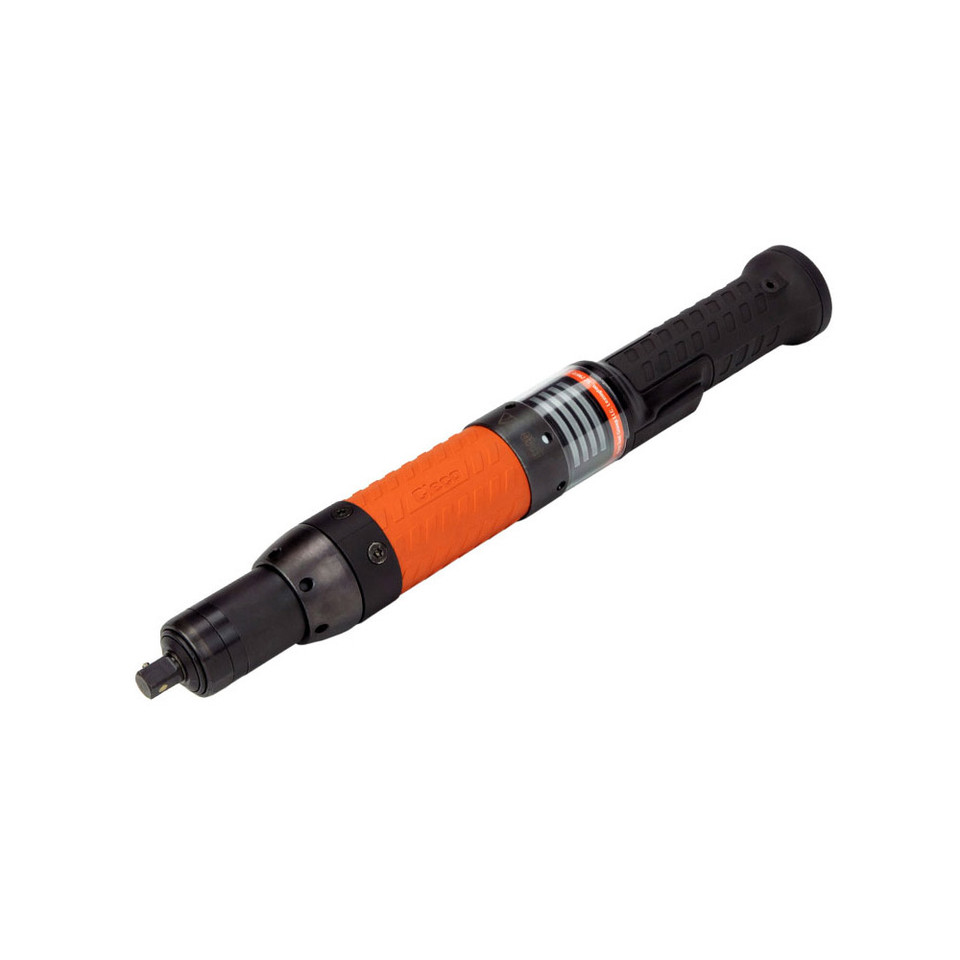

Cleco 30ESN12FA3 NeoTek Inline Corded Electric Nutrunner | 30 Series | 1650 RPM | 2.8 - 8.5 (ft-lbs) Torque Range | 3/8" Square Drive

Built for mid-range precision fastening on controlled assembly lines, the Cleco 30ESN12FA3 NeoTek Inline Corded Electric Nutrunner delivers a 2.8 - 8.5 ft-lbs torque range for small-to-medium fasteners that require verified tightening rather than impact force. Its 1,650 RPM free speed provides fast rundown before final torque, helping operators keep cycle times consistent on repetitive production work.

As part of the Cleco NeoTek 30 Series, this inline corded electric nutrunner uses transducer control, meaning torque is measured electronically during the fastening cycle for improved process verification when paired with the correct Cleco controller system. The 3/8" square drive is suited for compatible sockets used on nuts and bolts, while the inline configuration supports straight-access fastening in bench assembly, fixture-mounted workstations, and production cells where controlled torque output is critical.

Type: Inline Corded Electric Nutrunner | Brand: Cleco | Series: NeoTek 30 Series | Model: 30ESN12FA3 | Control Type: Transducer Control | Torque Range: 3.9 - 11.6 Nm / 2.88 - 8.56 ft-lbs | Free Speed: 1,650 RPM | Output Drive: 3/8" Square Drive | Weight: 1.06 kg / 2.34 lb | Length: 357 mm / 14.06" | Side to Center: 16 mm / 0.64"

Features:

• Transducer control electronically measures fastening torque to support precision assembly and traceable production processes.
• NeoTek platform is rated for 1 million cycles maintenance-free when used within the recommended tool model torque range.
• Repeatability and accuracy of 2.0 Cm/Cmk at +/- 7% supports consistent torque results across controlled fastening operations.
• 3/8" square drive output accepts compatible sockets for nut and bolt fastening applications.
• Configurable LED light rings provide visual operator feedback for fastening status, batch counts, or process prompts when programmed through the controller system.
• Tactile and audible operator feedback helps confirm tool events in active production environments.
• Programmable multi-function buttons allow the tool interface to be tailored to the fastening strategy or workstation setup.
• Inline body style supports straight-on access where tool alignment, compact geometry, and repeatable positioning matter.

Made in USA:

Applications:

• Automotive assembly: Controlled tightening of brackets, module hardware, light structural fasteners, and subassembly components requiring verified torque.
• Appliance manufacturing: Repetitive nut and bolt fastening on housings, panels, supports, and internal assemblies.
• Industrial production lines: Mid-range torque fastening where process control, operator feedback, and repeatable results are required.
• Electromechanical assembly: Socket-driven fastening on compact assemblies where torque verification helps reduce rework and fastening variation.
• Fixture-mounted workstations: Straight-access fastening cells that benefit from inline tool geometry and controller-based fastening programs.

FAQs:

• Q: What is the Cleco 30ESN12FA3 used for?
  A: The 30ESN12FA3 is used for controlled production fastening on small-to-medium nuts and bolts. It is best suited for assembly environments where torque accuracy and fastening verification are more important than high breakaway power.
• Q: What does the 3/8" square drive fit?
  A: The 3/8" square drive is made for compatible 3/8" drive sockets. It is not the same as a quick-change hex bit holder, so buyers should choose this model when the application uses sockets rather than insert bits.
• Q: What does transducer control mean on this Cleco nutrunner?
  A: Transducer control means the tool electronically measures torque during the fastening cycle. This allows the fastening system to confirm whether the joint reached the programmed torque target when used with the correct Cleco controller.
• Q: Is the 30ESN12FA3 an impact wrench?
  A: No. This is a precision electric nutrunner for controlled tightening. It is not intended for loosening seized fasteners or performing general maintenance work like an impact wrench.
• Q: Does this model require compressed air?
  A: No. The 30ESN12FA3 is a corded electric assembly tool, so it does not require an air compressor, air hose, or FRL. It should be matched with the appropriate Cleco NeoTek controller and system accessories.
