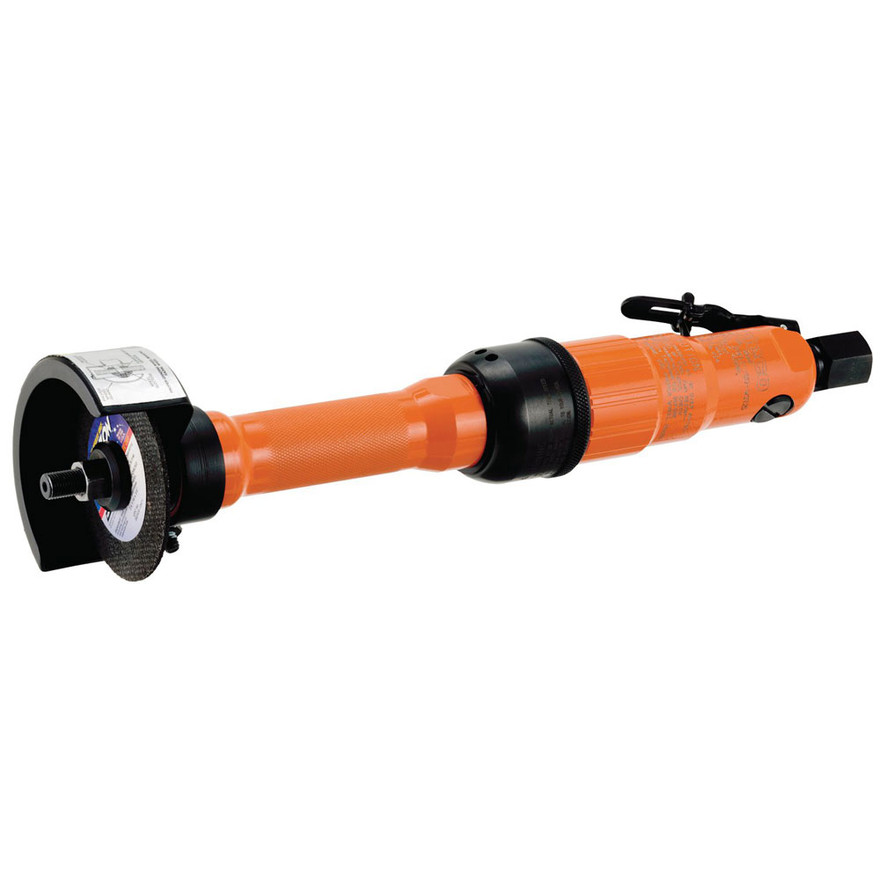

Cleco 25GELC-120-W3T3 Cut-off Wheel Extended Horizontal Grinder | 25 Series | 1.4 HP | 12,000 RPM | Aluminum Housing | Side Exhaust

When a cut-off job requires more reach than a compact grinder can provide, the Cleco 25GELC-120-W3T3 Cut-off Wheel Extended Horizontal Grinder gives maintenance and fabrication teams a controlled pneumatic cutting tool for recessed, obstructed, and fixture-heavy work areas. This 25 Series model runs at 12,000 RPM for use with properly rated Type 1 cut-off wheels, while the 3" wheel capacity provides more cutting depth than the 2-1/2" version without stepping into a larger wheel platform. Its 1.4 HP motor helps keep the wheel moving through routine metal cutting, trimming, and separation tasks.

The extended horizontal body keeps the abrasive in line with the cut path and gives the operator added reach into frames, brackets, weldments, and mounted assemblies. A 3/8"-24 external thread spindle supports compatible cut-off wheel mounting hardware, and the side exhaust helps direct discharged air away from the front of the tool. Built with an aluminum housing, the 25GELC-120-W3T3 weighs 3.7 lbs. and measures 14.4" overall length, making it a practical choice for shops that need cutting access without moving up to a bulkier grinder.

Type: Cut-off Wheel Extended Horizontal Grinder | Series: Cleco 25 Series | Model: 25GELC-120-W3T3 | Wheel Capacity: 3" / 75 mm Type 1 | Power: 1.4 HP / 1.0 kW | Free Speed: 12,000 RPM | Spindle Size: 3/8"-24 External Thread | Housing: Aluminum | Exhaust: Side | Weight: 3.7 lbs. / 1.7 kg | Overall Length: 14.4" / 368 mm | Air Inlet: 3/8" NPT | Air Consumption: 12 CFM

Features:

• Extended horizontal grinder layout improves access into recessed cutting locations, mounted assemblies, and fixture-constrained work areas.
• 3" Type 1 cut-off wheel capacity provides more reach and cut depth than smaller 2-1/2" cut-off configurations.
• Governor speed control maintains RPM under load for steadier cutting performance during pneumatic operation.
• Safety-lock throttle lever helps prevent accidental start-up while positioning, carrying, or staging the grinder.
• Aluminum housing keeps the tool manageable while supporting regular use in shop, plant, and repair environments.
• Side exhaust directs air away from the front of the tool to help keep the work path more controlled.
• W3T3 cut-off configuration includes guard for use with compatible 3" Type 1 wheels.

Made in USA:

Applications:

• Metal fabrication and weld shops — cutting tabs, trimming brackets, separating small stock, and cleaning up metal assemblies.
• Industrial maintenance and MRO — reaching into installed equipment, frames, panels, and fixtures where shorter tools limit access.
• Automotive, fleet, and equipment repair — cutting clamps, service hardware, exhaust components, and sheet metal sections with a properly rated abrasive.
• Production and assembly support — controlled cut-off work on jigs, fixtures, process parts, and repair stations.
• Garage and workshop metal repair — general cutting tasks where the user has the correct air supply, wheel rating, guard, and protective equipment.

FAQs:

• Q: What wheel size does the Cleco 25GELC-120-W3T3 use?
  A: This grinder is specified for 3" / 75 mm Type 1 cut-off wheels. The wheel must match the tool’s guard, spindle hardware, wheel type, and RPM requirement before use.
• Q: How is the W3T3 version different from the W3T25 version?
  A: The W3T3 configuration is for 3" Type 1 cut-off wheels, while the W3T25 configuration is for 2-1/2" Type 1 cut-off wheels. Choose the 3" version when the application needs slightly more cut depth or wheel reach.
• Q: What does 3/8"-24 external thread mean?
  A: This is the spindle thread used to connect the wheel mounting hardware. Only compatible flanges, adapters, and cut-off wheels rated for the tool speed and application should be used.
• Q: Why choose an extended horizontal grinder?
  A: The extended body helps place the wheel farther into recessed or obstructed areas while keeping the operator’s hand position back from the cut. This can be useful around frames, brackets, welded structures, and mounted components.
• Q: Can this grinder run any wheel rated above 12,000 RPM?
  A: No. The abrasive must equal or exceed the tool’s 12,000 RPM speed rating and also match the required Type 1 wheel configuration, diameter, guard, and mounting method. Never use saw blades or non-reinforced grinding wheels on this tool.
