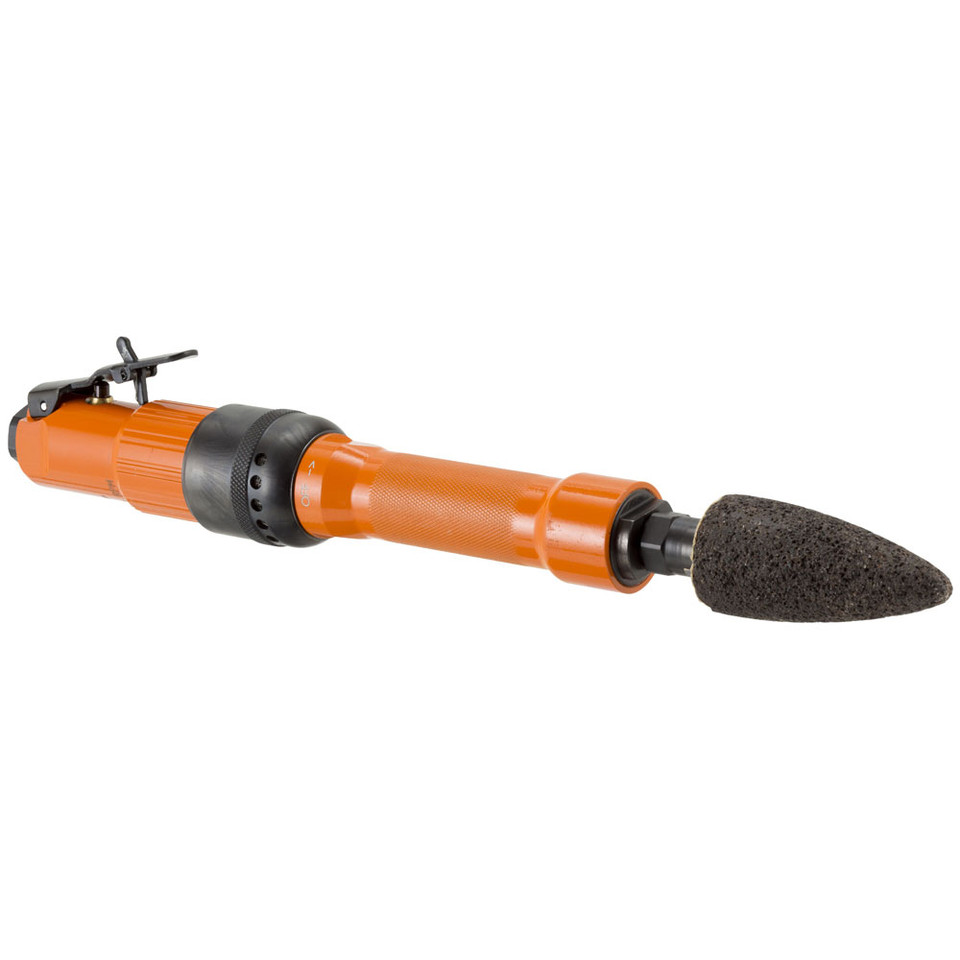

Cleco 25GELC-180-P5T Extended Horizontal Grinder | 25 Series | 1.4 HP | 18,000 RPM | Aluminum Housing | Side Exhaust

Built for extended-reach cone and plug wheel grinding in fabrication, foundry, rail, and shipyard environments, the Cleco 25GELC-180-P5T extended horizontal grinder delivers 1.4 HP with an 18,000 RPM free speed for fast material removal on compatible abrasives. The 5/8"-11 external threaded spindle is intended for matching cone or plug wheels, giving buyers a threaded-spindle option when collet-mounted burrs are not the right abrasive style for the job.

The extended 14.9" overall length helps place the abrasive deeper into castings, welded assemblies, machinery housings, and other recessed work areas where shorter grinders can limit access. Its governed motor helps maintain RPM under load, while the side exhaust routes discharge air away from the immediate grinding point. With an aluminum housing and approximately 3.2 lb tool weight, this 25 Series Cleco grinder is suited for production grinding, localized blending, and controlled cleanup work with compatible 2" cone or plug wheels.

Type: Extended Horizontal Grinder | Series: 25 Series | Model: 25GELC-180-P5T | Power: 1.4 HP / 1.0 kW | Free Speed: 18,000 RPM | Spindle Size: 5/8"-11 External Thread | Abrasive Capacity: 2" / 50 mm Cone or Plug Wheel | Exhaust: Side | Housing: Aluminum | Weight: 3.2 lb / 1.45 kg | Overall Length: 14.9" / 379 mm | Air Inlet Size: 3/8" NPT | Minimum Hose I.D.: 3/8" / 9.5 mm | Air Pressure: 90 PSI / 620 kPa

Features:

• 5/8"-11 external threaded spindle supports compatible cone and plug wheels for localized grinding, edge dressing, and blending work.
• Extended horizontal body improves access into deep castings, recessed weldments, fabricated frames, and obstructed grinding locations.
• Governor speed control maintains RPM under load for steadier abrasive contact during production grinding.
• 1.4 HP motor provides the power needed for controlled material removal with compatible 2" cone or plug wheels.
• Rugged and durable aluminum housing supports regular use in fabrication, foundry, rail, and maintenance environments.
• Side exhaust directs discharge air away from the immediate grinding point and operator grip area.
• Safety-lock throttle lever helps prevent accidental start-up during tool handling, repositioning, or abrasive changes.

Made in USA:

Applications:

• Foundry and casting cleanup — removing flash, parting lines, riser marks, and surface imperfections with compatible cone or plug wheels.
• Metal fabrication — blending welds, dressing edges, and reaching into fabricated structures where a compact grinder may not provide enough access.
• Rail and transportation maintenance — localized grinding on steel brackets, frames, and equipment components that require reach and abrasive wheel control.
• Shipyard and marine repair — cleaning weld areas, working around structural steel, and grinding in recessed or obstructed spaces.
• Industrial MRO — maintaining fixtures, housings, welded assemblies, and plant equipment with a high-speed pneumatic grinder.

FAQs:

• Q: What is the difference between the P5T and P3T versions?
  A: The P5T version uses a 5/8"-11 external threaded spindle, while the P3T version uses a 3/8"-24 external threaded spindle. Choose the version that matches the thread size required by your compatible cone or plug wheels.
• Q: What abrasive style is this grinder built for?
  A: This model is listed for 2" cone or plug wheels. It is not a 1/4" collet grinder, so it should be matched with compatible threaded abrasives rather than standard shank-mounted burrs.
• Q: Why choose an extended horizontal grinder instead of a shorter model?
  A: The longer body helps reach deeper into castings, housings, weldments, and fabricated assemblies. This can make grinding more controlled when the workpiece prevents the operator from getting close to the contact point.
• Q: What does governed speed control do?
  A: Governed speed control helps the tool maintain RPM when grinding pressure is applied. That steadier speed can improve abrasive contact and reduce the speed drop that can occur when the wheel is under load.
• Q: What air setup should be used with the 25GELC-180-P5T?
  A: This grinder is performance rated at 90 PSI / 620 kPa and requires a 3/8" minimum hose I.D. Use a properly sized air line and FRL to help support airflow, pressure regulation, moisture removal, and lubrication.
