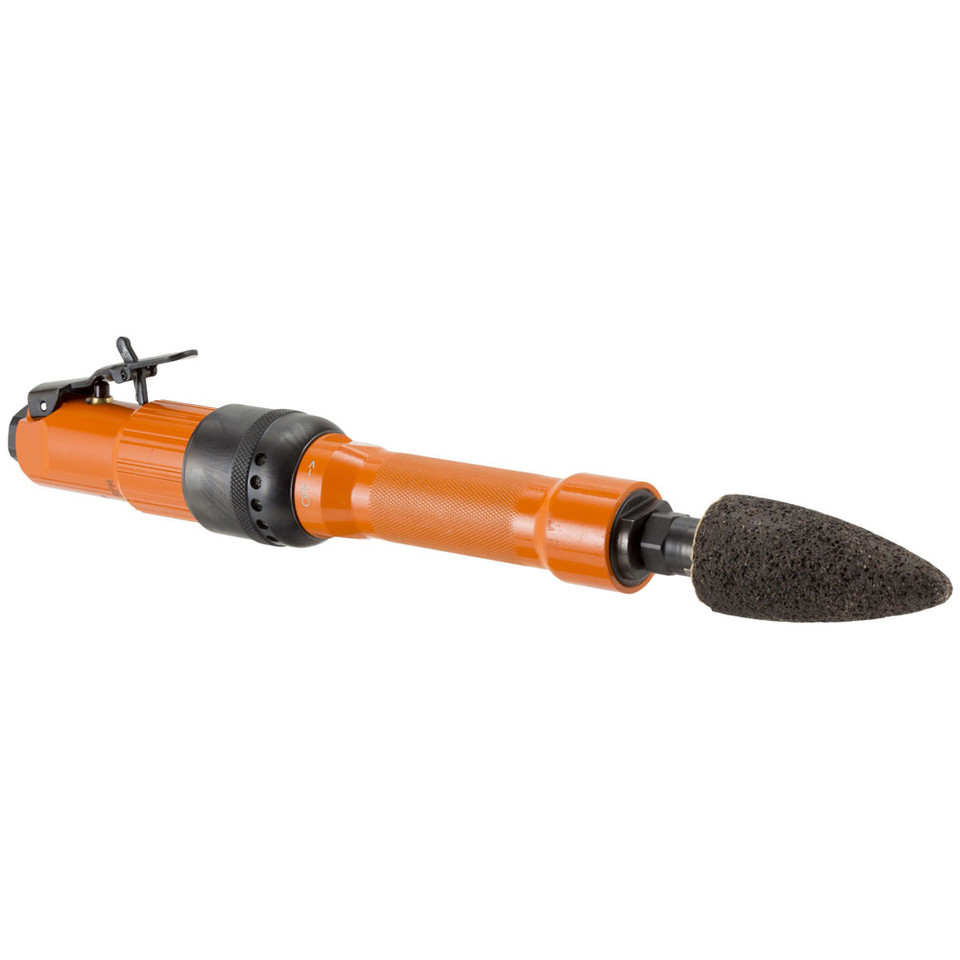

Cleco 25GELC-180-P3T Extended Horizontal Grinder | 25 Series | 1.4 HP | 18,000 RPM | Aluminum Housing | Side Exhaust

Built for cone and plug wheel grinding in fabrication, foundry, rail, and shipyard environments, the Cleco 25GELC-180-P3T extended horizontal grinder delivers 1.4 HP with an 18,000 RPM free speed for fast material removal on compatible abrasives. The horizontal grinder configuration uses a 3/8"-24 external threaded spindle, which is intended for matching cone or plug wheels rather than collet-mounted burrs, giving buyers a clear spindle option for 2" abrasive wheel work.

The extended 14.5" overall length helps reach into deep castings, fabricated frames, recessed weldments, and machinery housings where shorter grinders may limit access. Its governed motor helps maintain RPM under load, while the side exhaust directs discharge air away from the immediate work area. With an aluminum housing and approximately 3.0 lb tool weight, this 25 Series Cleco grinder gives production teams a high-speed, extended-reach option for controlled grinding and blending with compatible cone or plug wheels.

Type: Extended Horizontal Grinder | Series: 25 Series | Model: 25GELC-180-P3T | Power: 1.4 HP / 1.0 kW | Free Speed: 18,000 RPM | Spindle Size: 3/8"-24 External Thread | Abrasive Capacity: 2" Cone or Plug Wheel | Exhaust: Side | Housing: Aluminum | Weight: 3.0 lb / 1.36 kg | Overall Length: 14.5" / 368 mm | Air Inlet Size: 3/8" NPT | Minimum Hose I.D.: 3/8" | Air Pressure: 90 PSI / 620 kPa

Features:

• 3/8"-24 external threaded spindle supports compatible cone and plug wheels for localized grinding and blending.
• Extended horizontal body improves reach into recessed areas, deep castings, weldments, and obstructed grinding locations.
• Governor speed control maintains RPM under load for steadier abrasive contact during production grinding.
• 1.4 HP motor provides the power needed for controlled material removal with 2" cone or plug wheels.
• Rugged and durable aluminum housing supports regular use in metalworking and industrial maintenance environments.
• Side exhaust helps route discharge air away from the operator and the immediate grinding point.
• Safety-lock throttle lever helps prevent accidental start-up during tool handling, repositioning, or abrasive changes.

Made in USA:

Applications:

• Foundry and casting cleanup — grinding flash, riser marks, parting lines, and internal casting surfaces with compatible cone or plug wheels.
• Metal fabrication — blending welds, dressing edges, and reaching into fabricated assemblies where a compact grinder may not fit cleanly.
• Rail yard maintenance — localized grinding on brackets, frames, and steel components that require both reach and abrasive wheel access.
• Shipyard and marine repair — cleaning weld areas, blending structural steel, and performing controlled grinding in recessed or obstructed spaces.
• Industrial MRO — maintaining fixtures, machinery housings, welded structures, and plant equipment with a high-speed pneumatic grinder.

FAQs:

• Q: What is the difference between the P3T and C4 versions?
  A: The P3T version uses a 3/8"-24 external threaded spindle for compatible cone or plug wheels. The C4 version uses a 1/4" collet for compatible burrs and mounted abrasives, so accessory style is the key selection difference.
• Q: What does the 2" cone or plug wheel capacity mean?
  A: It means the grinder is intended for compatible cone or plug wheels up to the manufacturer’s listed 2" capacity. Always match the wheel thread, diameter, and maximum RPM rating to the tool before use.
• Q: Why choose an extended horizontal grinder?
  A: The extended body helps place the abrasive deeper into castings, housings, frames, and welded assemblies. This can reduce awkward tool angles when the workpiece blocks access to the grinding point.
• Q: What does governed speed control do?
  A: Governed speed control helps maintain tool RPM when the abrasive is under load. This supports steadier cutting behavior compared with a grinder that drops speed quickly when pressure is applied.
• Q: What air setup is recommended for this grinder?
  A: This tool is rated at 90 PSI / 620 kPa and uses a 3/8" NPT air inlet with a 3/8" minimum hose I.D. Use a properly sized air line and FRL to help maintain airflow, pressure control, and lubrication.
